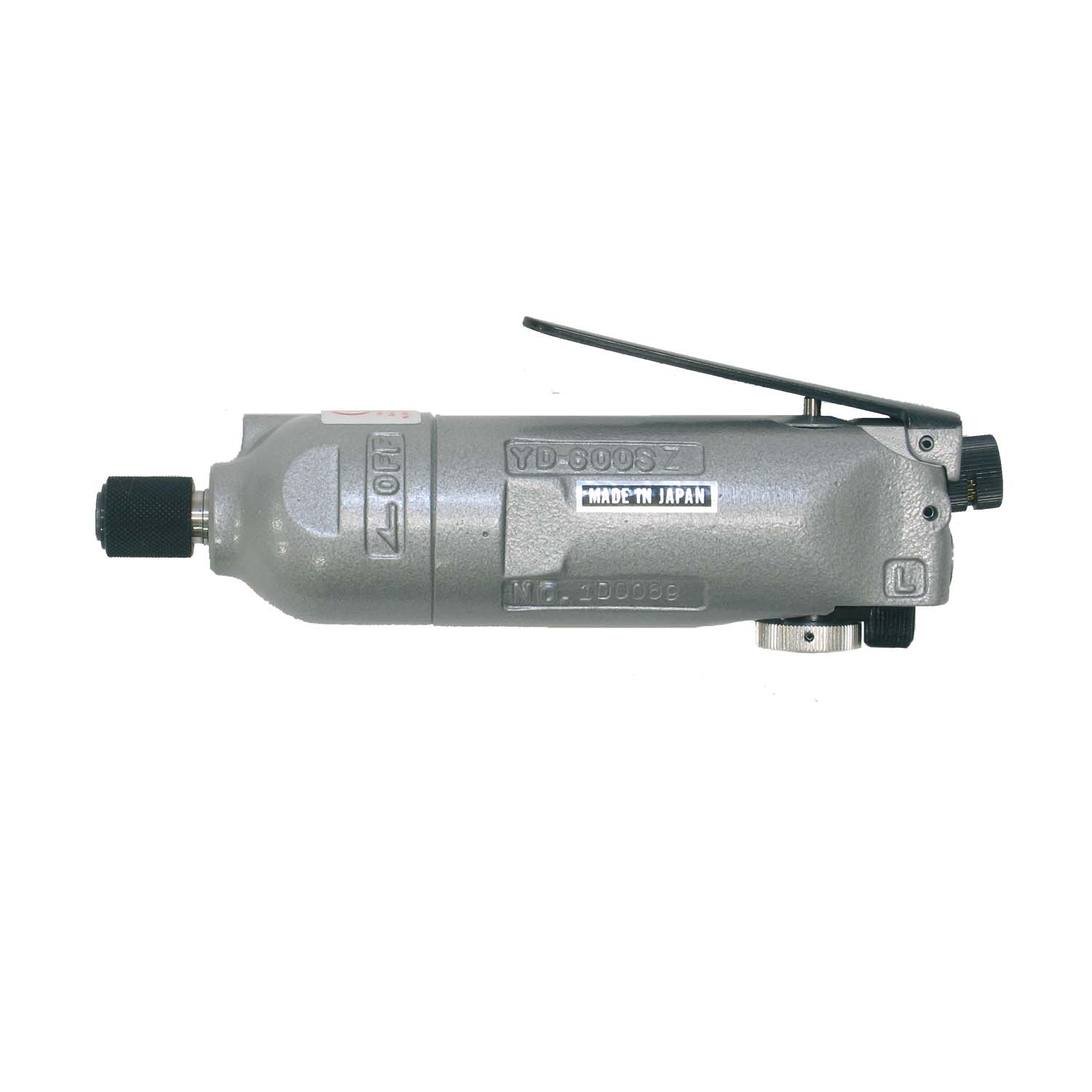

This Yokota screwdriver is developed for assembly in wood-working and furniture-industry. It has a 2-hammer clutch for powerfull operation.
Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* Power adjustable in 4 positions
* Exhaust through isolated grip, with silencer
* Free of reaction forces
Related products
AC30A-F03E-B
Modular FRL Unit
HTB-0
Spring Balancer Hosereel
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Bolt capacity (mm) | 6 |
| RPM | 7500 |
| Torque (Nm) | 37 |
| Airconsumption (l/s) | 5,0 |
| Weight (kg) | 0,95 |
| Hexagon | 1/4" |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

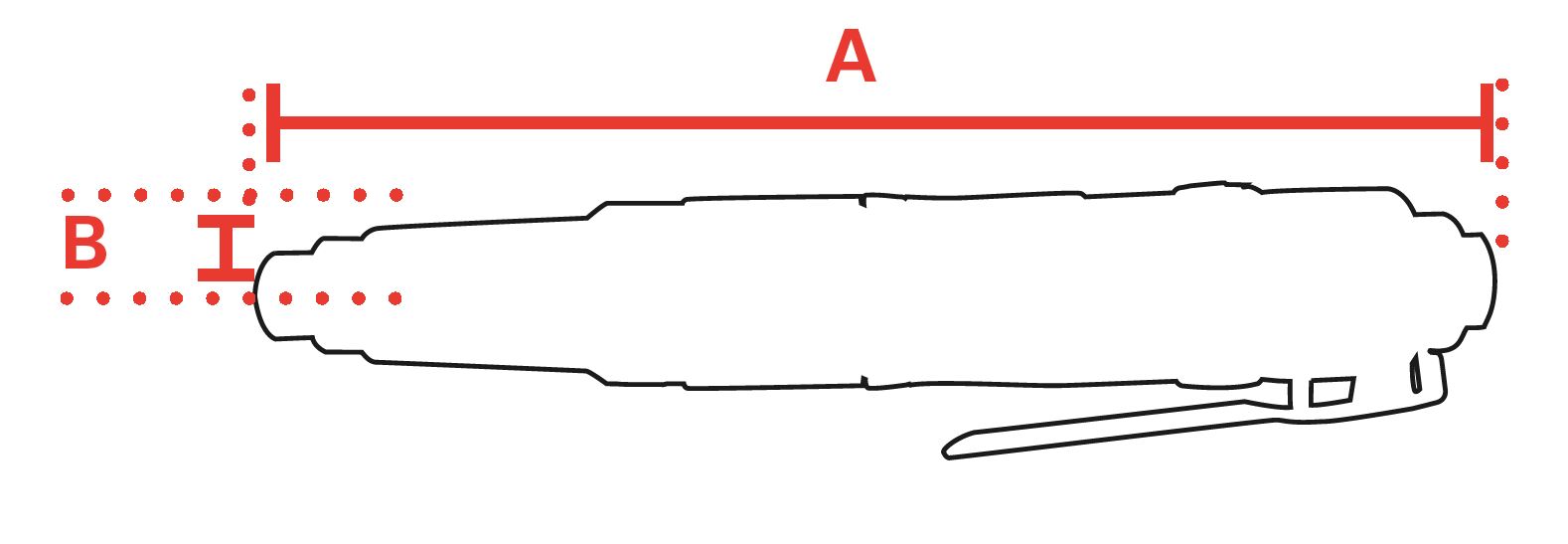

| mm A | 206 |
| mm B | 23 |
| Hosediameter (mm) | 6,5 |
| Execution | Recht |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 6,6 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 90 |
| Sound power (dB(A)) | 101 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981000708 |
