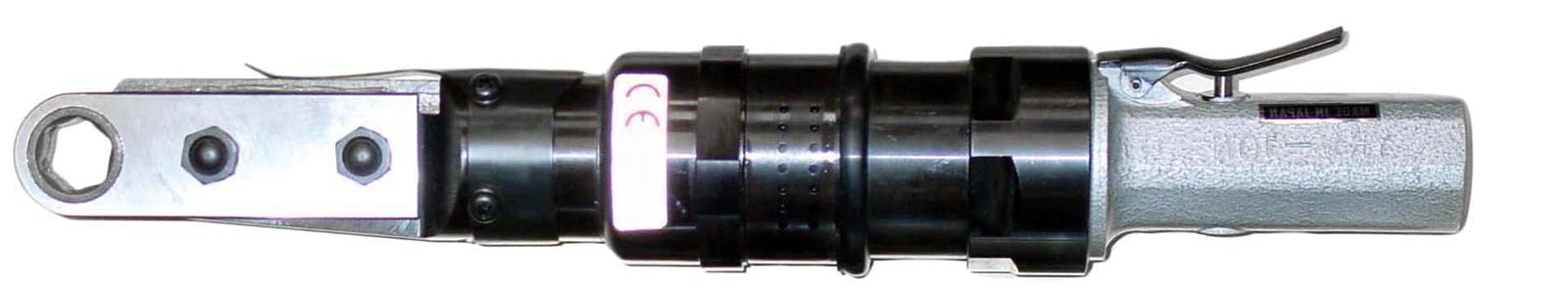

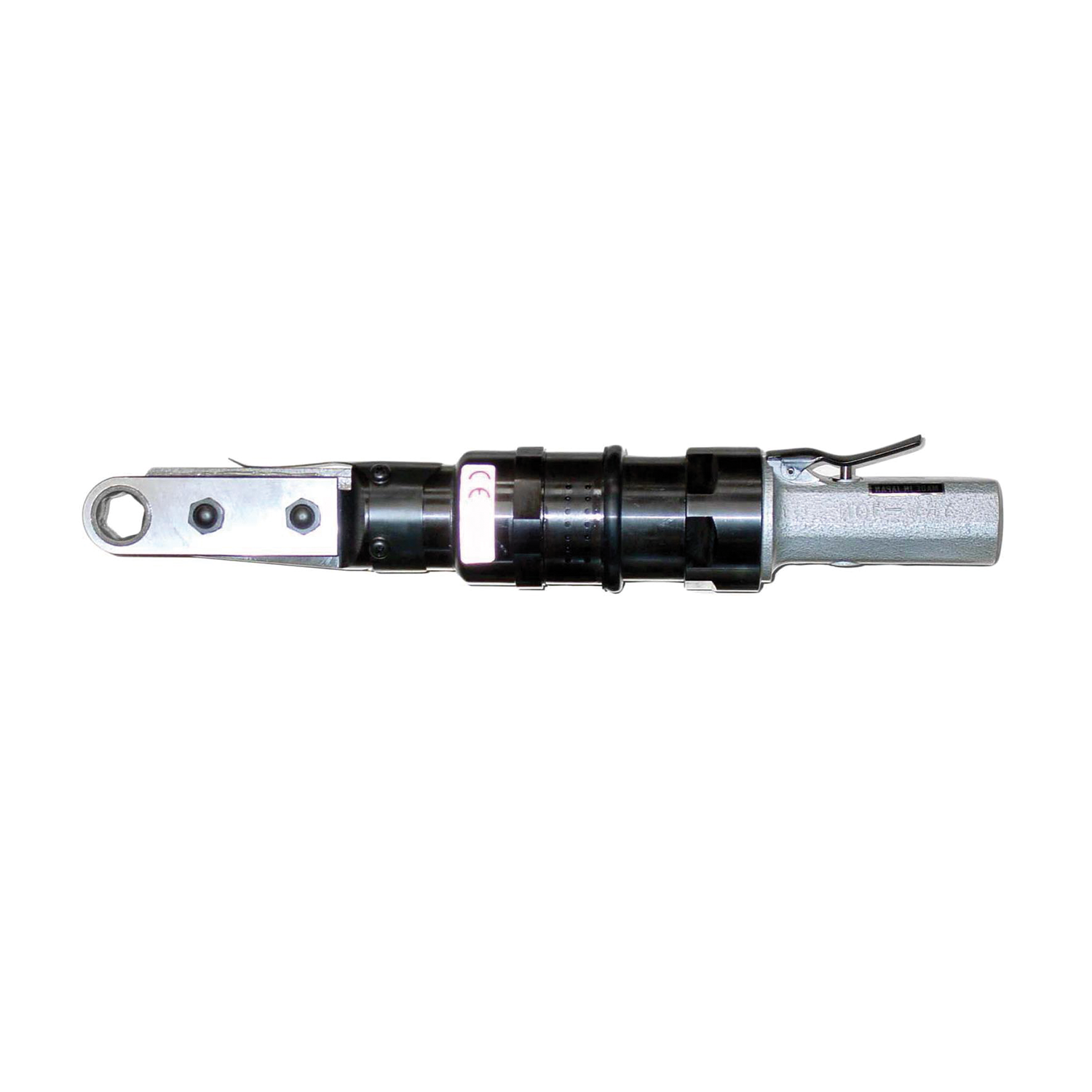

This air-ratchet wrench of Yokota is devellopped for use in the assembly-industry. Use for limited accessibility, where angle nutrunners can not be used due to the height of the angle-head. By rotating the complete tool 180 degrees, they can also be used to untighten the joint.
Characteristics:
* Compact and lightweight
* The tool can be delivered with 14 or 17mm socket, please indicate in your order.
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Bolt capacity (mm) | 10 |
| RPM | 140 |
| Torque (Nm) | 45 |
| Airconsumption (l/s) | 11,6 |
| Weight (kg) | 2,65 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

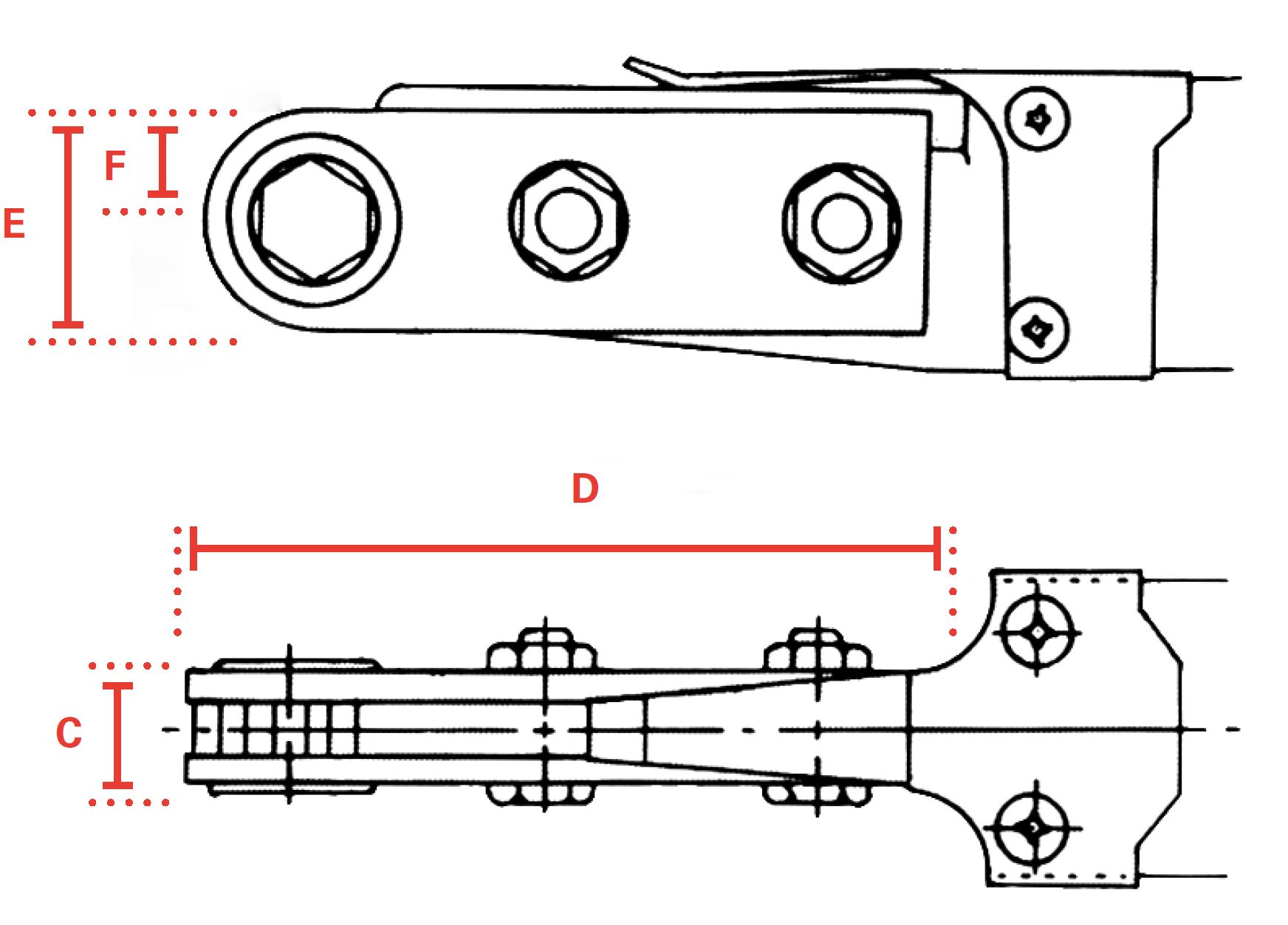

| mm A | 388 |
| mm B | 18 |
| mm C | 18 |
| mm D | 108 |
| mm E | 33 |
| mm F | 16,5 |
| Hosediameter (mm) | 10 |
| A/F (mm) | 14, 17 mm* |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 2,9 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 85 |
| Sound power (dB(A)) | 96 |
| EAN | 8717981009237 |
Manuals
| YRW-10N-DE.pdf | Download |
| YRW-10N-NL.pdf | Download |
| YRW-10N-EN.pdf | Download |
| YRW-10N-FR.pdf | Download |
| YRW-10N - QR Card.pdf | Download |
