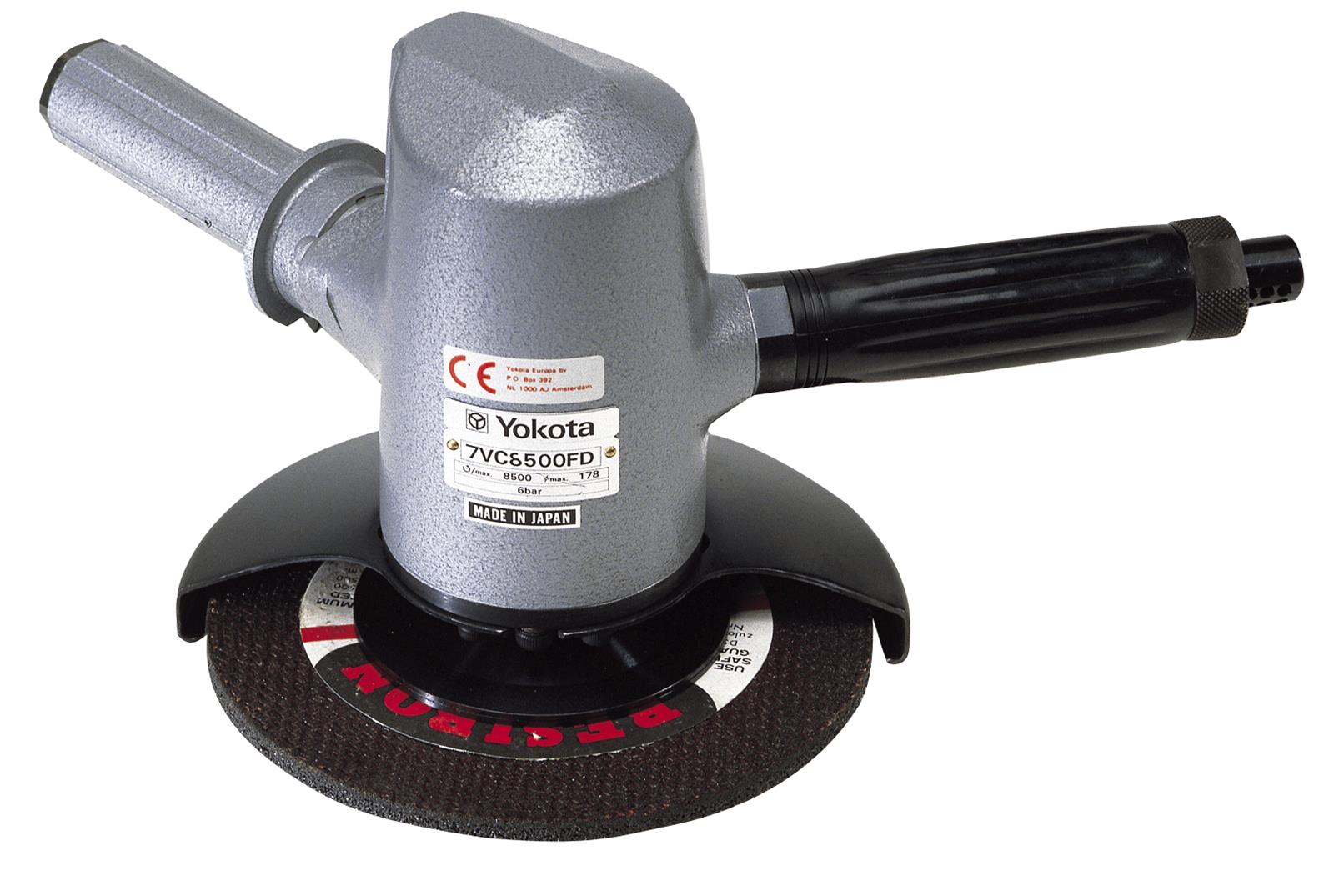

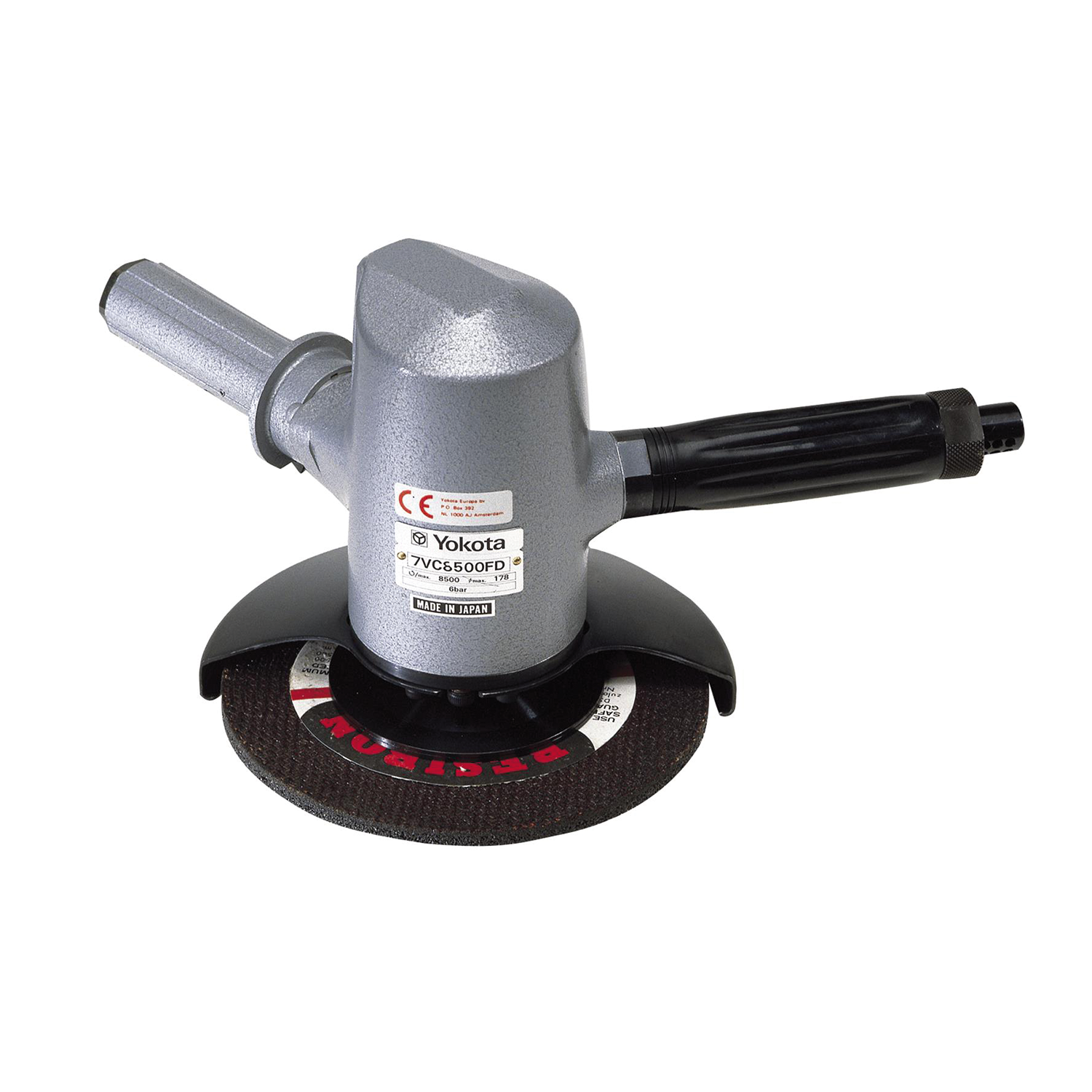

This vertical grinder of Yokota is used in industrial applications and shipyards. The grinder has an integrated speed-regulator for a maximum of safety and the optimal performance in material removal.
Characteristics:
* Ergonomic design, well balanced
* The air-exhaust is silenced
* Safety start lever
Related accessories
1508-0655-00-00
Outer Wheel Screw
9310-3006-00-99
Rubber Pad (178) With Flange
1508-0653-00-03
Inner Flange
8100-5001-00-00
Twin Wrench
8100-4003-00-01
Hook Wrench
9310-3006-00-00
Rubber pad G-70/7VC-6500/7VC-8500
1508-0654-05-05
Pad Flange
1508-0654-00-01
Outer Flange
1508-0653-01-02
Inner Flange
1422-0653-00-99
Inner Flange
8100-5002-00-00
Twin Wrench G70EF/7VC-6500/7VC-8500
1508-0654-00-02
Outer Flange
Specifications
| Brand | Yokota |
| RPM | 8500 |
| Airconsumption (l/s) | 23,0 |
| Weight (kg) | 4,1 |
| Sound level (dB(A)) | 83 |
| Airconnection | PT 3/8" |
| Airpress max. (MPa) | 0,63 |

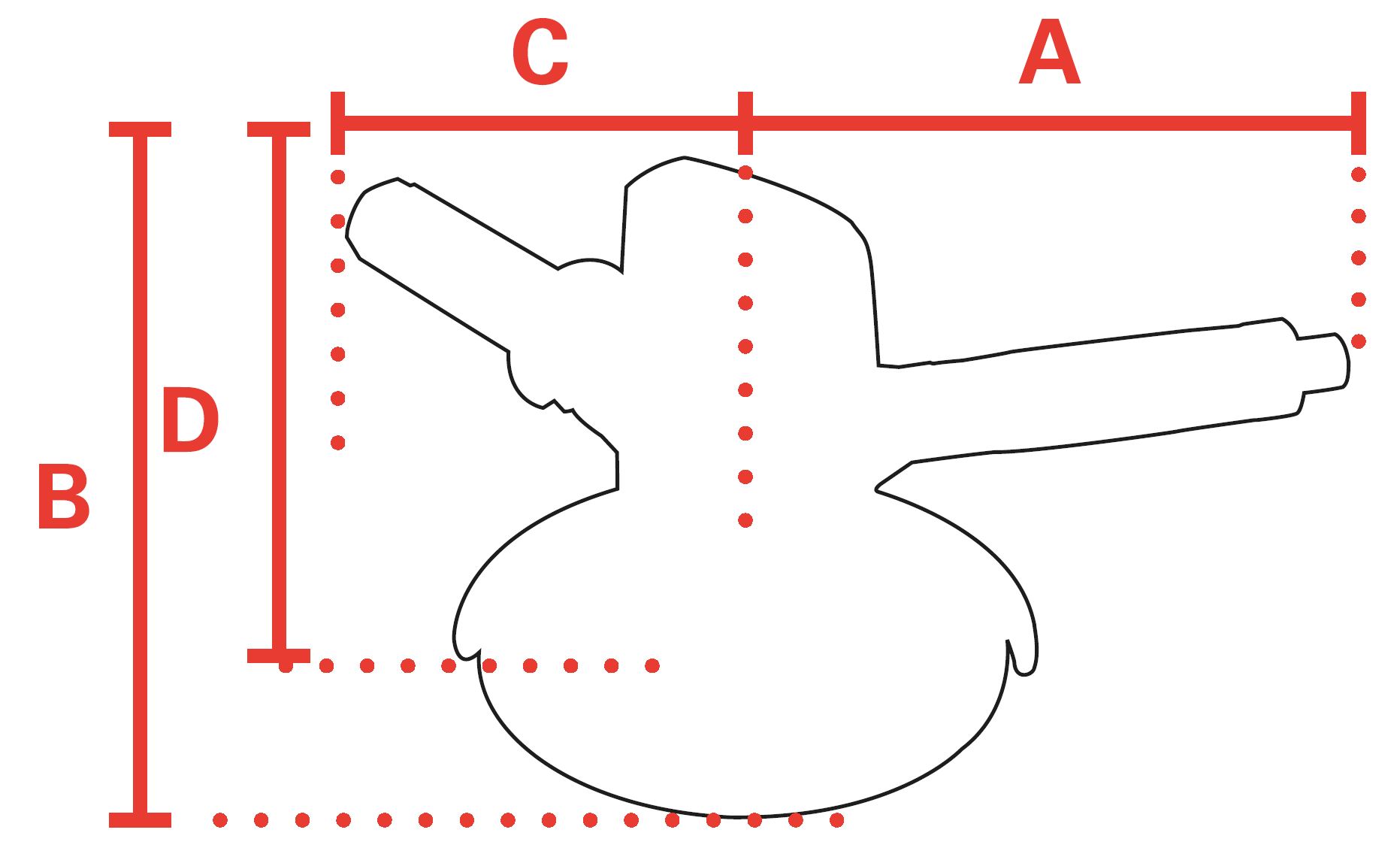

| mm A | 195 |
| mm B | 180 |
| mm C | 180 |
| mm D | 165 |
| Hosediameter (mm) | 13 |
| Spindle | 5/8" |
| Power (kW) | 1,74 |
| Vibration level (m/s²) | 2,1 |
| Wheel size (mm) | 180 x 6 x 22 |
| Safety standard | EN ISO 11148-7 |
| EAN | 8717981000043 |
Manuals
| 7VC-8500FS-DE.pdf | Download |
| 7VC-8500FS-NL.pdf | Download |
| 7VC-8500FS-EL.pdf | Download |
| 7VC-8500FS-NO.pdf | Download |
| 7VC-8500FS-IT.pdf | Download |
| 7VC-8500FS-EN.pdf | Download |
| 7VC-8500FS-ES.pdf | Download |
| 7VC-8500FS-SK.pdf | Download |
| 7VC-8500FS-FI.pdf | Download |
| 7VC-8500FS-SV.pdf | Download |
| 7VC-8500FS-PL.pdf | Download |
| 7VC-8500FS-DA.pdf | Download |
| 7VC-8500FS-FR.pdf | Download |
| 7VC-8500FS - QR Card.pdf | Download |
