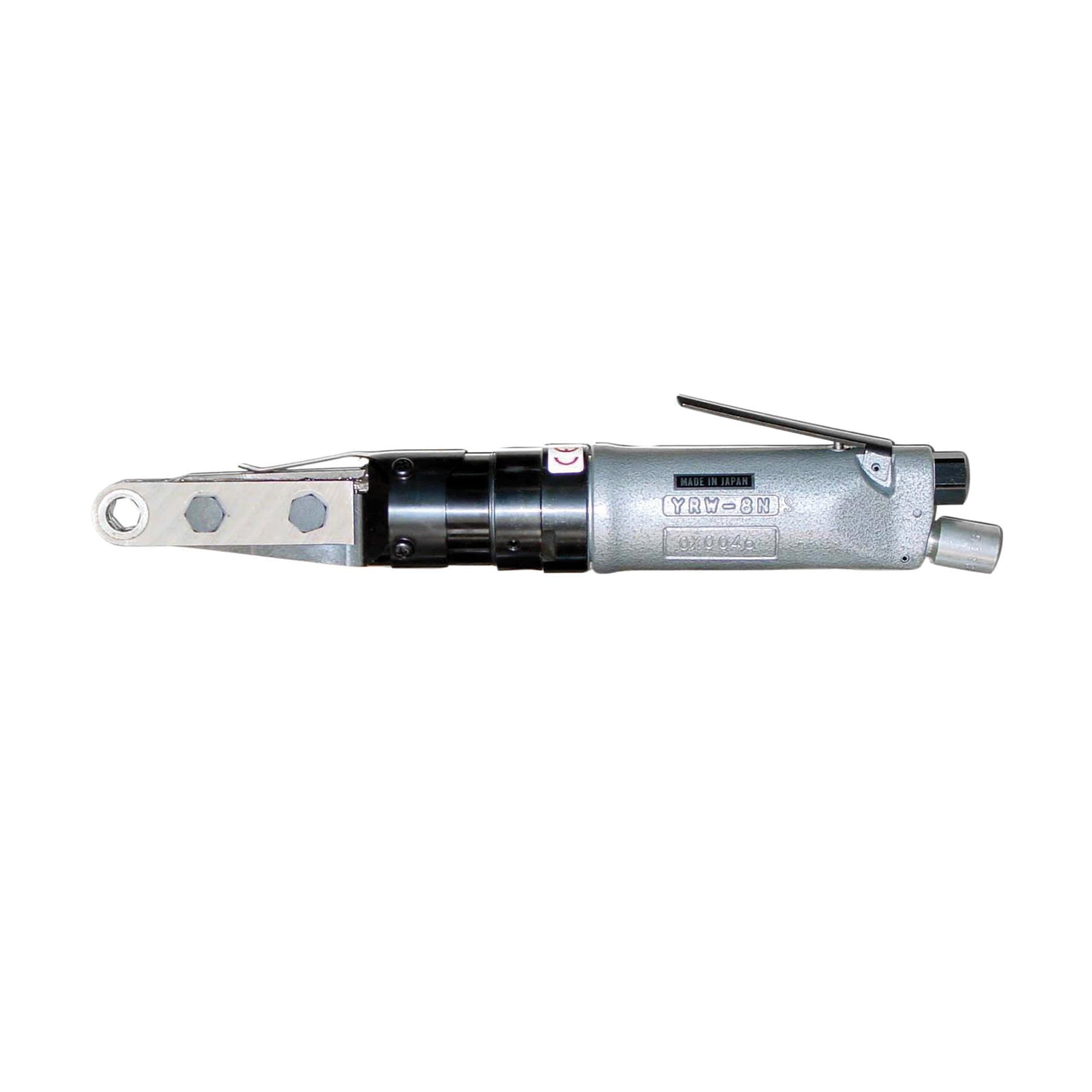

This air-ratchet wrench of Yokota is devellopped for use in the assembly-industry. Use for limited accessibility, where angle nutrunners can not be used due to the height of the angle-head. By rotating the complete tool 180 degrees, they can also be used to untighten the joint.
Characteristics:
* Compact and lightweight
* The tool can be delivered with 10, 12, 13 or 14mm socket, please indicate in your order.
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Bolt capacity (mm) | 8 |
| RPM | 250 |
| Torque (Nm) | 30 |
| Airconsumption (l/s) | 8,3 |
| Weight (kg) | 2,00 |
| Sound level (dB(A)) | 82 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 350 |
| mm B | 18 |
| mm C | 13 |
| mm D | 105 |
| mm E | 25 |
| mm F | 12,5 |
| Hosediameter (mm) | 10 |
| A/F (mm) | 10, 12, 13, 14 mm* |
| Vibration level (m/s²) | 2,5 |
| Safety standard | EN ISO 11148-6 |
| EAN | 8717981085897 |
Manuals
| YRW-8NS-DE.pdf | Download |
| YRW-8NS-NL.pdf | Download |
| YRW-8NS-EN.pdf | Download |
| YRW-8NS-FR.pdf | Download |
| YRW-8NS - QR Card.pdf | Download |
