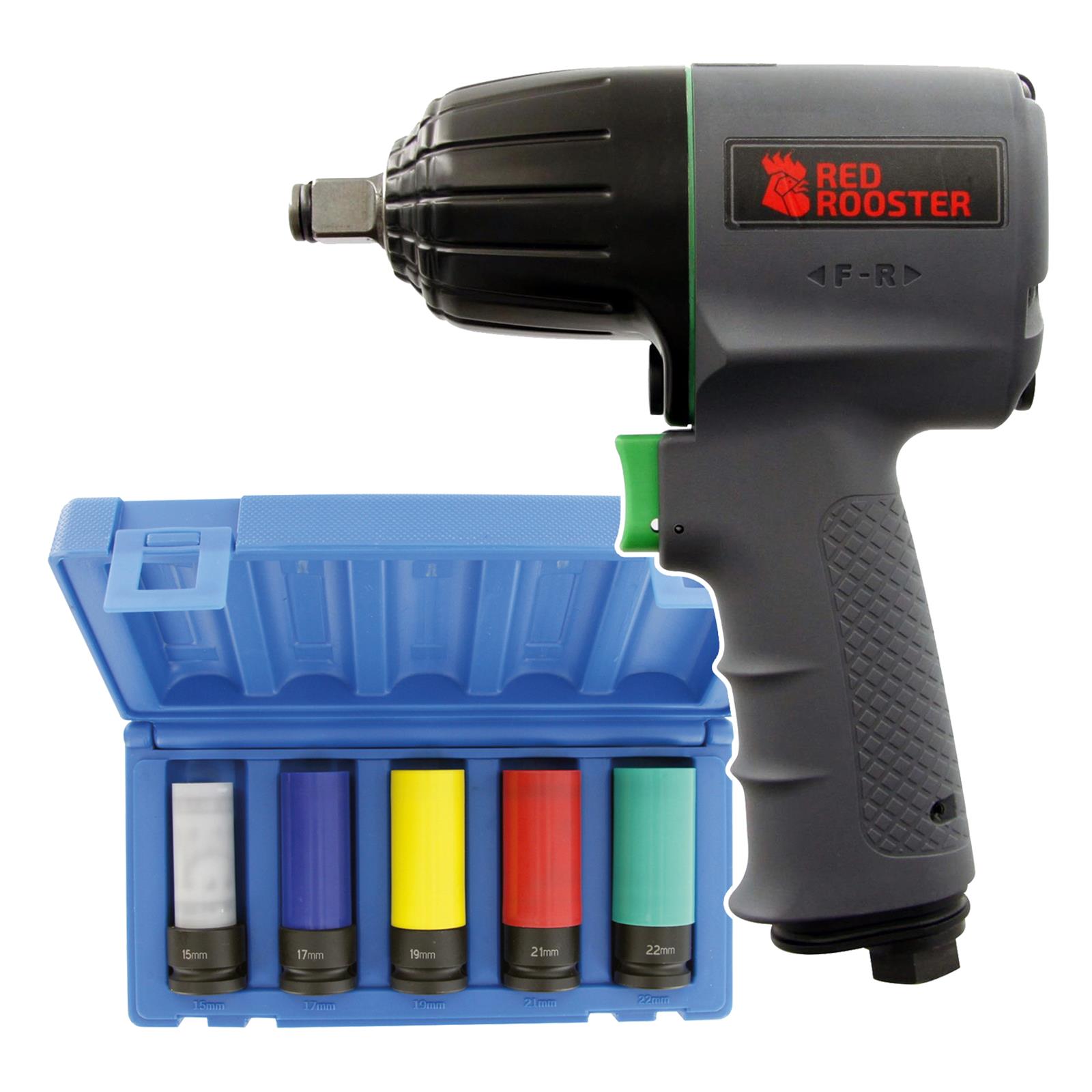

This composite impact wrench by RED ROOSTER has an excellent weight/power ratio. The RR-18N T is especially developed for the tireshop applications. The Twin Hammer impact mechanism gives high energy levels per impact en thus suitable for heavy duty applications. The energy is directly transmmitted to the anvil for maximum power and low maintenance. The tool is limiting (*) the tightening torque for wheel nut applications, so overtightening is history! Full power available in loosening direction. Allways use the torque wrench to check the torque!
Characteristics:
• Ergonomic design, well balanced
• Compact and lightweight
• Impact mechanism Twin Hammer
• Exhaust silenced, through grip
Delivered including Wheel nut impact socket set DO611260501.
With plastic stop and sleeve.
In blow mold case.
Contents: White 15mm, Blue 17mm, Yellow 19mm, Red 21mm, Green 22mm.
Specifications
| Brand | Red Rooster |
| Square Drive | 1/2" |
| Version | R |
| Bolt capacity (mm) | 16 |
| Impact mechanism | Twin-Hammer |
| RPM | 7000 |
| Torque (Nm) | 815 |
| Force adjustment | - |
| Airconsumption (l/s) | 12,1 |
| Weight (kg) | 2,0 |
| Tightening torque (Nm) | 90 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

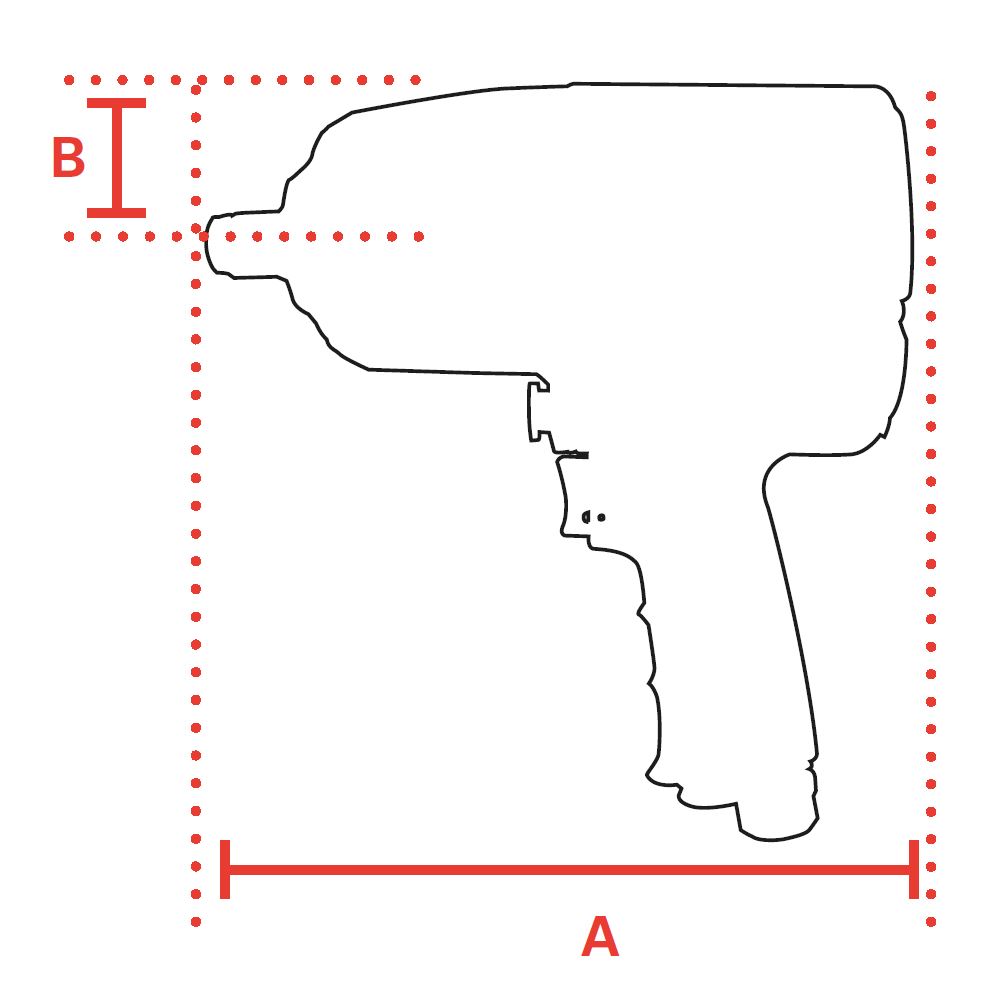

| mm A | 185 |
| mm B | 30 |
| Hosediameter (mm) | 10 |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 6,8 |
| Vibration uncertainty (m/s²) | 1,16 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 92,78 |
| Sound power (dB(A)) | 103,78 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981349456 |
