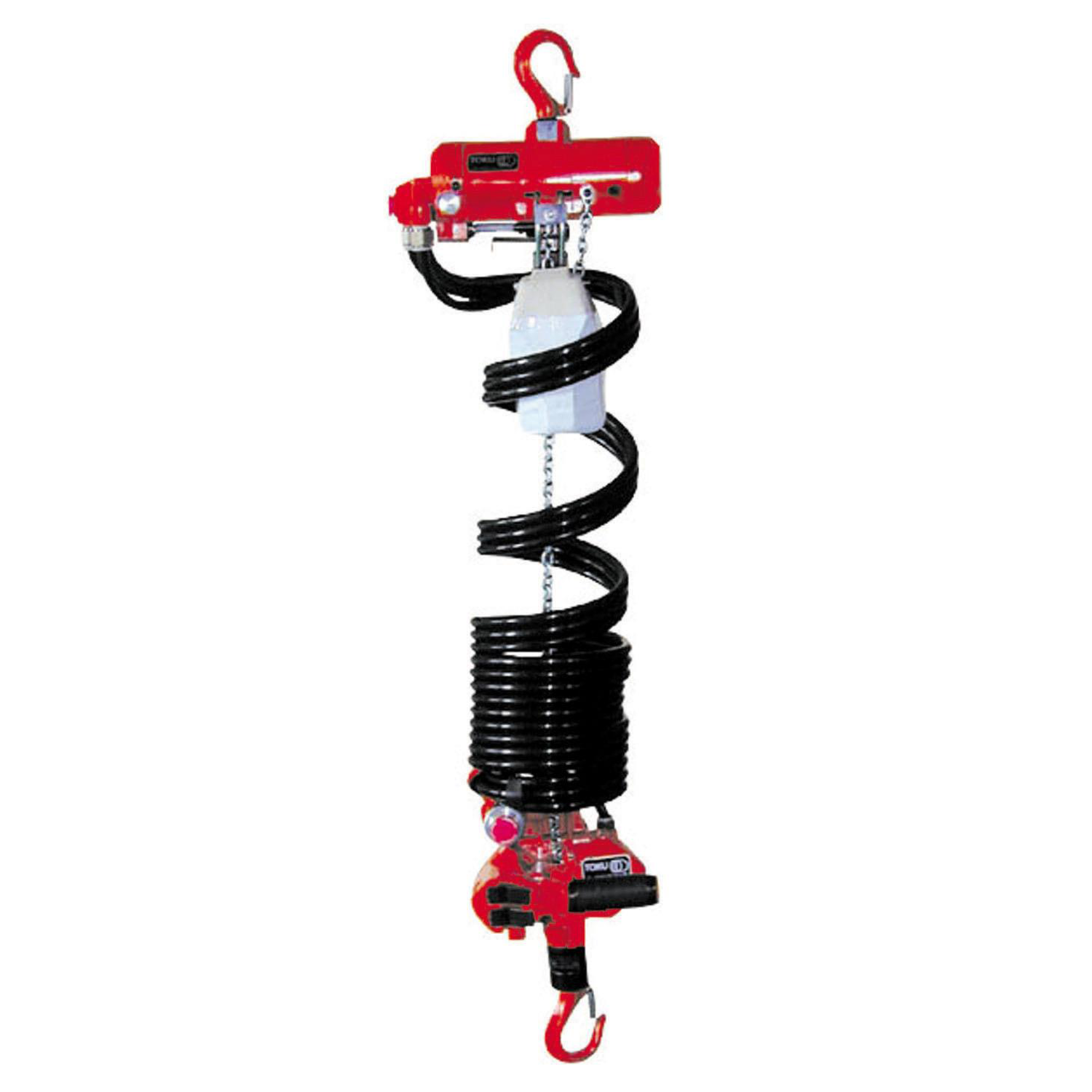

The RED ROOSTER Compact Hoist are suitable for "Material-Handling".
The pendant control is direct on the lower hook so the operator can control and position the load easy and direct.
Lifting height 3 meters. The perfect solution for horizontal movements is the combination with a push trolley.
Characteristics:
* Pendant control direct on the lower hook
* Optimum load control, very precise positioning
* One-hand control
* Variable speed control
* Soft start and stop, no shock movements
* Handle can be positioned for left-hand or right-hand operation
* Endstop system
Related products
4X12RTS
Chain RTS EN 818-7
AC30-F03DM-8-B
Modular FRL Unit
4X12RS60
Chain RS60 Stainless Steel EN818-7
Specifications
| Brand | Red Rooster |
| 4-buttoncontrol with emergency stop (VTP-4E) | - |
| Number of chain falls | 1 |
| Lowering speed full load (m/min) | 16,5 |
| Lowering speed 0-load (m/min) | 12,4 |
| Weight incl. 3m lift (kg) | 11 |
| Lifting speed full load (m/min) | 8 |
| Lifting speed 0-load (m/min) | 16,7 |
| Chain weight (kg/m) | 0,35 |
| Chain (mm) | 4,0 x 12,0 (HD) |
| Chainbag/Chainbucket | + |
| Loadlimiter | - |
| Trolley | + |
| Airconnection | 3/8" BSPT |
| Airpress max. (MPa) | 0,63 |
| Airconsumption fullload (l/s) | 11,7 |
| mm A | 286 |
| mm B | 174 |
| mm C | 112 |
| mm D | 837 |
| mm E | 15 |
| mm F | 194 |
| mm G | 102 |
| mm H | 92 |
| mm I | 184 |
| mm J | 123 |
| mm K | 61 |
| mm L | 152 |
| mm M | 74 |
| mm N | 78 |
| mm O | 36 |
| Hosediameter (mm) | 13 |
| SMC Airtreatment unit | AC30-F03DM-8-B |
| Capacity (kg) | 250 |
| EAN | 8717981184002 |
