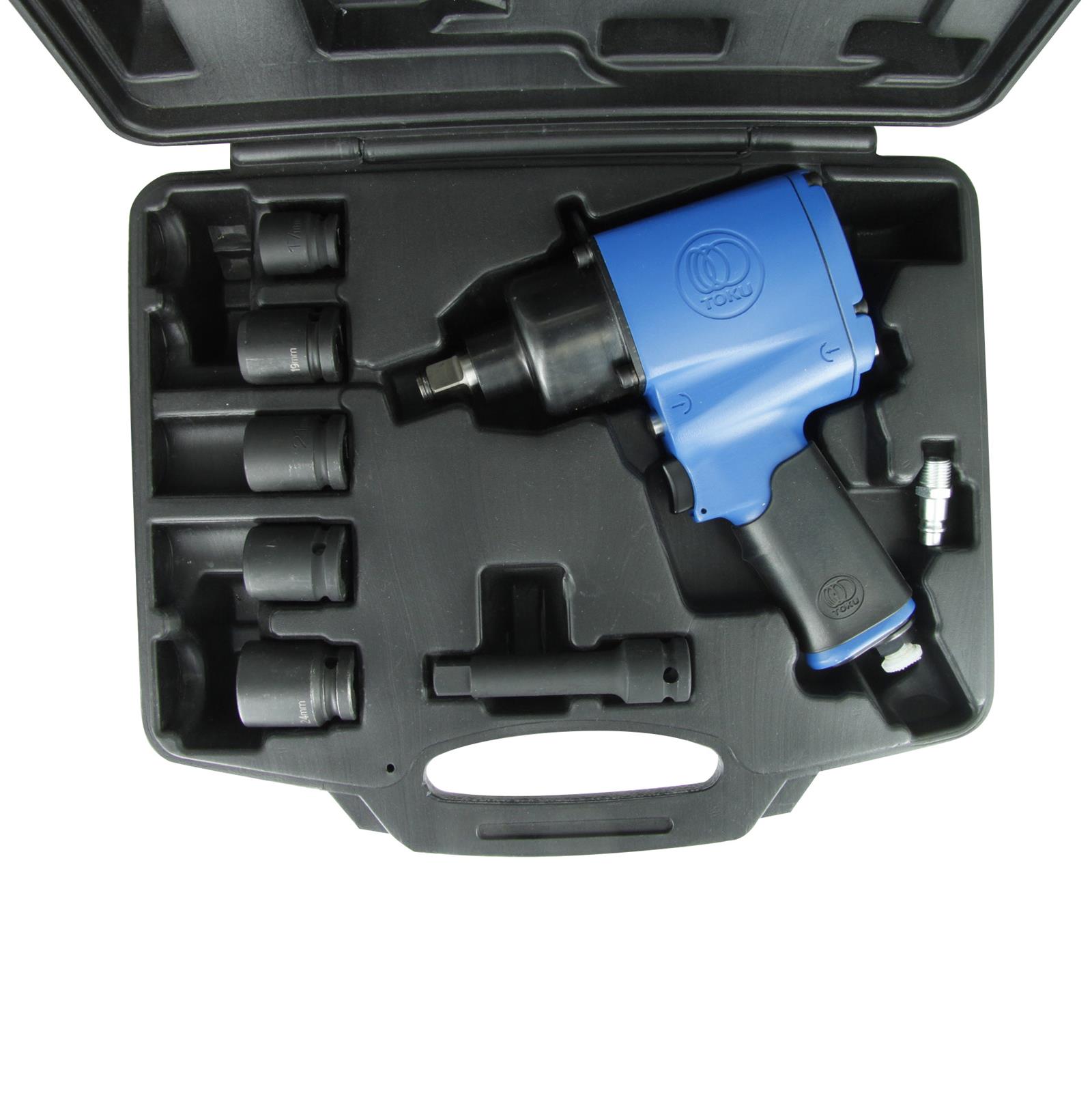

IMPACT WRENCH IN SET:
Impact wrench MI-17MG, 5 x 1/2" impact sockets (17 - 19 - 21 - 22 - 24 mm) & 1 x extension bar 100 mm

The MI-17MG is developed for assembly- and disassembly purposes. The Twin Hammer impactmechanism has a high energy level at each impact and thus suitable for heavy duty application. The energy is brought directly to the drive shaft for maximum power and minimal maintenance. This tool is suitable for industrial use.

Characteristics:
• Ergonomic design, well balanced
• Compact and lightweight
• Clutch: Twin Hammer
• Adjustable power, 4 positions
• Exhaust through rubber sealed grip, with silencer





Specifications

Brand Toku
Square Drive 1/2"
Version R
Bolt capacity (mm) 16
Impact mechanism Twin-Hammer
RPM 5500
Torque (Nm) 650
Force adjustment R/L 4 standen
Airconsumption (l/s) 8,8
Weight (kg) 2,5
Airconnection PT 1/4"
Airpress max. (MPa) 0,63

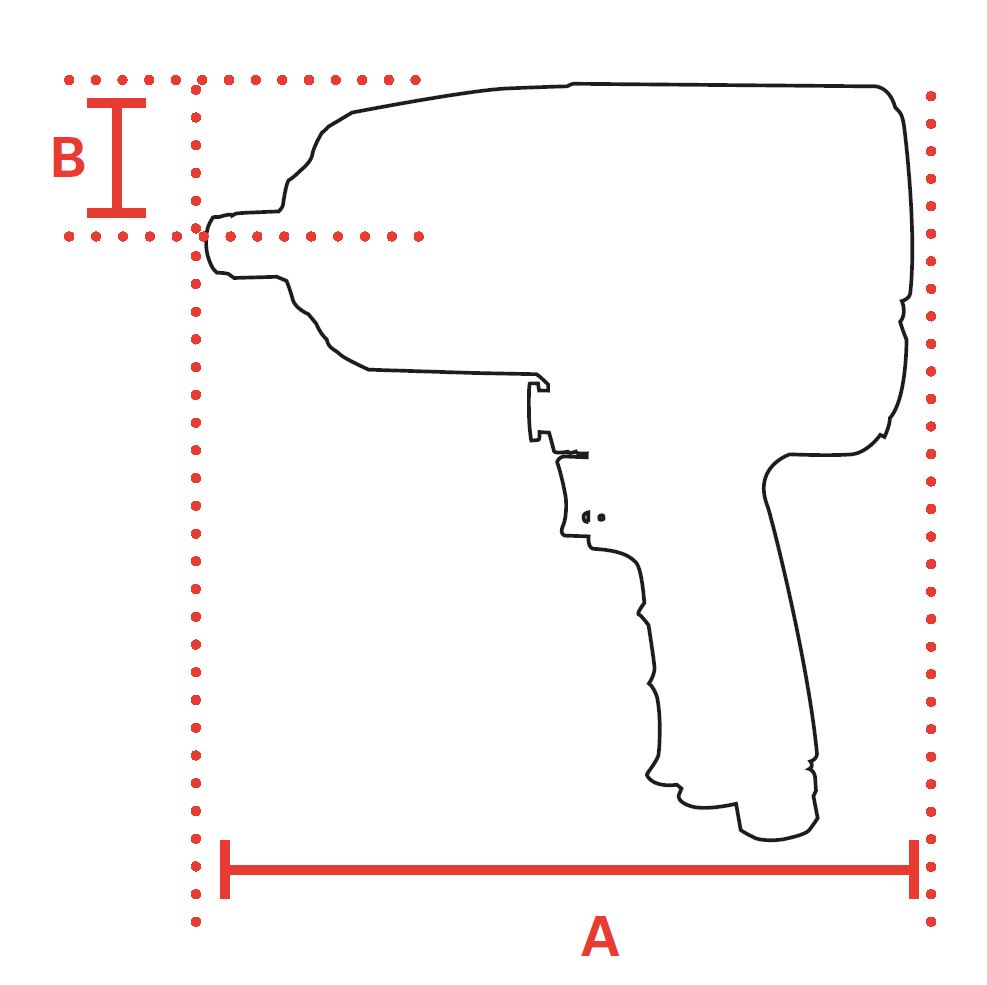

mm A 178
mm B 31
Hosediameter (mm) 10
Safety standard EN ISO 11148-6
Max. breakaway torque (Nm) 1450
Vibration standard EN ISO 28927-2
Vibration value (m/s²) 11,2
Vibration uncertainty (m/s²) 1,60
Sound standard ISO 15744
Sound pressure (dB(A)) 91
Sound power (dB(A)) 102
Sound uncertainty (dB(A)) 3
EAN 8717981365784
