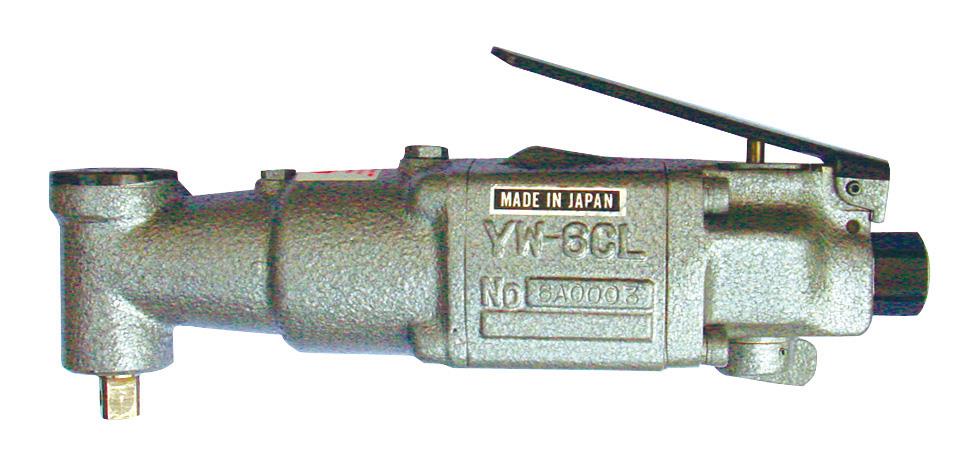

This angled impact wrench of YOKOTA is suitable fo industrial use. A top-quality tool that you can rely on in the industrial applications. Assembly and disassembly objectives in tight or confined spaces.
Characteristics:
- Ergonomic design, well belanced
- Air exhaust silenced
Related products
AC30A-F03E-B
Modular FRL Unit
DO605121301
Impact Socket Set 3/8" deep 13-part
DO611101301
Socket Set 3/8" 13-parts
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Square Drive | 3/8" |
| Version | H |
| Bolt capacity (mm) | 6 |
| Impact mechanism | 1-Hammer |
| RPM | 6500 |
| Torque (Nm) | 145 |
| Force adjustment | - |
| Airconsumption (l/s) | 4,2 |
| Weight (kg) | 1,6 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

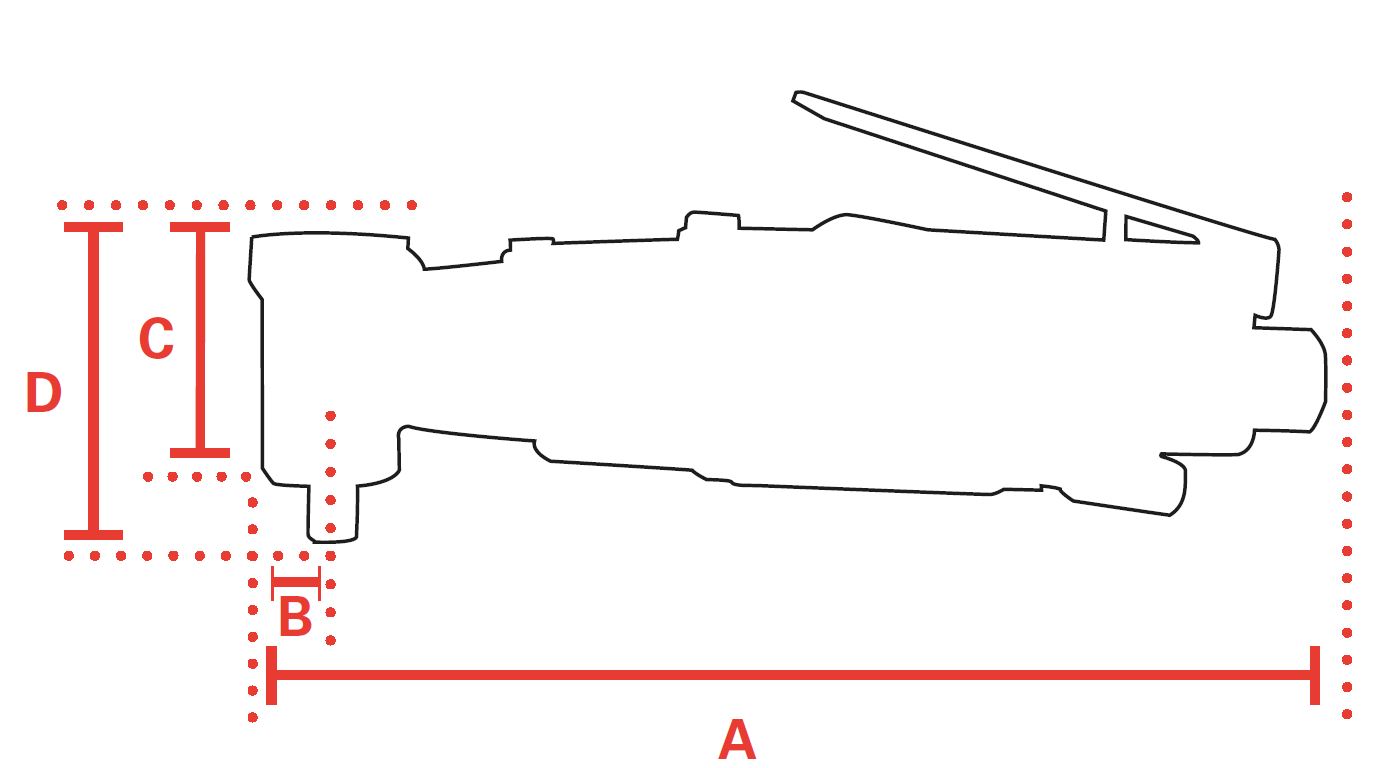

| mm A | 215 |
| mm B | 14 |
| mm C | 50 |
| mm D | 63 |
| Hosediameter (mm) | 6,5 |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 10,4 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 93 |
| Sound power (dB(A)) | 104 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981106431 |
