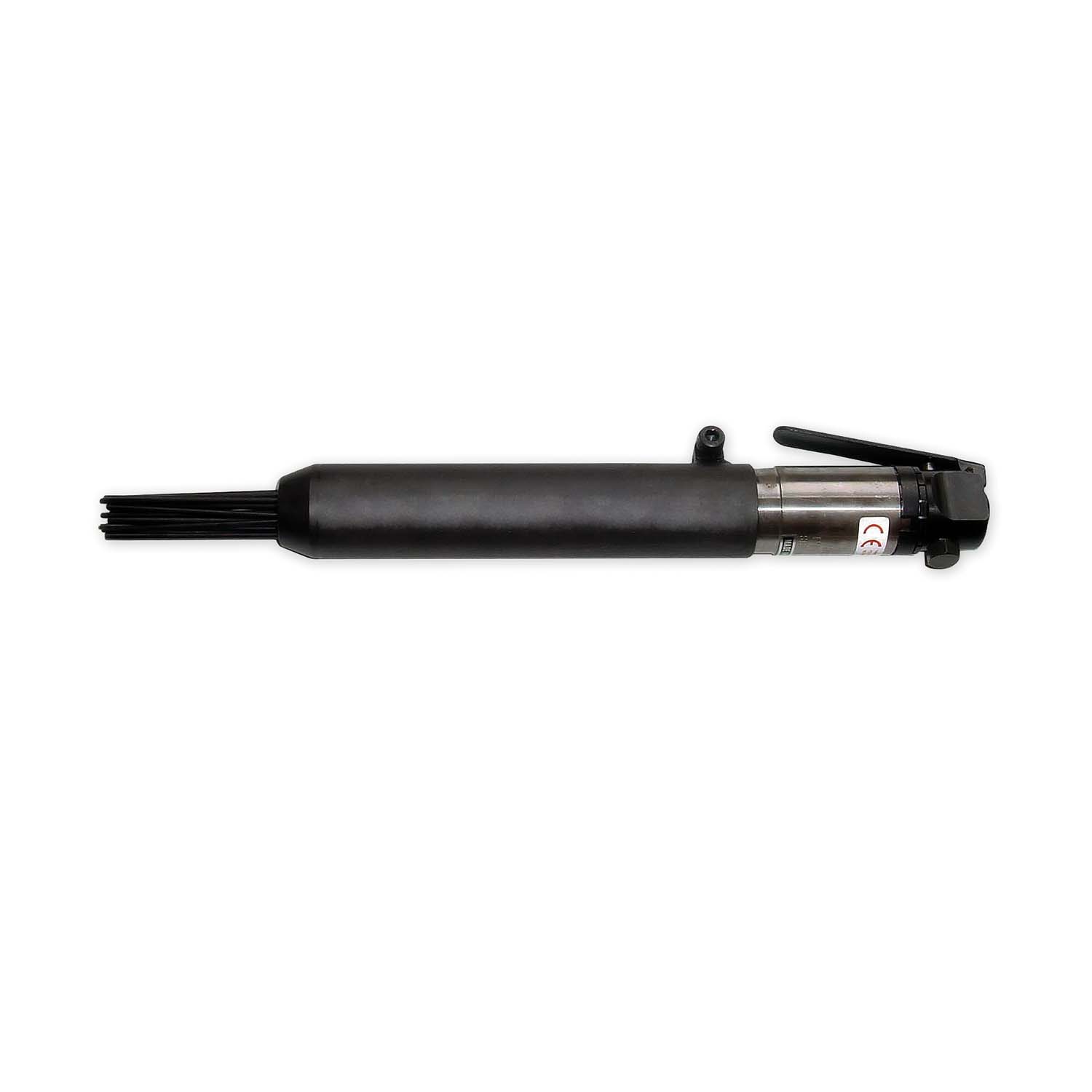

This Yokota needle-scaler is developed for operations of longer use, has a high frequency and is meant for industrial use.
Characteristics:
* Good ergonomics, well balanced
* For lefthanded as well as righthanded use
* Easy exchange of needles
Related accessories
6203-0827-03-03
Co-Ber Needle Flat Tip 3Mmx7
6203-0827-03-01
Needle 3Mmx7" Flat Tip
6203-0827-03-02
Needle 3Mmx7" Chisel Tip
Specifications
| Brand | Yokota |
| Airconsumption (l/s) | 6,0 |
| Weight (kg) | 2,3 |
| Number 3 mm | 19 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

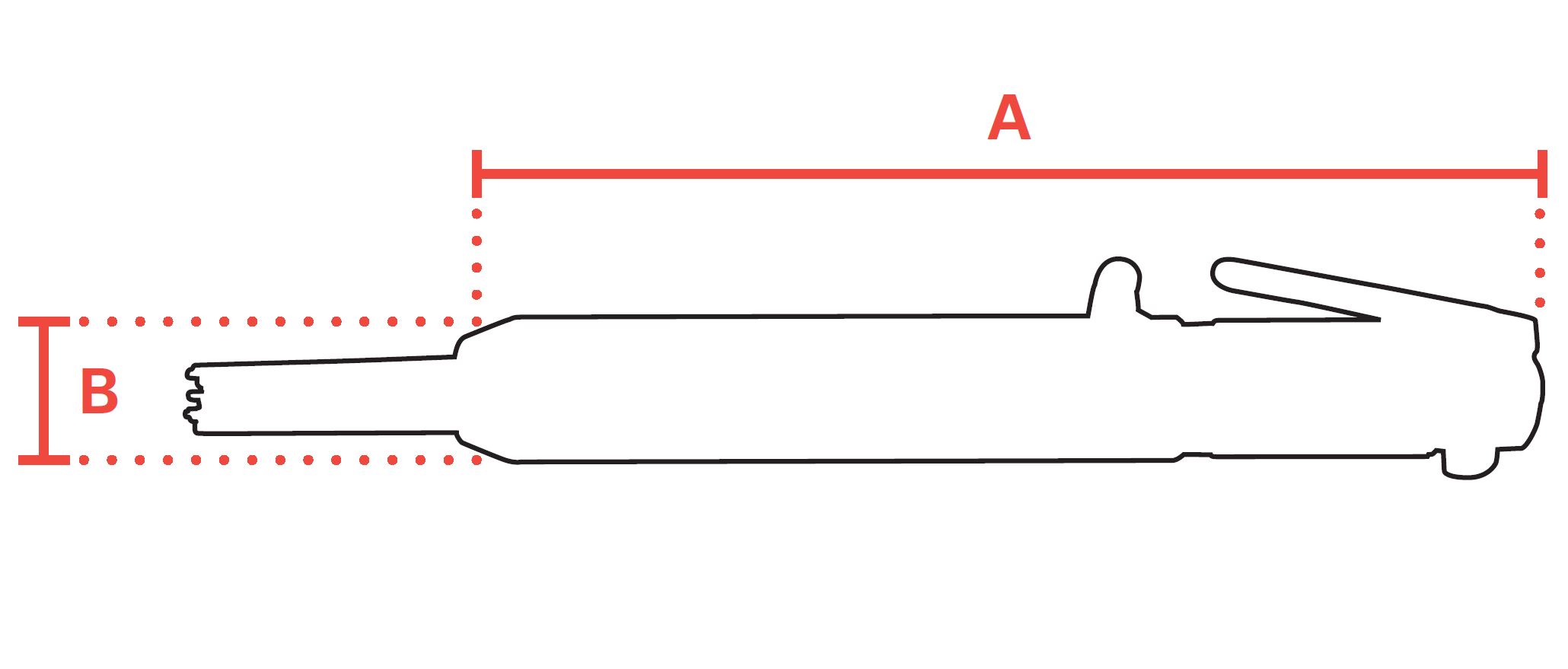

| mm A | 412 |
| mm B | 43 |
| Stroke (mm) | 22,0 |
| Strokes per minute | 4000 |
| Hosediameter (mm) | 6,5 |
| Piston (mm) | 25,0 |
| Safety standard | EN ISO 11148-4 |
| Vibration standard | EN ISO 28927-9 |
| Vibration value (m/s²) | 10,4 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 93 |
| Sound power (dB(A)) | 104 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981000067 |
Manuals
| F-25N-EN.pdf | Download |
| F-25N-FR.pdf | Download |
| F-25N-DE.pdf | Download |
| F-25N-NL.pdf | Download |
| F-25N - QR Card.pdf | Download |
