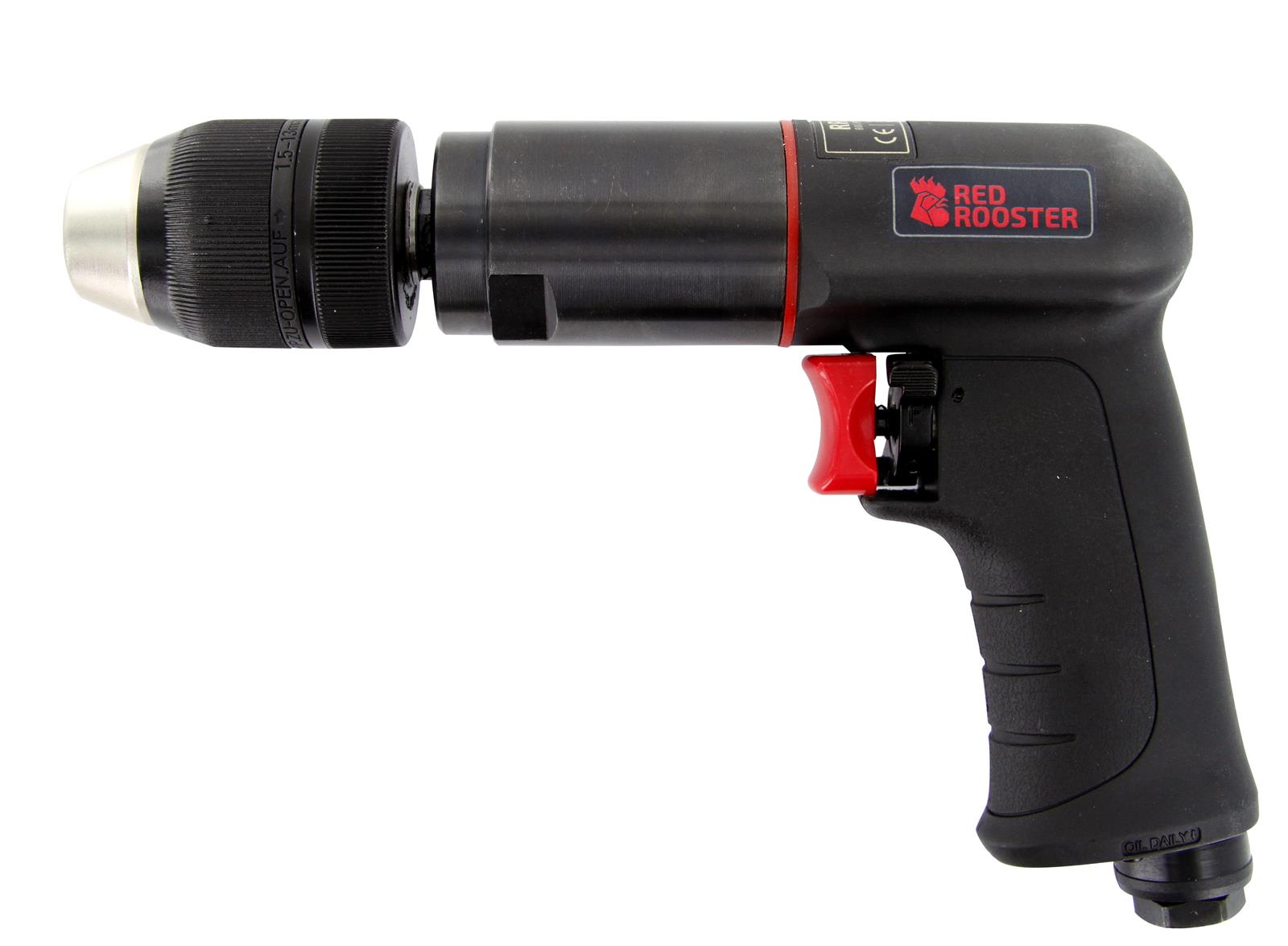

This drill by RED ROOSTER is the ideal tool for the workshop and light industrial applications. Composite body in ergonomic shape to support the operator.
Including a keyless chuck for a quick changing of drills and dead handle.
Characteristics:
• Compact and lightweight
• Air exhaust through grip, silenced
• Left- and right rotation
Related accessories
75-725139-0001S
Retainer
ATLUB
Air Tool Oil, 1 litre
10033-14
13mm Keyless Chuck
Specifications
| Brand | Red Rooster |
| RPM | 800 |
| Airconsumption (l/s) | 8,0 |
| Weight (kg) | 1,30 |
| Drill chuck | 3/8" x 24UNF |
| Capacity steel (mm) | 13 |
| Direction | R/L |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

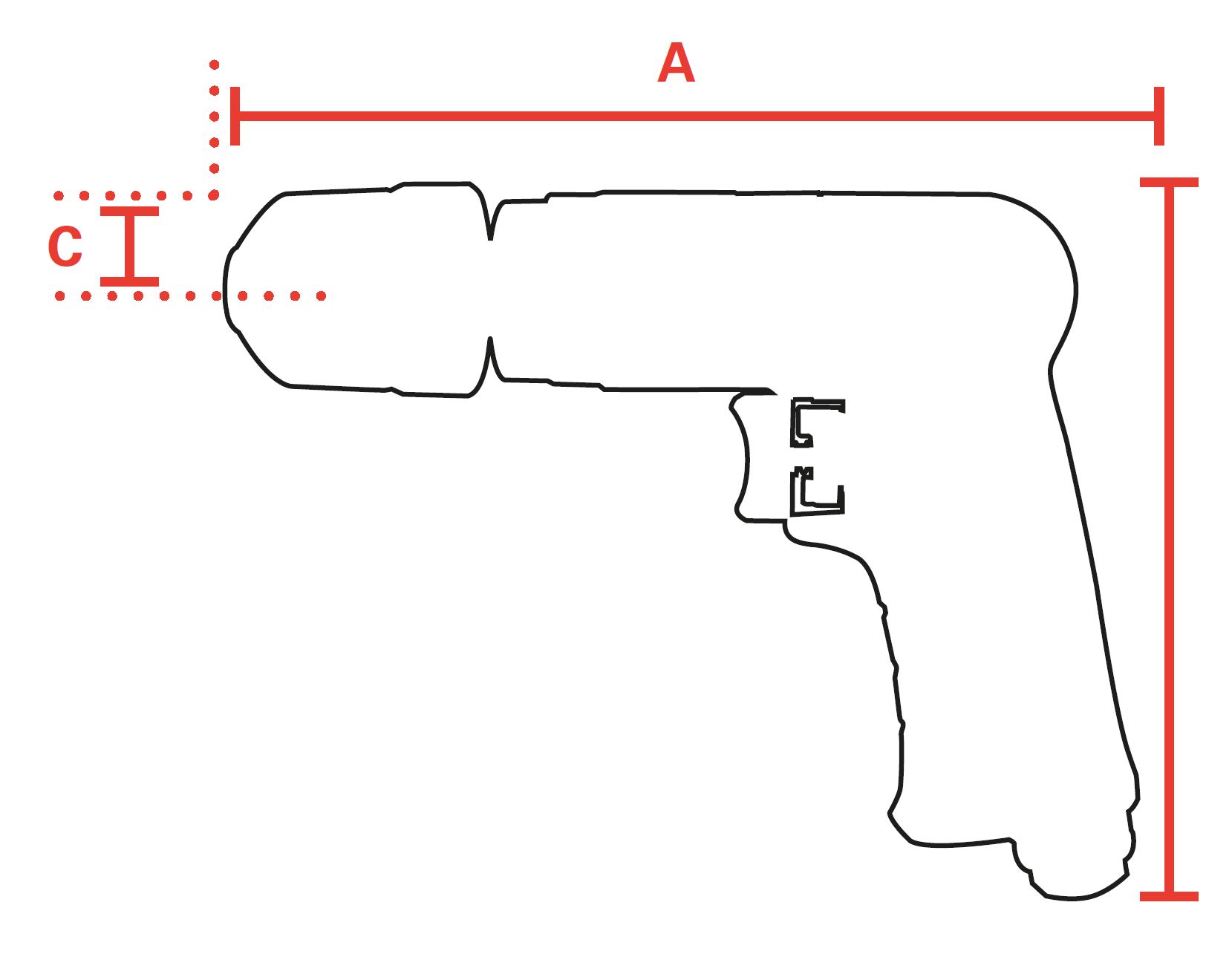

| mm A | 218 |
| mm B | 165 |
| mm C | - |
| Hosediameter (mm) | 10 |
| Power (kW) | 0,35 |
| Safety standard | EN ISO 11148-3 |
| Vibration standard | EN ISO 28927-5 |
| Vibration value (m/s²) | 1,5 |
| Vibration uncertainty (m/s²) | 0,65 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 88,4 |
| Sound power (dB(A)) | 99,4 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981197477 |
