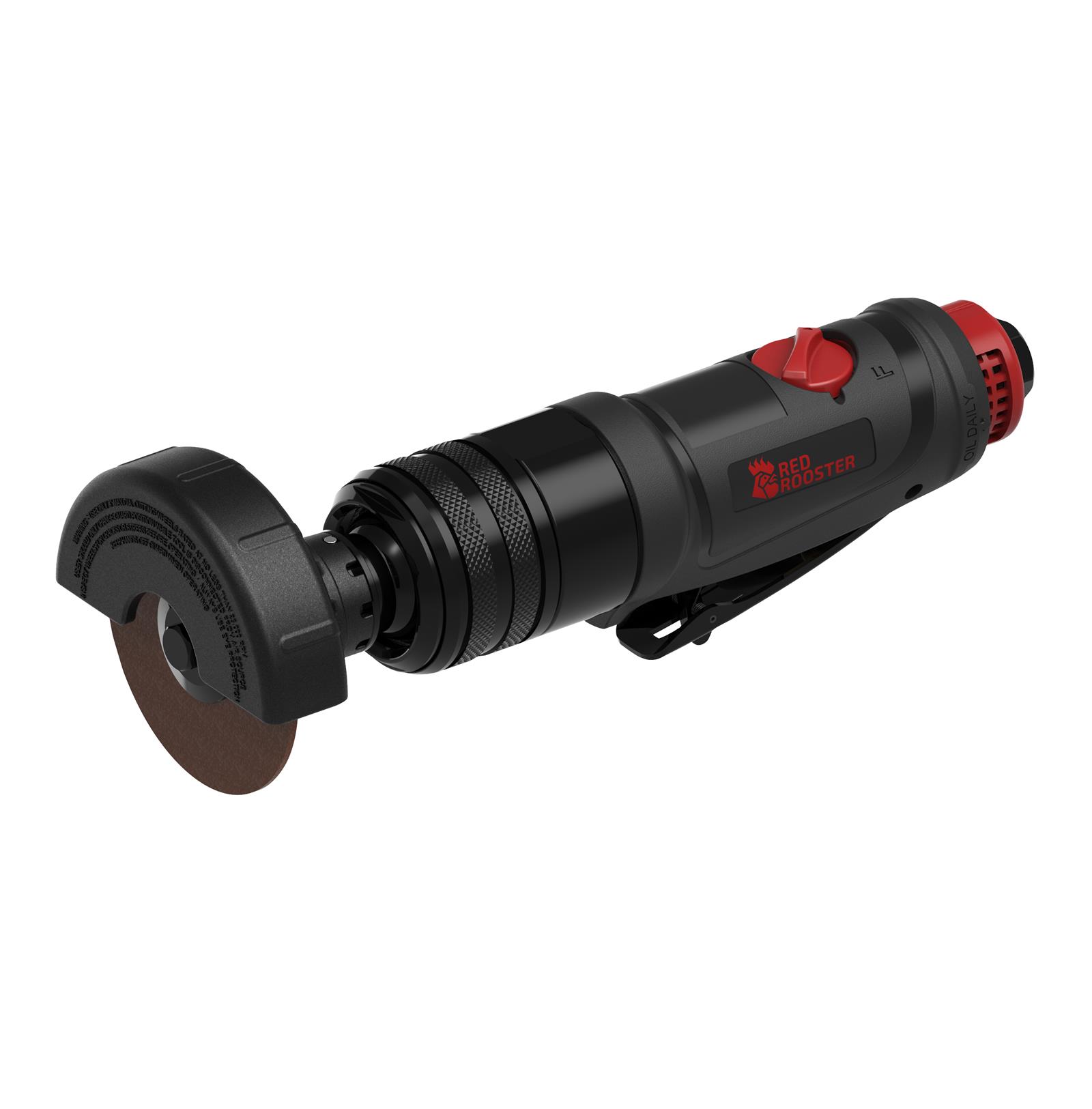

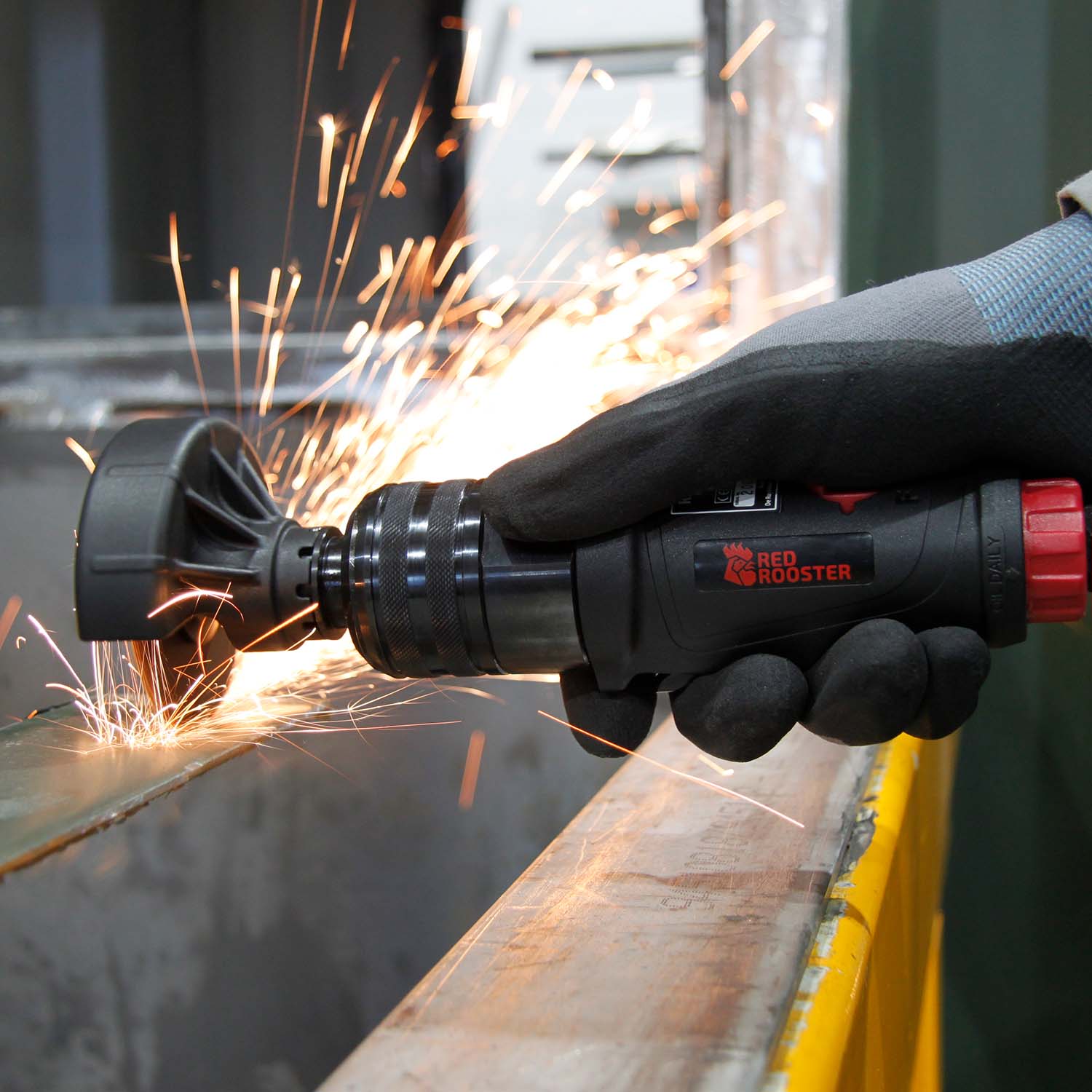

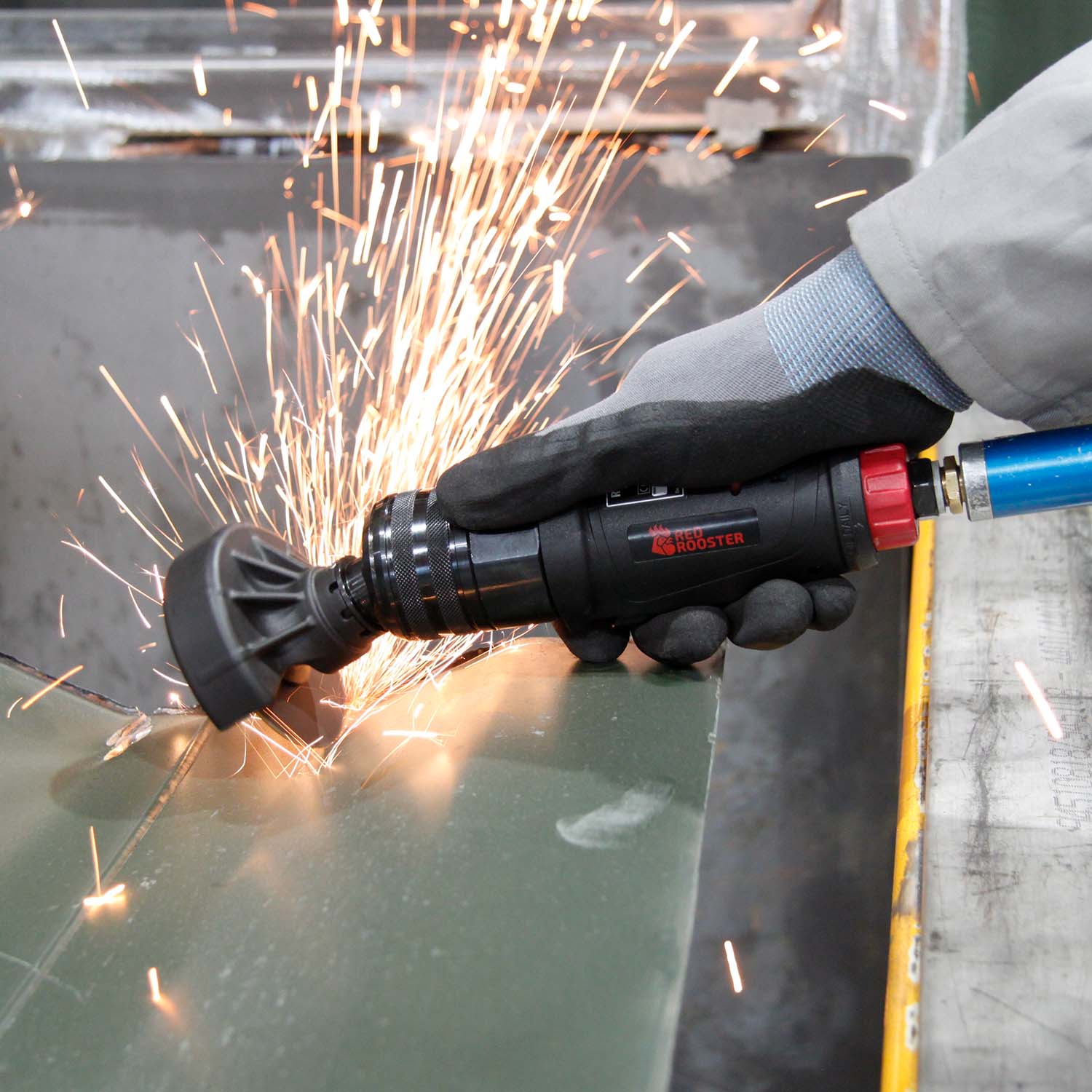

This RED ROOSTER power cutter is used with 75 mm cutting discs. The grinding head can be tilted at an angle of 25 degrees in 2 positions. By this tilting head, hard-to-reach places are more accessible, this maximizes the ergonomic properties and allows you to use a high precision grinding. This tool has a very powerful air motor of 600 Watt. Very suitable for precise cutting of, for example, sheet steel, body parts and exhaust pipes.
Characteristics:
• Ergonomically shaped handle.
• Direction of rotation can be changed to divert the spark beam.
• Excellent thermal insulation.
• Easy adjustment of the protective cover 360 degrees.
• Silenced swivel rear exhaust.
Related products
52630-11
Cutting Disc 75 x 1,6 x 9,5 mm
Related accessories
ATLUB
Air Tool Oil, 1 litre
YouTubeSpecifications
| Brand | Red Rooster |
| RPM | 16000 |
| Airconsumption (l/s) | 11,3 |
| Weight (kg) | 1,3 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

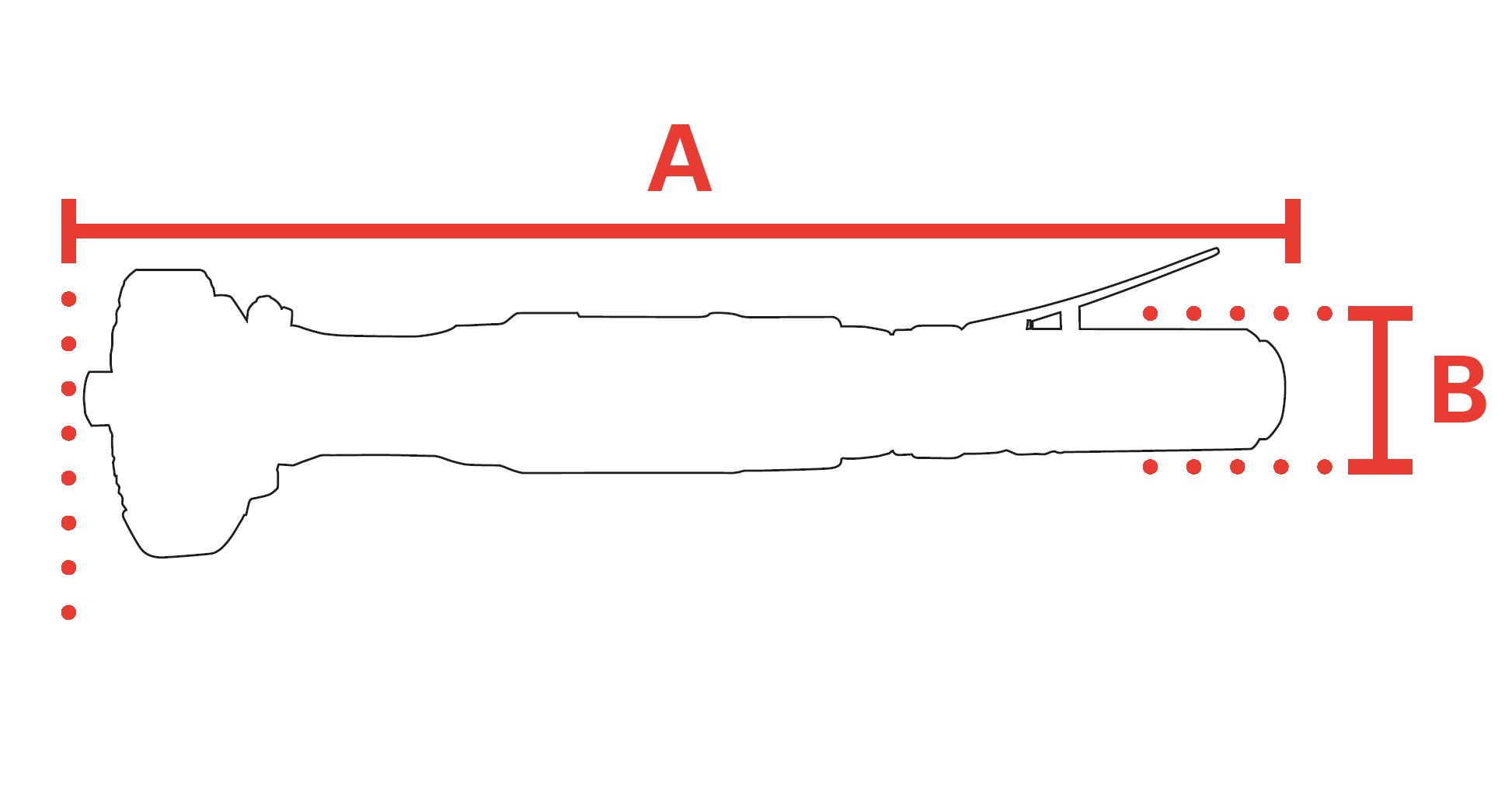

| mm A | 249 |
| mm B | 72 |
| Hosediameter (mm) | 10 |
| Spindle | 3/8" x 16 |
| Power (kW) | 0,6 |
| Wheel size (mm) | 75 x (0,8 - 3,5) x 10mm |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-1 |
| Vibration value (m/s²) | 4,3 |
| Vibration uncertainty (m/s²) | 1,1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 90 |
| Sound power (dB(A)) | 101 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981400959 |
Manuals
| RRG-1036FH-ES.pdf | Download |
| RRG-1036FH-EL.pdf | Download |
| RRG-1036FH-IT.pdf | Download |
| RRG-1036FH-PL.pdf | Download |
| RRG-1036FH-NO.pdf | Download |
| RRG-1036FH-FI.pdf | Download |
| RRG-1036FH-DE.pdf | Download |
| RRG-1036FH-SK.pdf | Download |
| RRG-1036FH-PT.pdf | Download |
| RRG-1036FH-DA.pdf | Download |
| RRG-1036FH-SV.pdf | Download |
| RRG-1036FH-FR.pdf | Download |
| RRG-1036FH-EN.pdf | Download |
| RRG-1036FH-NL.pdf | Download |
| RRG-1036FH - QR Card.pdf | Download |
