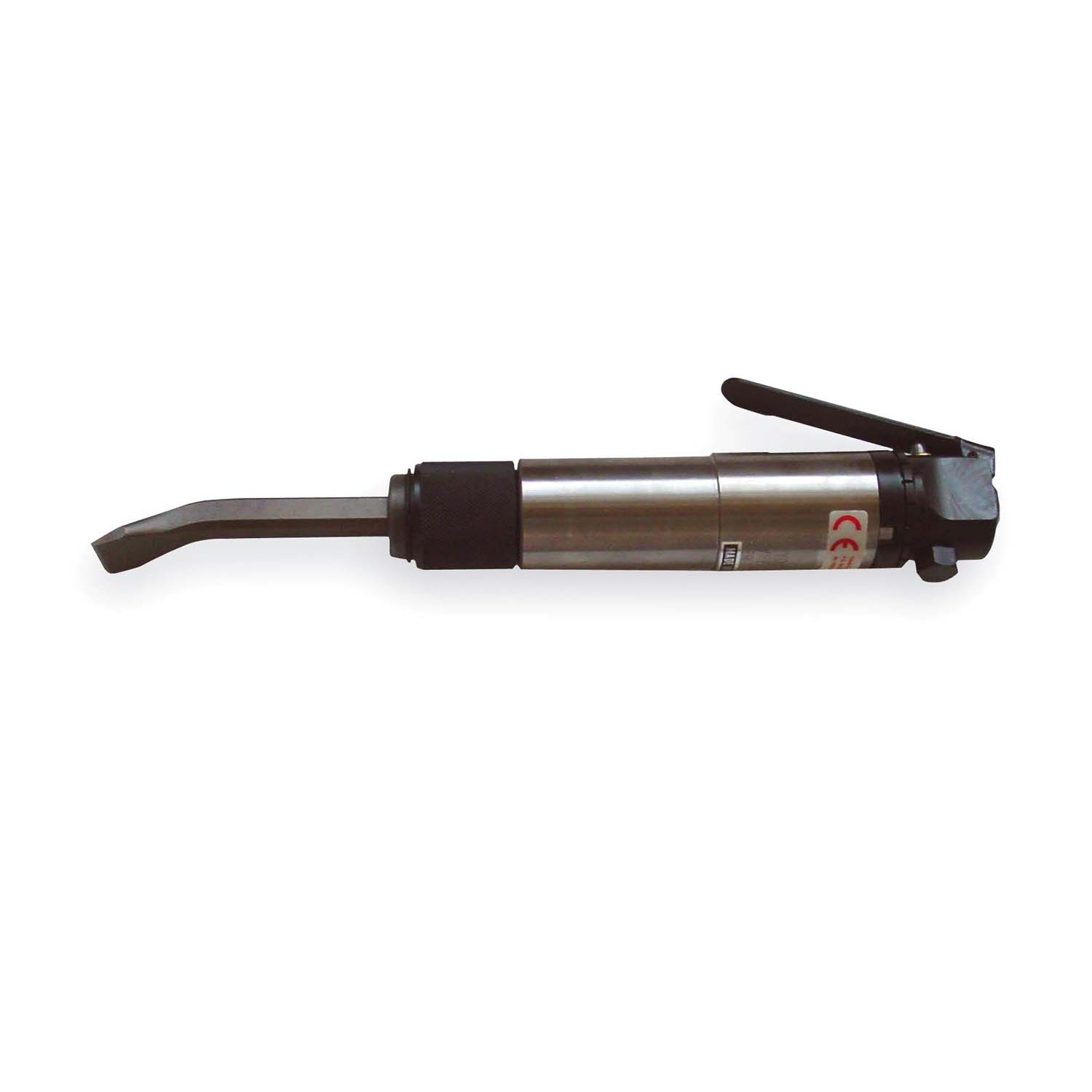

This fluxchipper by Yokota has a quick-change chisel retainer. High impactfrequency. For industrial use, chipping of welding seams.
Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* Low on noise and vibrationlevels
Related products
CBMCOF25-180-6
Slotting Tool W.Carbide Tip 6mm
BE15/1G
Chisel Bend Wide TL=160 W=35
CBMCOF25-150
Carbide Motar Chisel
CBMCOF25-180-4
Slotting Tool W.Carbide Tip 4mm
BE15/1F
Flat Chisel TL= 160 W=19
CBMCOF25-180
Slotting Tool W.Carbide Tip
8160-1002-00-00
Chisel Bend Flat TL=160 W=26
Specifications
| Brand | Yokota |
| Airconsumption (l/s) | 6,0 |
| Weight (kg) | 1,8 |
| Shank size (mm) | V^12,7 x 16 x 28 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

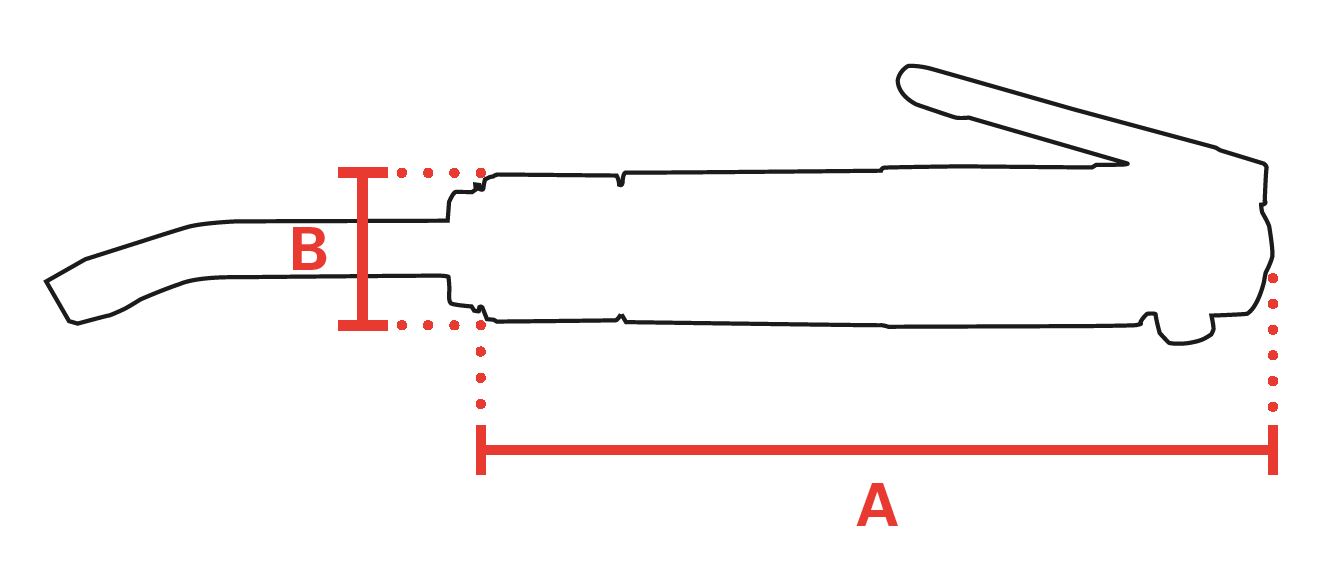

| mm A | 310 |
| mm B | 43 |
| Stroke (mm) | 22 |
| Strokes per minute | 4000 |
| Energy (J/Stroke) | 5,1 |
| Hosediameter (mm) | 6,5 |
| Piston (mm) | 25 |
| Safety standard | EN ISO 11148-4 |
| Vibration standard | EN ISO 28927-9 |
| Vibration value (m/s²) | 9,9 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 115 |
| Sound power (dB(A)) | 126 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981000050 |
Manuals
| F-25-NL.pdf | Download |
| F-25-DE.pdf | Download |
| F-25-EN.pdf | Download |
| F-25-FR.pdf | Download |
| F-25 - QR Card.pdf | Download |
