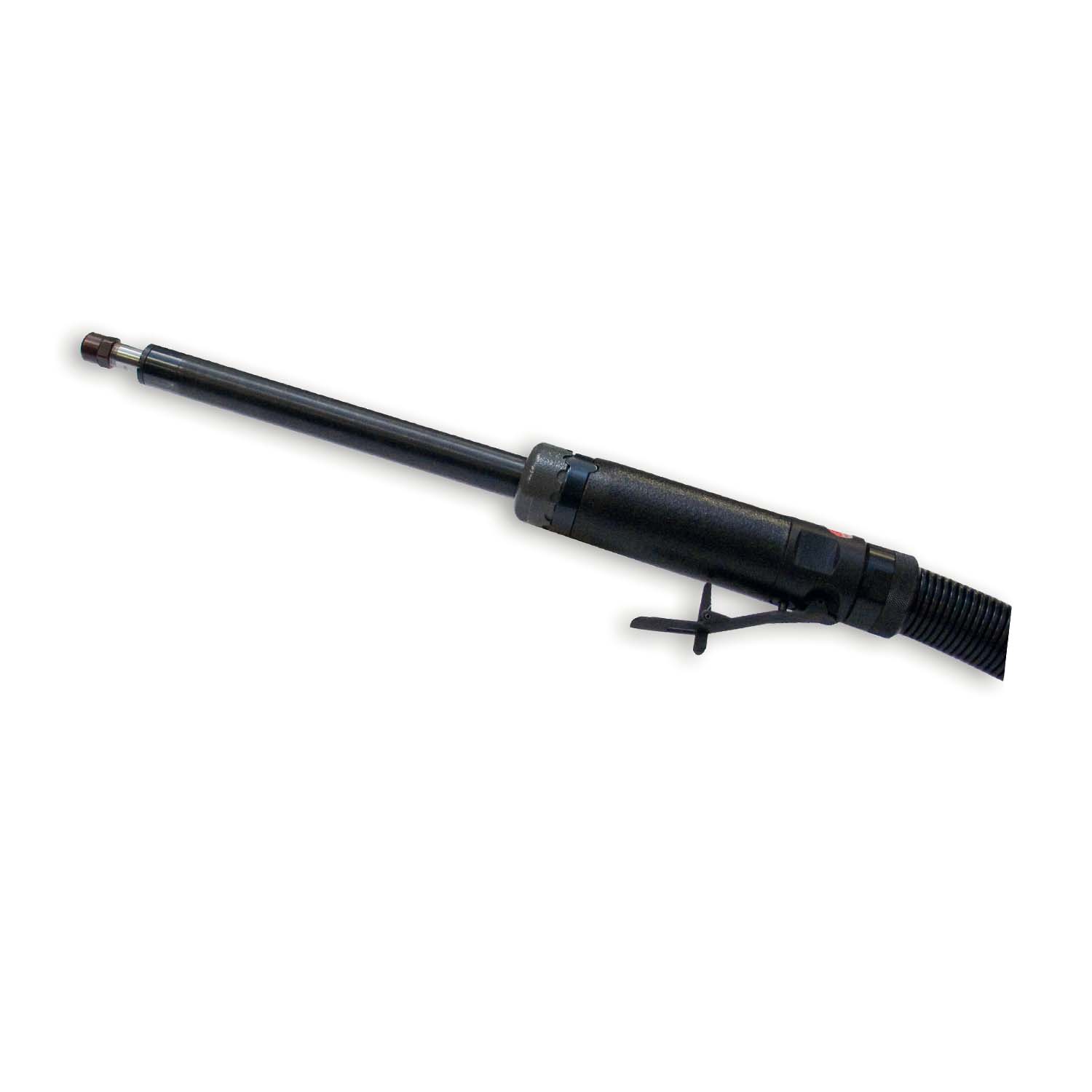

Characteristics:
* The compact collet chuck and nut are designed for industrial work in confined spaces.
* The chuck takes 6 mm shafts and 3 mm shafts
* The exhaust air is redirected from the user through a hose with muffler
* The rubber cover of the motorhousing isolates against cold and vibrations
* The grinders have a safety lever
* Extra long shaft
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
3425-001-00
Collet chuck 6mm
3425-001-01
Collet chuck 3mm
3425-001-02
Collet chuck 1/4
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Red Rooster Industrial |
| RPM | 20000 |
| Airconsumption (l/s) | 12,3 |
| Weight (kg) | 0,95 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

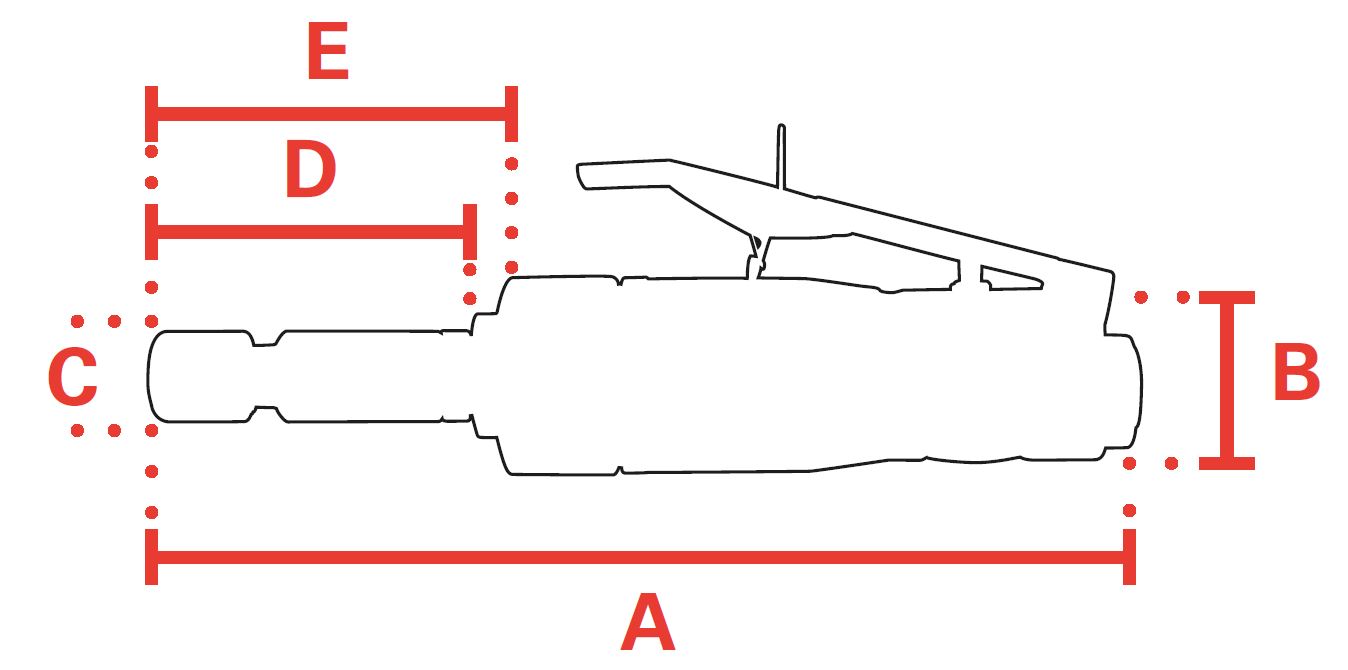

| mm A | 390 |
| mm B | 40 |
| mm C | 12 |
| mm D | 215 |
| mm E | 215 |
| Hosediameter (mm) | 10 |
| Collet chuck (mm) | 3 / 6 |
| Power (kW) | 0,50 |
| Wheel size (mm) | 35 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-12 |
| Vibration value (m/s²) | 3,4 |
| Vibration uncertainty (m/s²) | 0,83 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 80,7 |
| Sound power (dB(A)) | 91,7 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981172023 |
