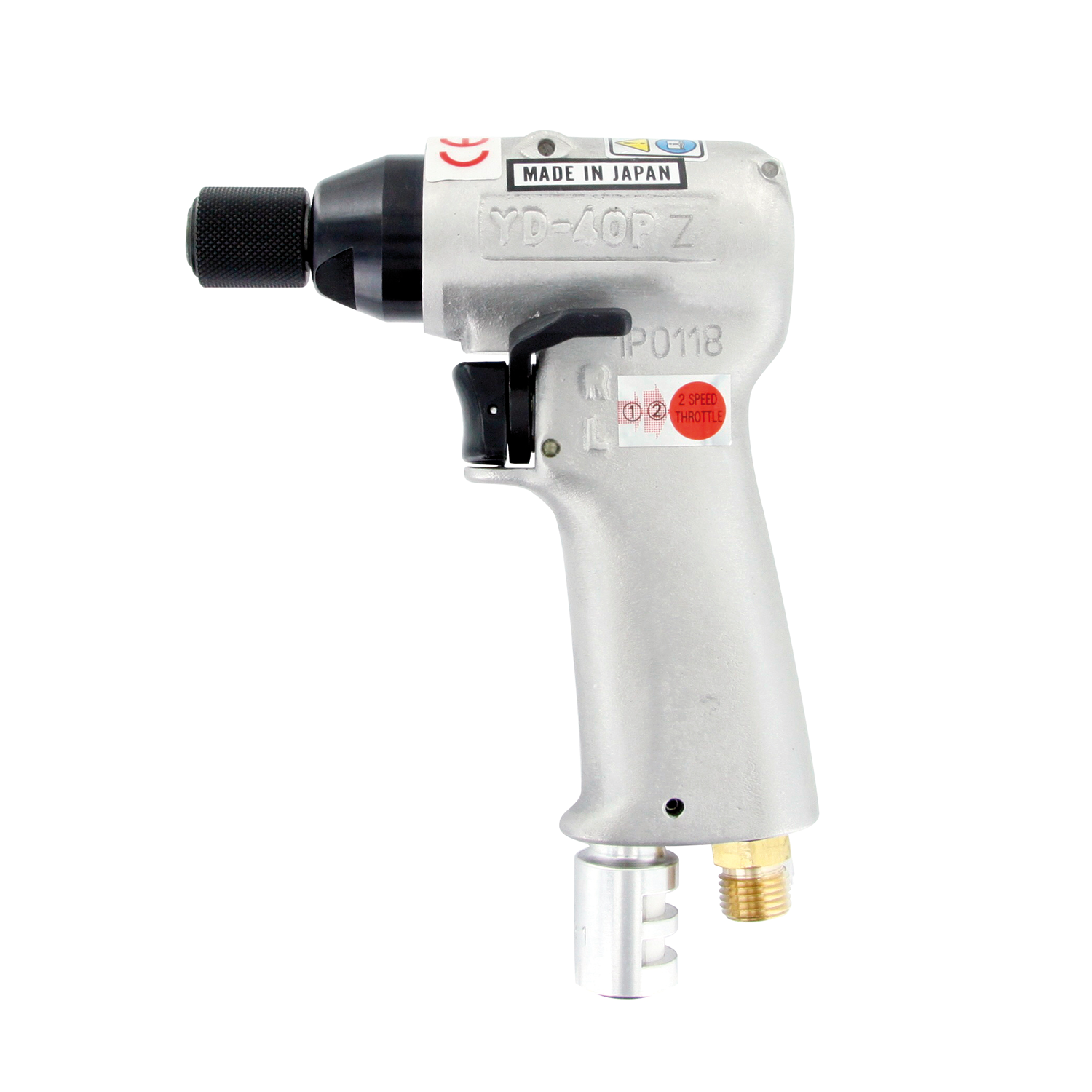

This Yokota screwdriver is developed for assembly in wood-working and furniture-industry. It has a 2-hammer clutch for powerfull operation.
Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* Power adjustable in 4 positions
* Exhaust through isolated grip, with silencer
* Free of reaction forces
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Bolt capacity (mm) | 4 |
| RPM | 14000 |
| Torque (Nm) | 15 |
| Airconsumption (l/s) | 1,6 |
| Weight (kg) | 0,52 |
| Hexagon | 1/4" |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

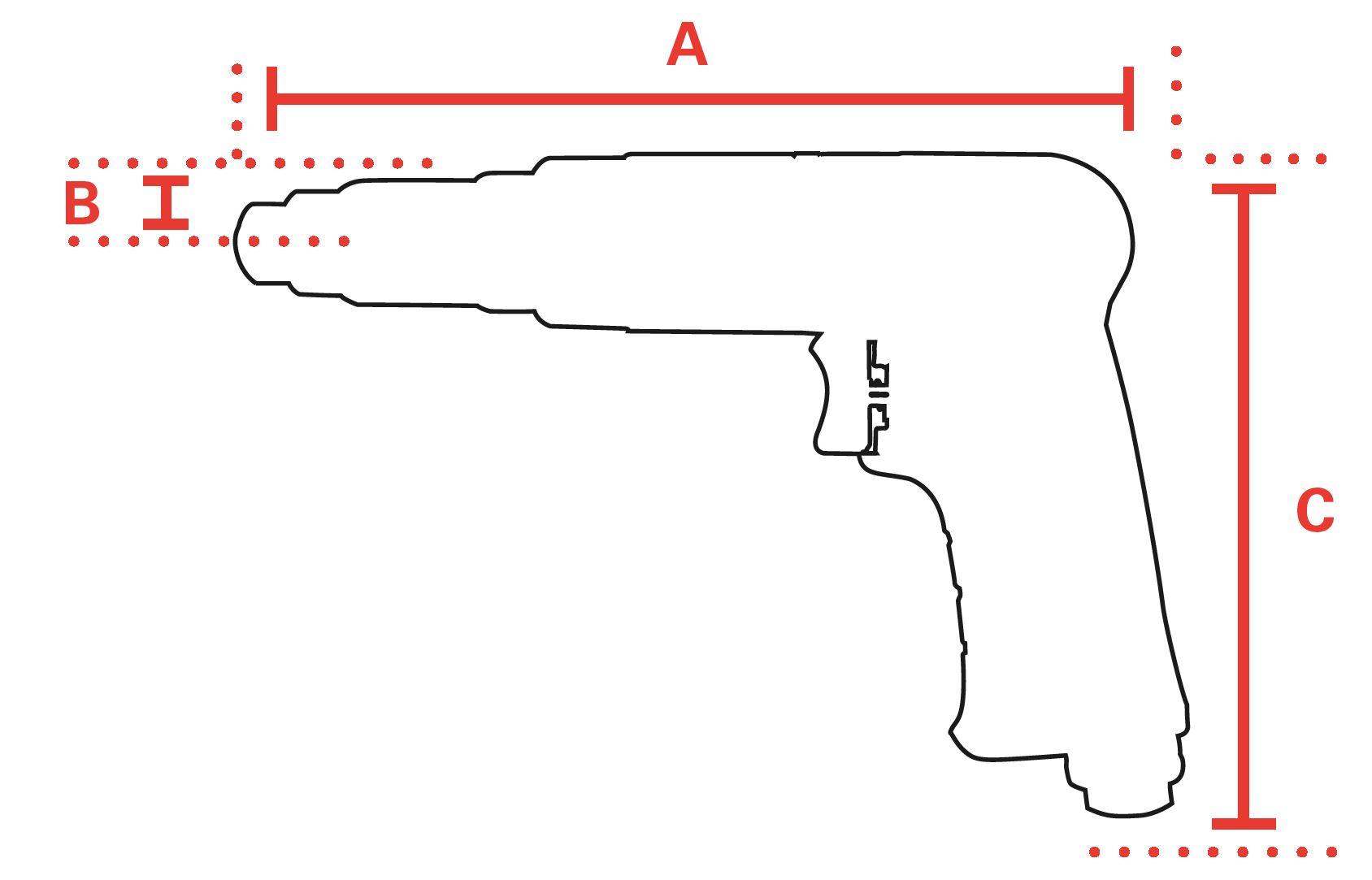

| mm A | 107 |
| mm B | 18 |
| mm C | 125 |
| Hosediameter (mm) | 6,5 |
| Execution | Pistool |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 3,7 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 89 |
| Sound power (dB(A)) | 100 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981106462 |
