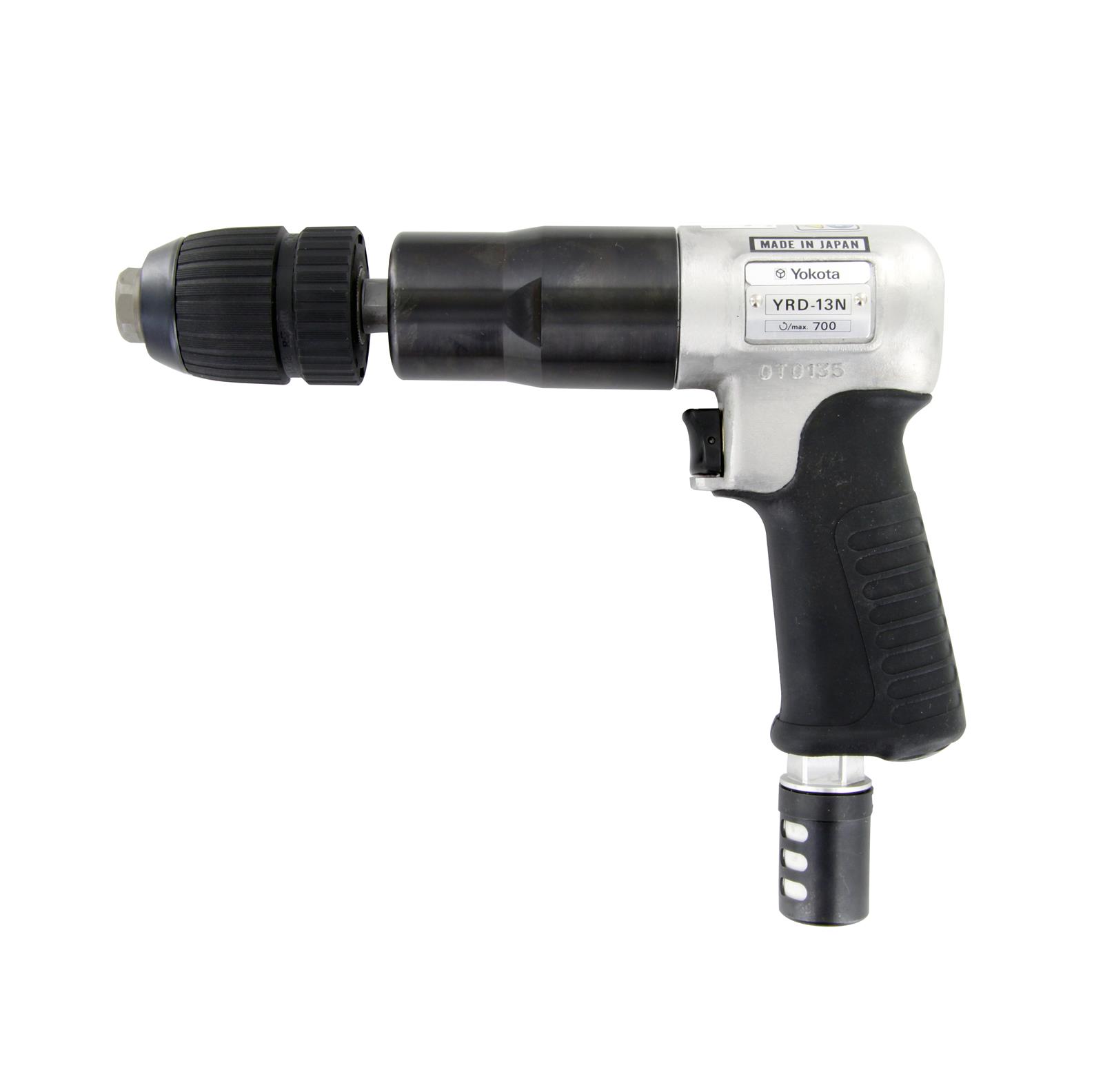

This Yokota drill is suitable for industrial applications. The two-step trigger allows easy setting of the drill tip at first stage, and afterward high rpm for maximum drilling-speed.
Characteristics:
* Compact and lightweight
* Low vibrationlevel
* Exhaust through grip, with silencer
* Ergonomic design
* Includes 13 mm key-less drill chuck
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
BHS-13MM
Drill Chuck (Quick Change) 1/2X20Nf
SM-71240CPL
Side Handle Cpl
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| RPM | 700 |
| Airconsumption (l/s) | 13,3 |
| Weight (kg) | 1,60 |
| Drill chuck | 1/2" x 20UNF |
| Capacity steel (mm) | 13 |
| Direction | R |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

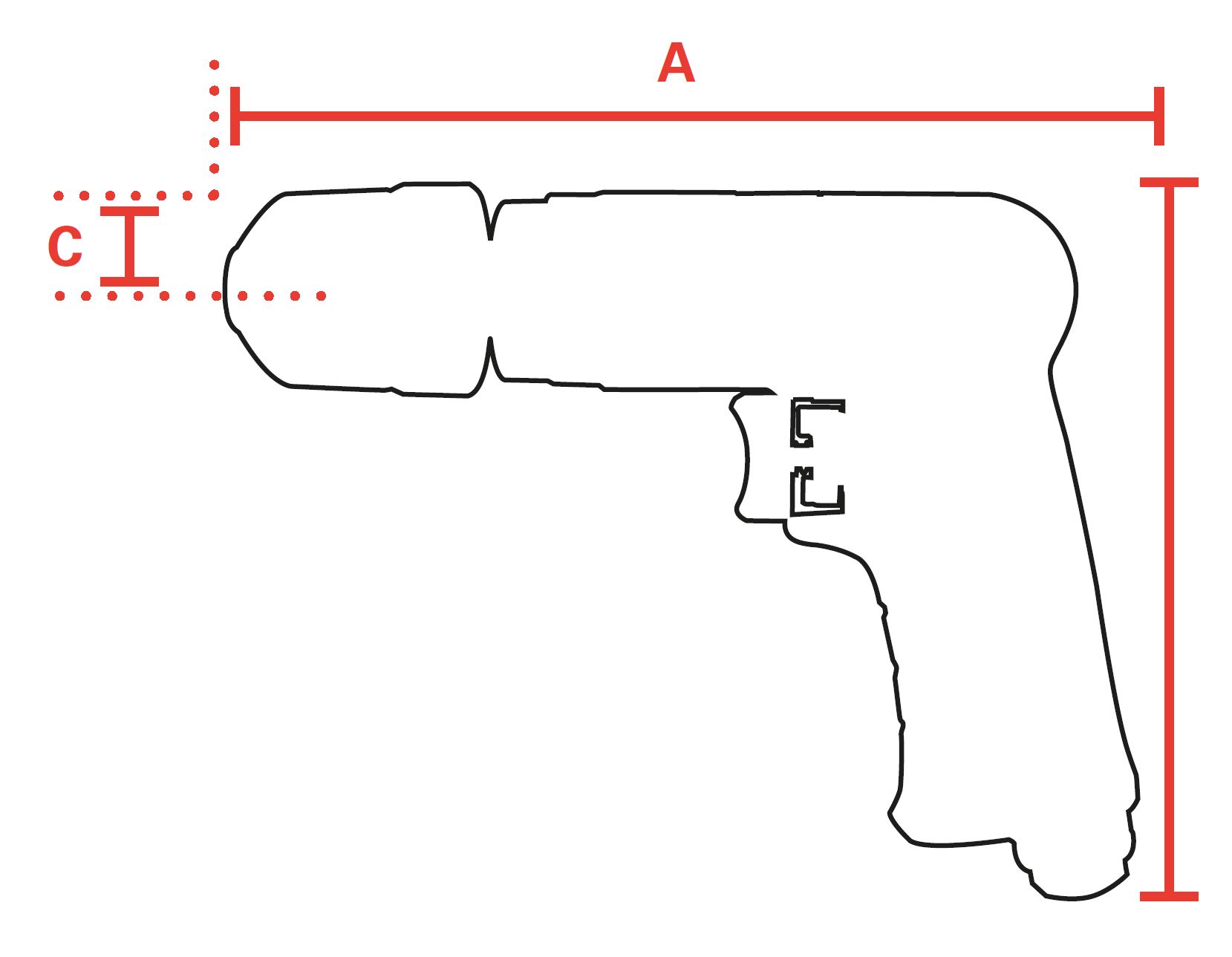

| mm A | 218 |
| mm B | 145 |
| mm C | 25 |
| Hosediameter (mm) | 10 |
| Power (kW) | 0,50 |
| Safety standard | EN ISO 11148-3 |
| Vibration standard | EN ISO 28927-5 |
| Vibration value (m/s²) | < 2,5 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 80 |
| Sound power (dB(A)) | 91 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981000661 |
Manuals
| YRD-13NBK-SV.pdf | Download |
| YRD-13NBK-IT.pdf | Download |
| YRD-13NBK-DE.pdf | Download |
| YRD-13NBK-DA.pdf | Download |
| YRD-13NBK-SK.pdf | Download |
| YRD-13NBK-FI.pdf | Download |
| YRD-13NBK-NL.pdf | Download |
| YRD-13NBK-PT.pdf | Download |
| YRD-13NBK-EL.pdf | Download |
| YRD-13NBK-FR.pdf | Download |
| YRD-13NBK-PL.pdf | Download |
| YRD-13NBK-EN.pdf | Download |
| YRD-13NBK-NO.pdf | Download |
| YRD-13NBK-ES.pdf | Download |
| YRD-13NBK - QR Card.pdf | Download |
