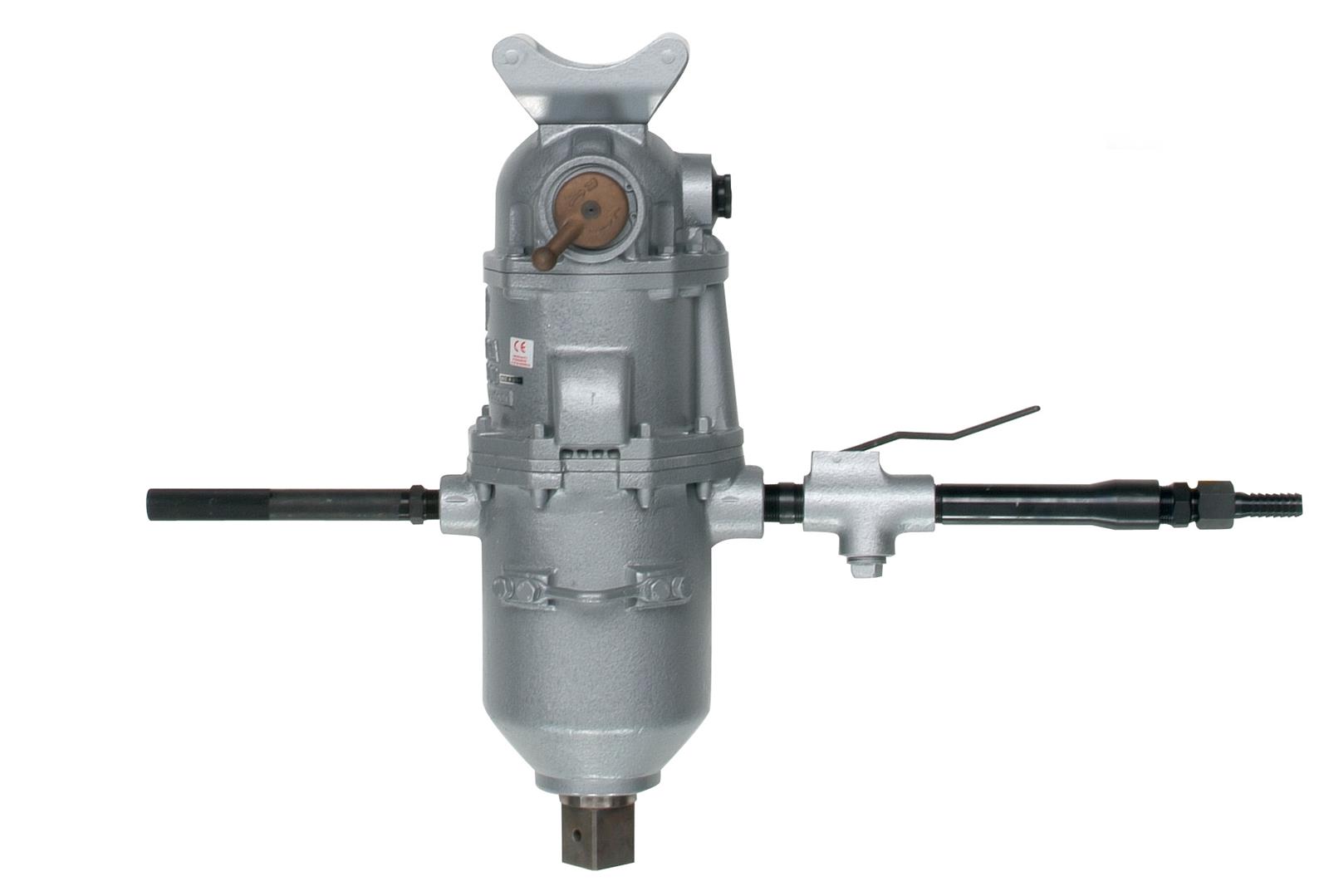

This Yokota Impact Wrench is designed and produced for industrial applications. A top-model that the production can rely on for all days. Simple design, best materials and the highest Qualitystandards during production are basic for this 2-Hammer Impact Wrench, resulting in high life even for Heavy Duty usage.
Characteristics:
* Power adjustable
* Air exhaust through silencer
* Including hangerbolt
Related products
AC60-F10DM-8-B
Modular FRL Unit
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Square Drive | 2 1/2" |
| Version | H |
| Bolt capacity (mm) | 130 |
| Impact mechanism | 2-Hammer |
| RPM | 1800 |
| Torque (Nm) | 33000 |
| Airconsumption (l/s) | 68,0 |
| Weight (kg) | 115,0 |
| Airconnection | PT 1" |
| Airpress max. (MPa) | 0,63 |

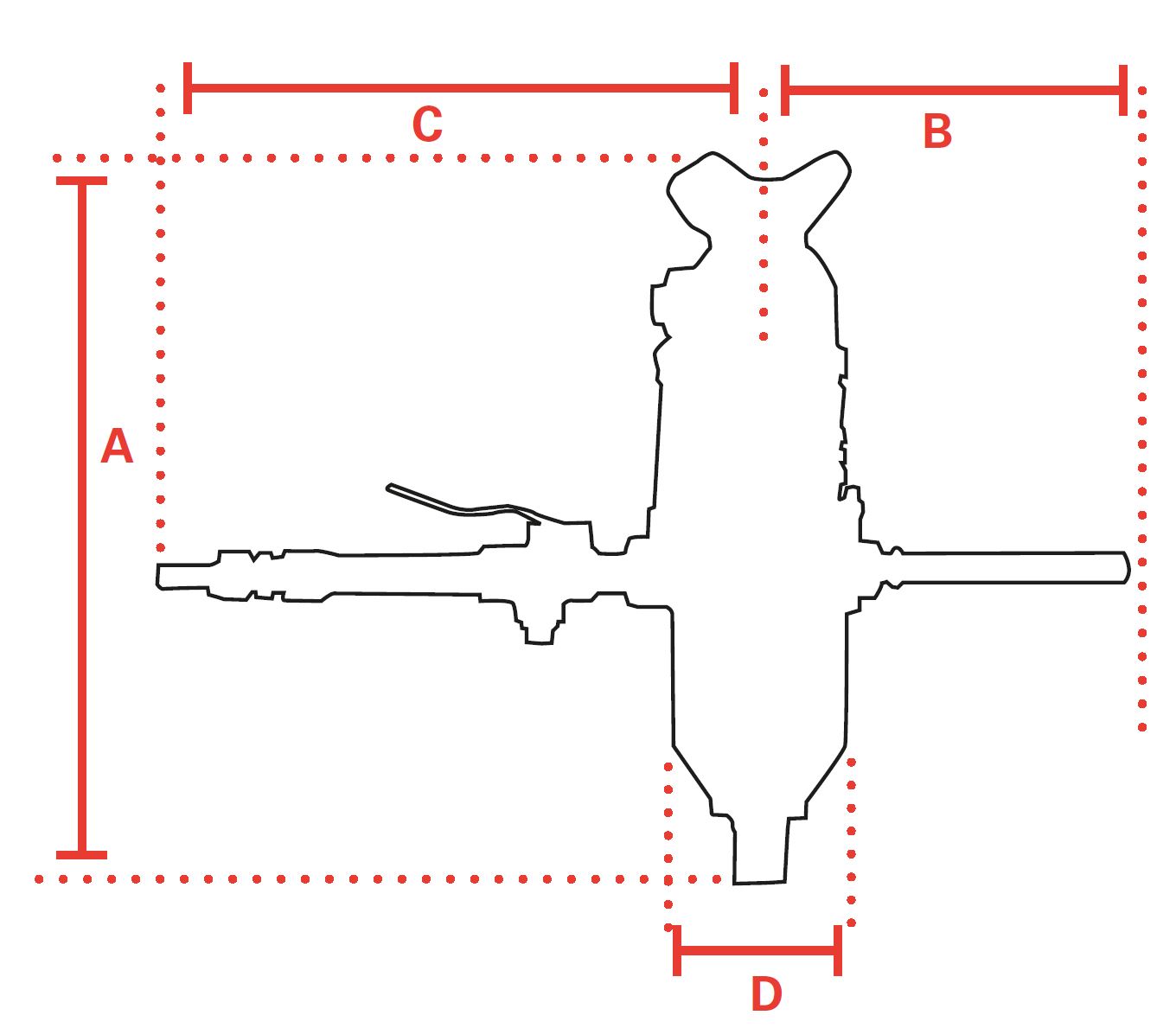

| mm A | 827 |
| mm B | 527 |
| mm C | 461 |
| mm D | 226 |
| Hosediameter (mm) | 25 |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 19,5 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 108 |
| Sound power (dB(A)) | 119 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981179688 |
