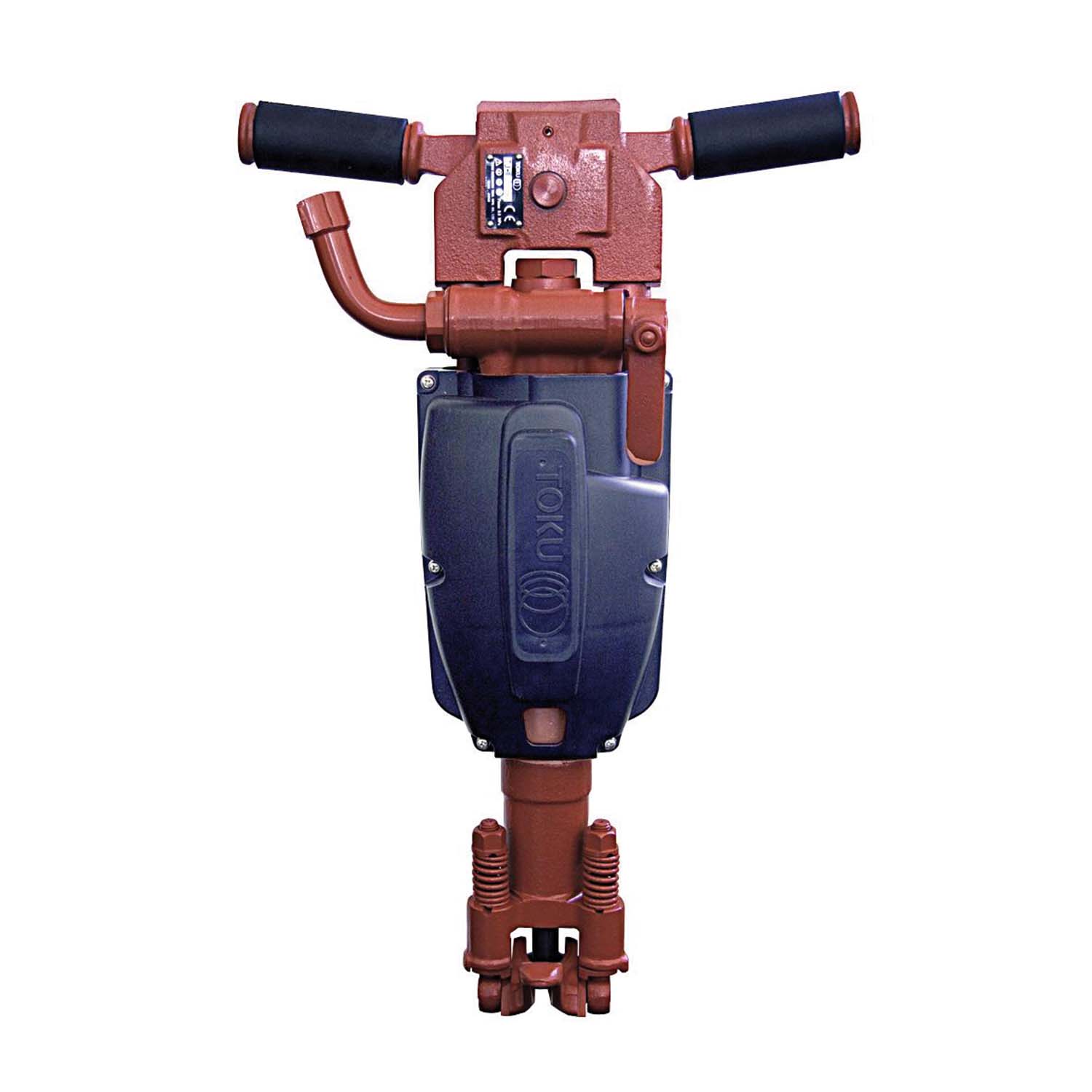

This vibrationreduced rockdrill of Toku has a latch as retainer. Applicable for time-consuming jobs. High blow-energy. To be used in construction sites and renovations.
Characteristics:
* Ergonomic design, well balanced
* Compact quality tool
* Equipped with exhaust muffler
Related products
CB2261510500
Drill bars, TL= 610 NL=385
CB2260022
Monobloc-Drills, Ø22mm L=600mm
CB2261510800
Drill bars, UL=800
CB6126300032
Drill bit crosshead, Konus II , Dia
CB6126300030
Drill bit crosshead, Konus II , Dia
CB6126300034
Drill bit crosshead, Konus II , Dia
CB6126300050
Drill bit crosshead, Konus II , Dia
CB2261512000
Drill bars, NL=2000
CB6126300040
Drill bit crosshead, Konus II , Dia
Specifications
| Brand | Toku |
| RPM | 250 |
| Airconsumption (l/s) | 26 |
| Weight (kg) | 17,7 |
| Shank size (mm) | H^22 x 108 |
| Airconnection | PT 3/4" |
| Airpress max. (MPa) | 0,63 |

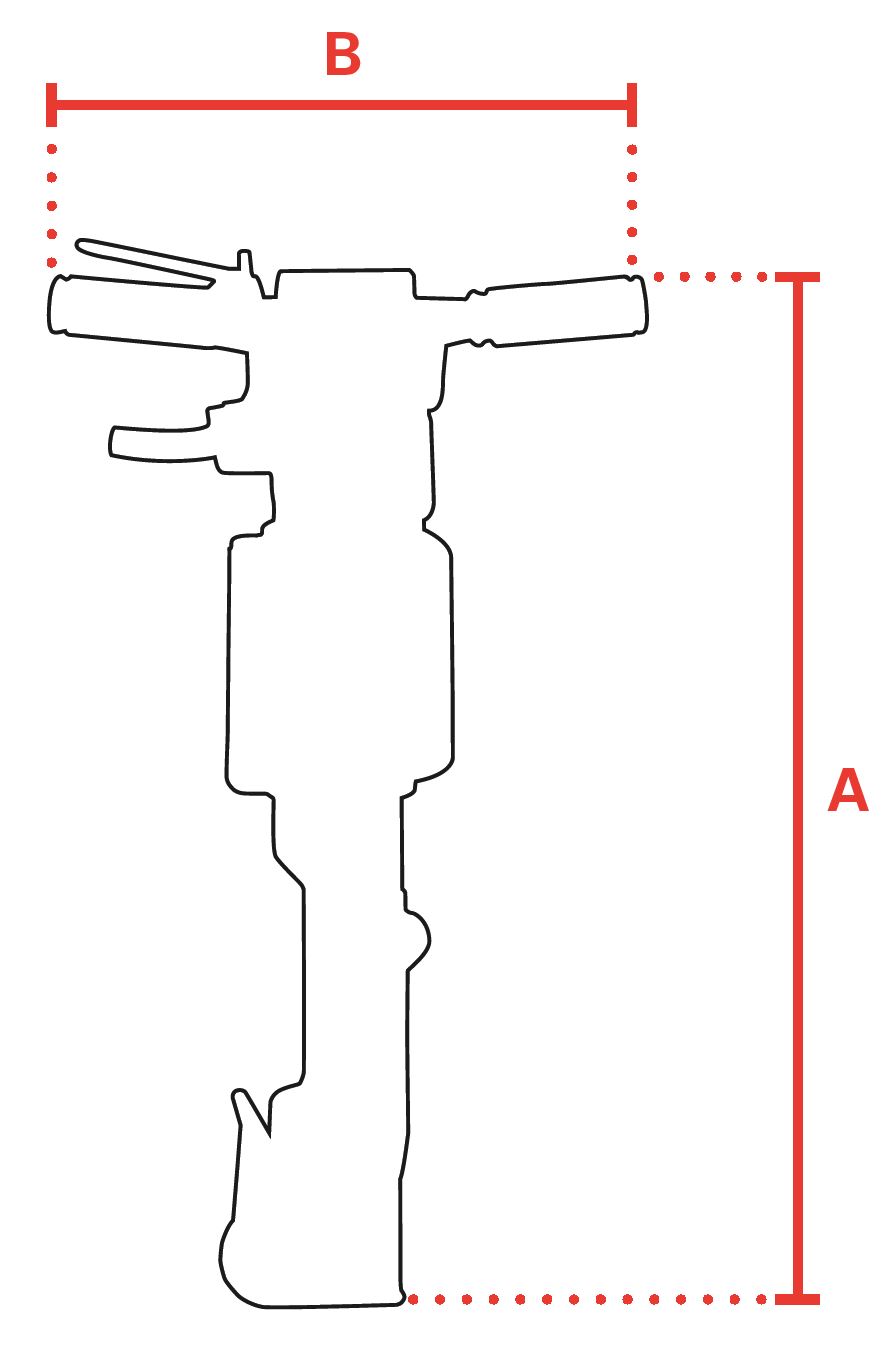

| mm A | 468 |
| mm B | 340 |
| Stroke (mm) | 45 |
| Strokes per minute | 2450 |
| Energy (J/Stroke) | 44,7 |
| Hosediameter (mm) | 19 |
| Piston (mm) | 54 |
| Safety standard | EN ISO 11148-5 |
| Vibration standard | EN ISO 28927-10 |
| Vibration value (m/s²) | 10,2 |
| Vibration uncertainty (m/s²) | 1,51 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 111 |
| Sound power (dB(A)) | 122 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981160051 |
