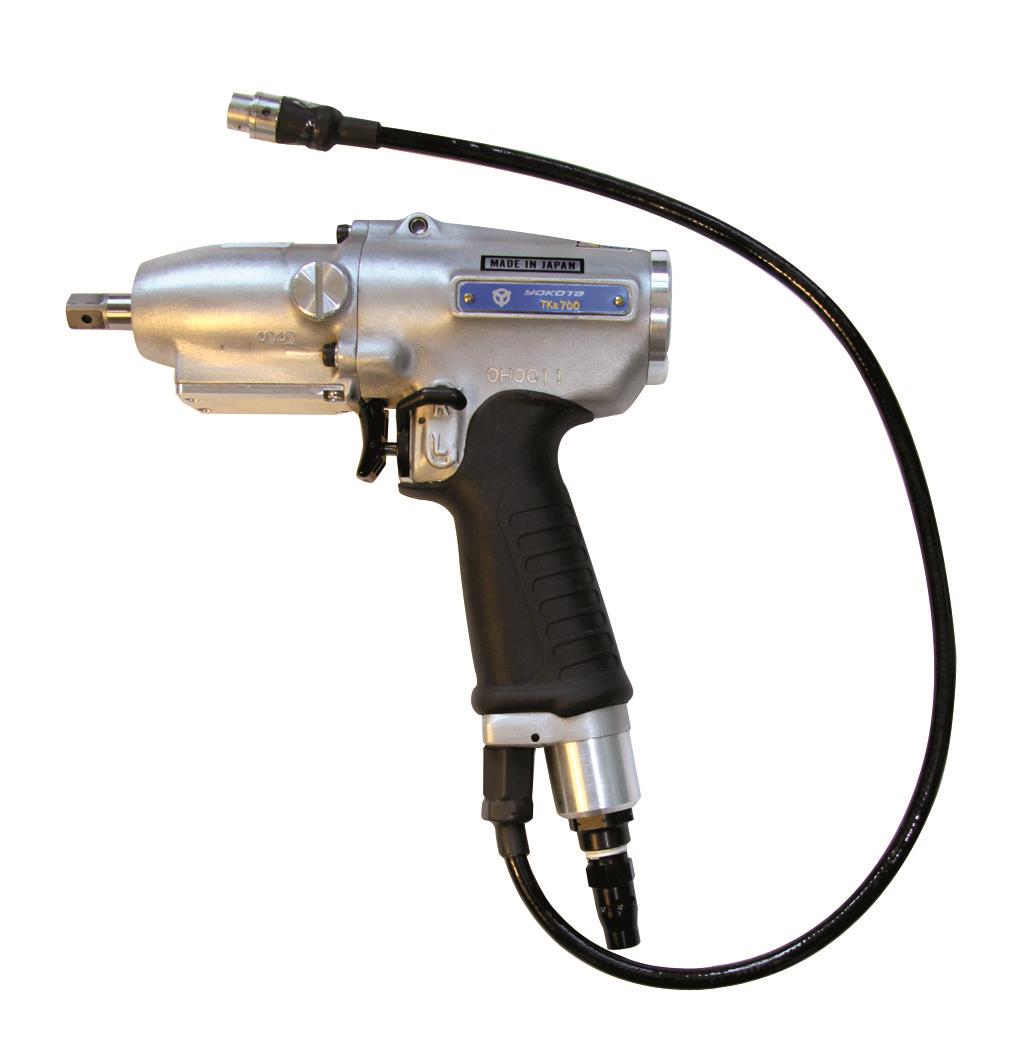

Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. Product liability is essential to carmakers. All tightened
joints have to be correct. For this reason all bolted joints must be counted, documented and, of course, tightened with the right clamping force. In order to do this, you need an impulse wrench (with a built-in transducer and angle-encoder on the main shaft) connected to a controller. If the controller establishes that the tightened joints do not meet the specifications, it can give a line-stop signal and the
joints have to be checked manually.
* Very low weight / torque ratio
* High speed fastening
* No-lube airmotor
* No Kickback
* Acoustic signals on back-cover

Related products


Spring balancer 1,0-3,0 kg


Tool Holder

Related accessories


Hanger Ring Heavy Duty


Electronic valve for 2-step tightening


Tool Holder, diameter 58mm


Rubber protection cover TKa600/700

YETC-2 SVD 3/8

Solenoid valve set


Brand Yokota
Bolt capacity (mm) 6 - 8
RPM 7000
Torque (Nm) 24 - 33
Airconsumption (l/s) 5,3
Weight (kg) 1,34
Airconnection PT 1/4"
Airpress max. (MPa) 0,63

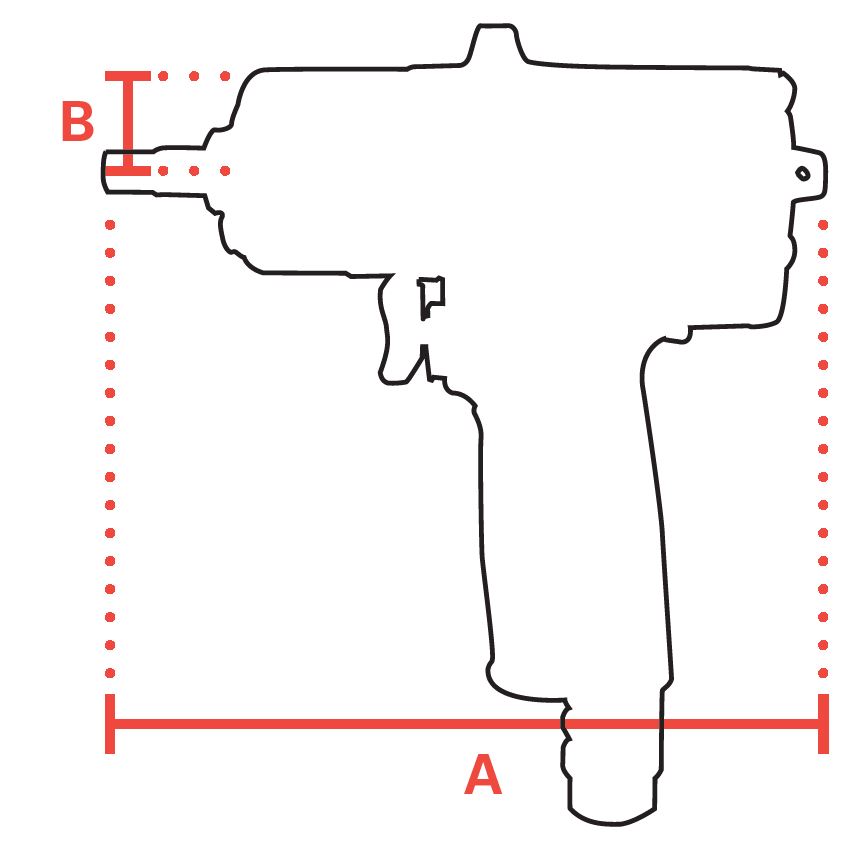

mm A 189
mm B 21
Hosediameter (mm) 6,5
Square Drive / Hexagon 1/4" Hex
Safety standard EN ISO 11148-6
Air consumption no load (l/s) 6,9
Vibration standard EN ISO 28927-2
Vibration value (m/s²) < 2,5
Vibration uncertainty (m/s²) 1
Sound standard ISO 15744
Sound pressure (dB(A)) 75
Sound uncertainty (dB(A)) 3
EAN 8717981275823


TKA700A-DE.pdf Download
TKA700A-FR.pdf Download
TKA700A-NL.pdf Download
TKA700A-EN.pdf Download
TKA700A - QR Card.pdf Download
