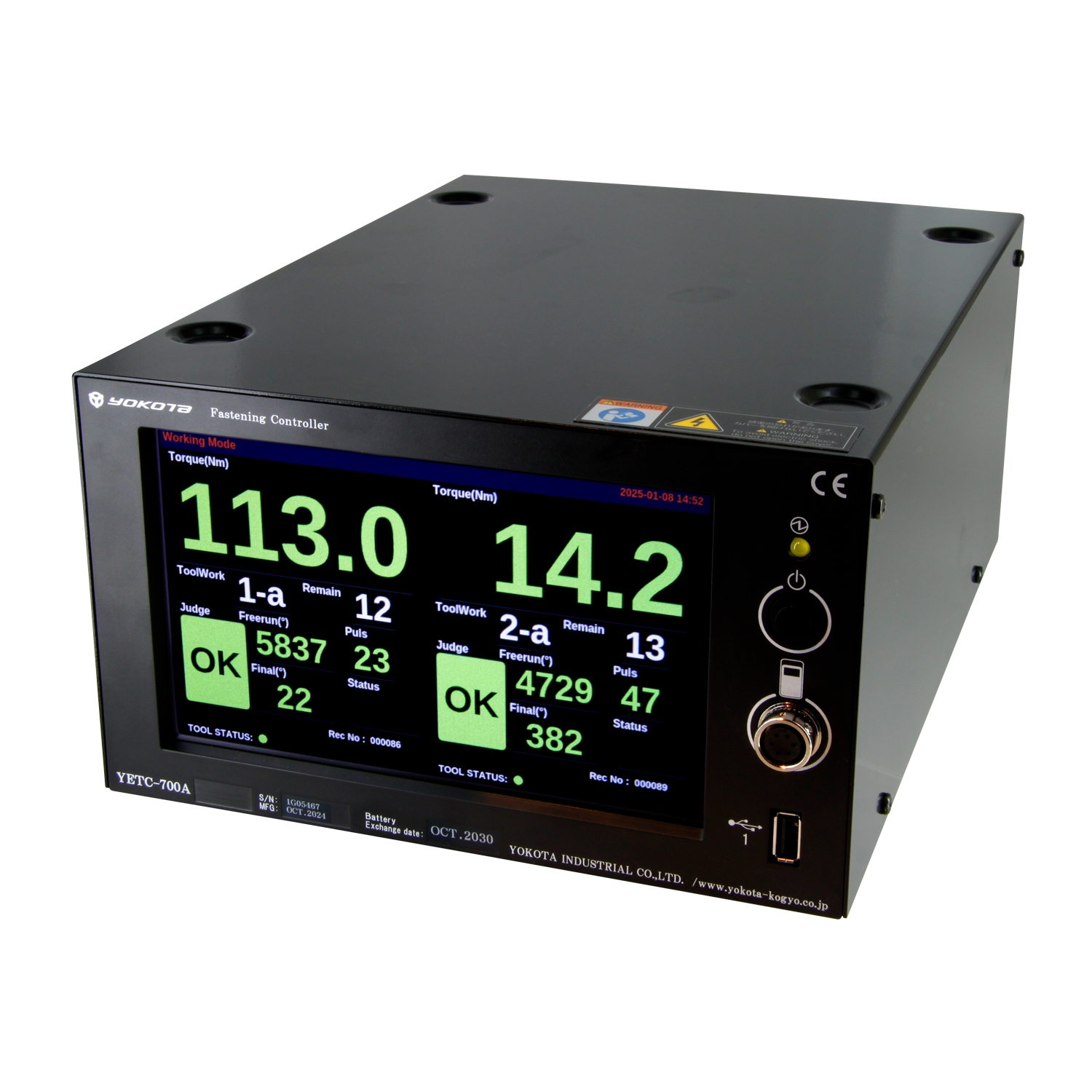

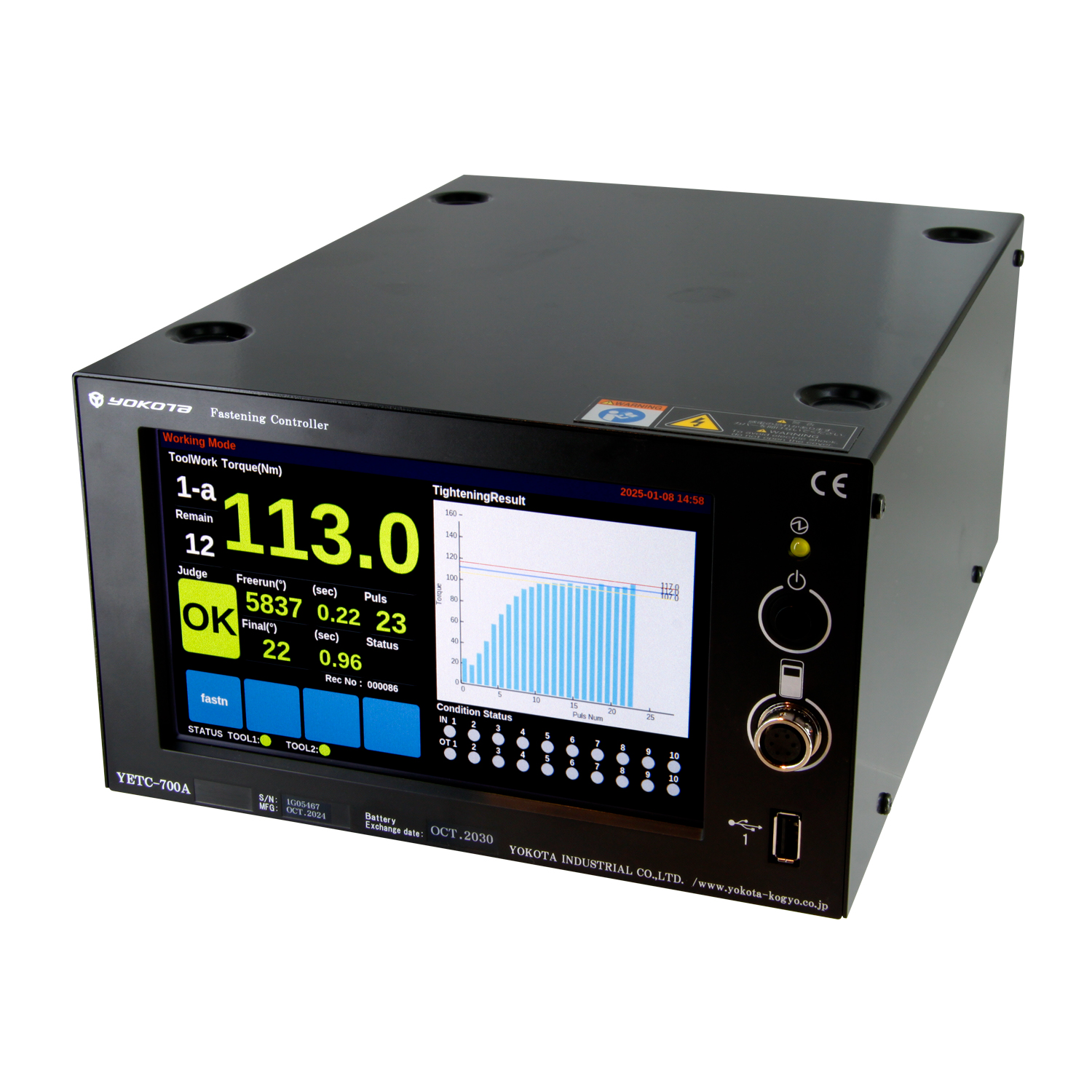

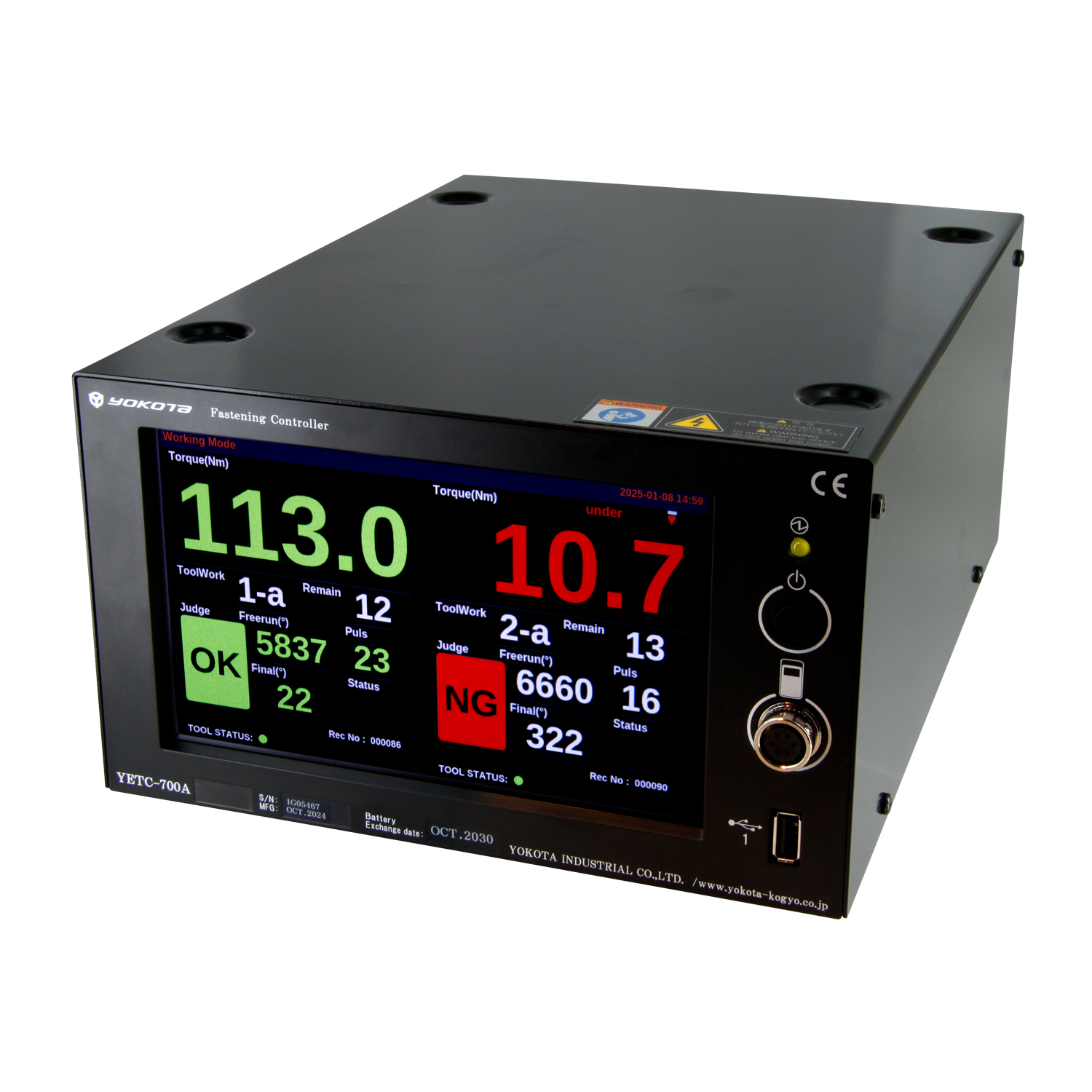

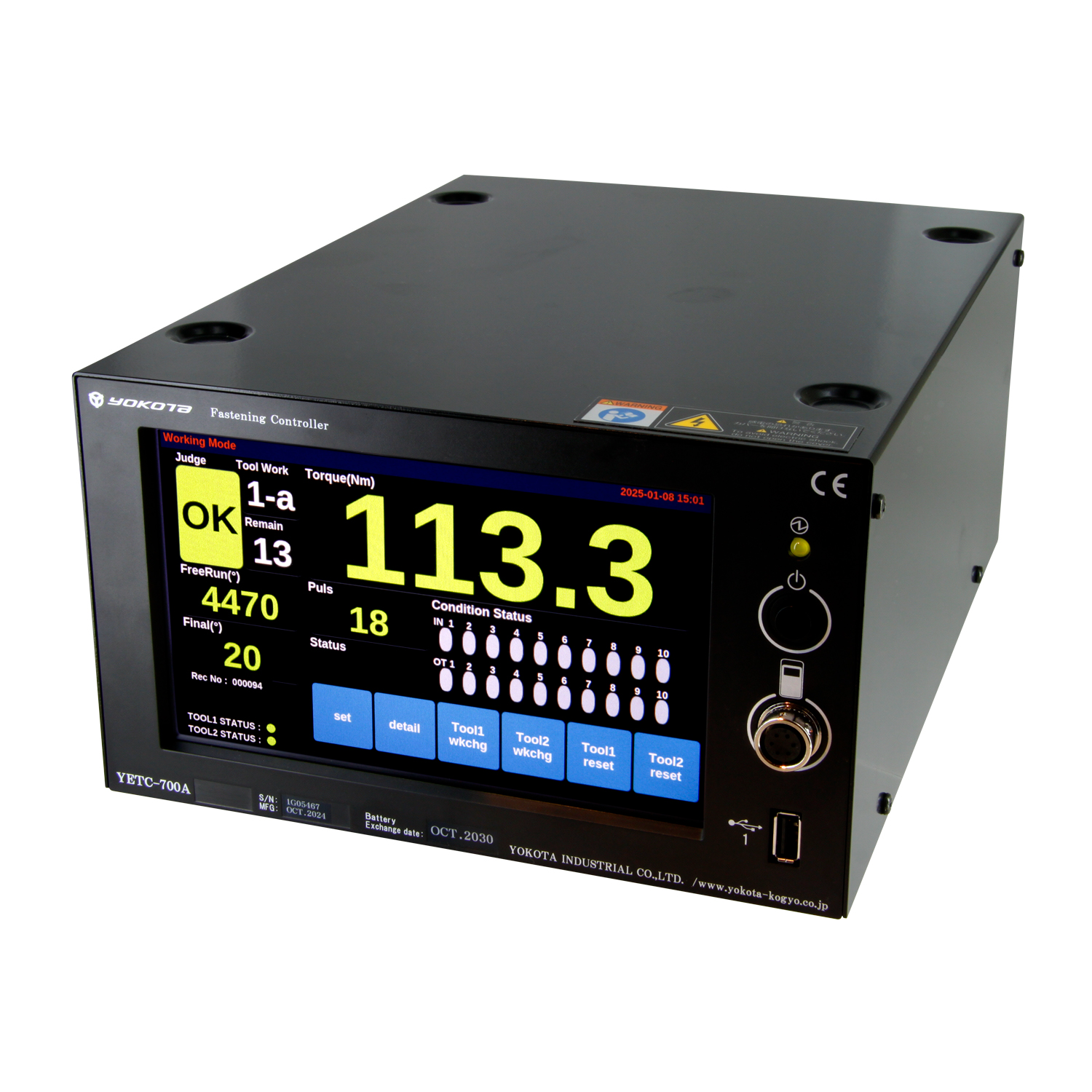

2 tools (TKa Series) can be connected and operated simultaneously. 20 work groups are available per 1 tool. MMI by Touch screen panel 7”. Memory contains up to 100.000 tightening results, can contain up to 50 waveform data and 50 Dynamic torque data. Also setting changes history and error information is stored in memory.

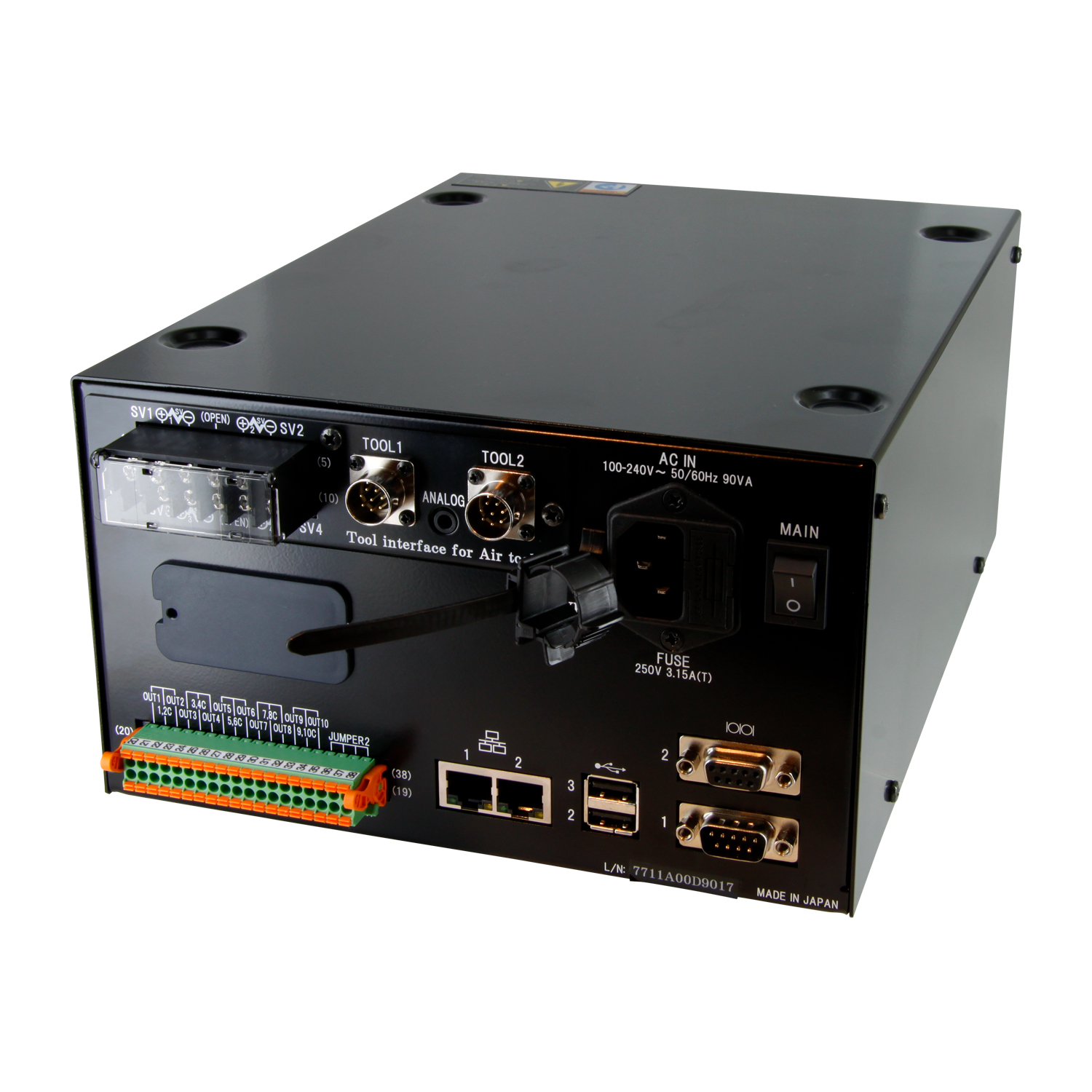

Connectivity:
2 x Serial connector RS-232
2 x LAN terminal RJ-45
I/O terminal block (10 inputs, 10 outputs)
3 x USB-A type connector
Connector for PC-2 Programming Console
2 x Tool connector
2 x solenoid valve terminal
Related products
Related accessories
PC-2
Programming console
7802-1580-00-09
Extenshion Cable BU 10
SO-ITV3050-404BS3-CPL
Electronic valve for 2-step tightening
7802-1581-00-08
Tool Cable BU 10
YETC-2 SVD 3/8
Solenoid valve set
Specifications
| Brand | Yokota |
| Weight (kg) | 3,9 |
| mm D | 277 |
| mm H | 130 |
| mm W | 210 |
| Power Supply (V) | AC 100 ~ 240V, 50/60Hz |
| EAN | 8717981456529 |
Manuals
| YETC-700A-FR.pdf | Download |
| YETC-700A-DE.pdf | Download |
| YETC-700A-DA.pdf | Download |
| YETC-700A-PL.pdf | Download |
| YETC-700A-FI.pdf | Download |
| YETC-700A-EN.pdf | Download |
| YETC-700A-NO.pdf | Download |
| YETC-700A-ES.pdf | Download |
| YETC-700A-NL.pdf | Download |
| YETC-700A-EL.pdf | Download |
| YETC-700A-PT.pdf | Download |
| YETC-700A-SV.pdf | Download |
| YETC-700A-SK.pdf | Download |
| YETC-700A-IT.pdf | Download |
| YETC-700A - QR Card.pdf | Download |
