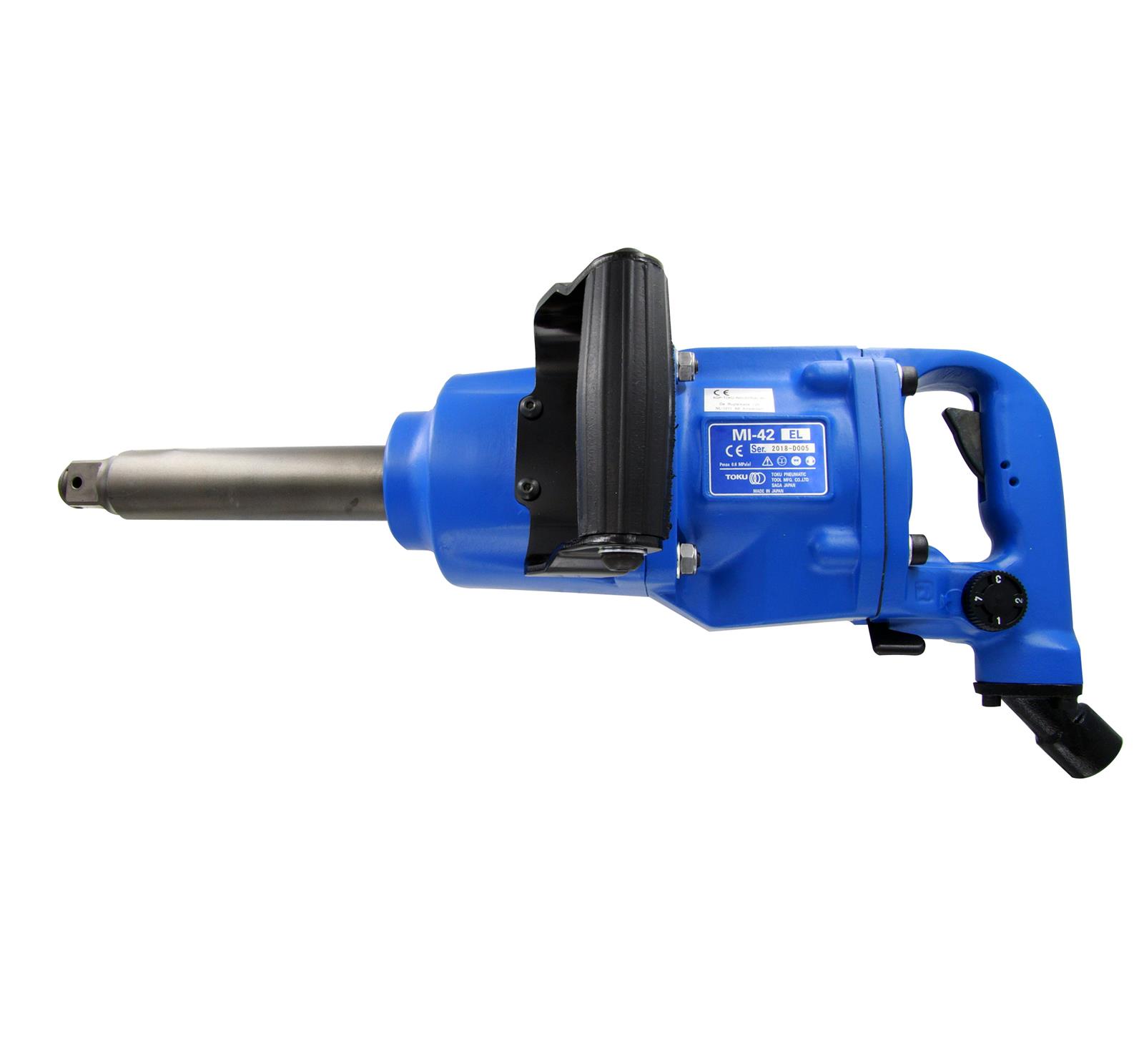

This industrial impact wrench by Toku has proven capabilities. The MI-42ELR is developed for tightening and untightening apllications. The Twin Hammer mechanism can virtually not be damaged hence applicable for heavy duty applications. The energy is directly converted to the anvil for maximum power and minimal maintenance. The tool is especially suitable for use in heavy jobs in the tire industry.
Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* Power adjustable, 4 positions
* Long anvil

Related products

DO0100-1-007

Socketset Long 1" 7-Parts

AC40A-F04-D

Modular FRL unit



Related accessories

ATLUB

Air Tool Oil, 1 litre

DOESR-3

Ret Ring



Specifications

Brand Toku
Square Drive 1"
Version R+H
Bolt capacity (mm) 42
Impact mechanism Twin-Hammer
RPM 3900
Torque (Nm) 2800
Force adjustment R/L 4 Standen
Airconsumption (l/s) 23
Weight (kg) 10,6
Airconnection PT 1/2"
Airpress max. (MPa) 0,63

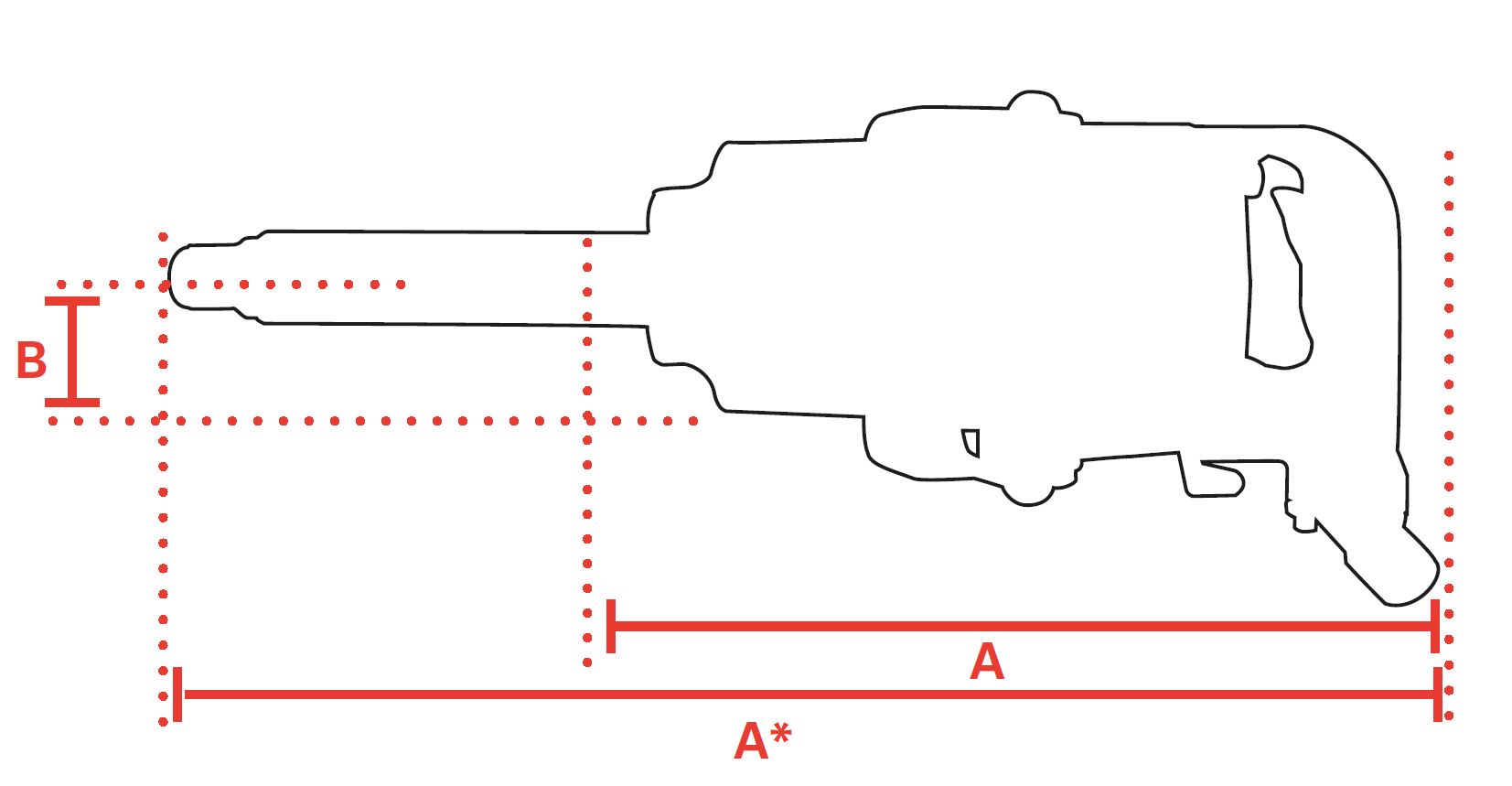

mm B 60
Hosediameter (mm) 13
mm A* 517
Safety standard EN ISO 11148-6
Vibration standard EN ISO 28927-2
Vibration value (m/s²) 15,2
Vibration uncertainty (m/s²) 2,00
Sound standard ISO 15744
Sound pressure (dB(A)) 101
Sound power (dB(A)) 112
Sound uncertainty (dB(A)) 3
EAN 8717981106493



Manuals

MI-42ELR-PL.pdf Download
MI-42ELR-SV.pdf Download
MI-42ELR-DA.pdf Download
MI-42ELR-EL.pdf Download
MI-42ELR-HU.pdf Download
MI-42ELR-NO.pdf Download
MI-42ELR-ES.pdf Download
MI-42ELR-SK.pdf Download
MI-42ELR-DE.pdf Download
MI-42ELR-CZ.pdf Download
MI-42ELR-NL.pdf Download
MI-42ELR-IT.pdf Download
MI-42ELR-FR.pdf Download
MI-42ELR-EN.pdf Download
MI-42ELR-FI.pdf Download
MI-42ELR - QR Card.pdf Download
