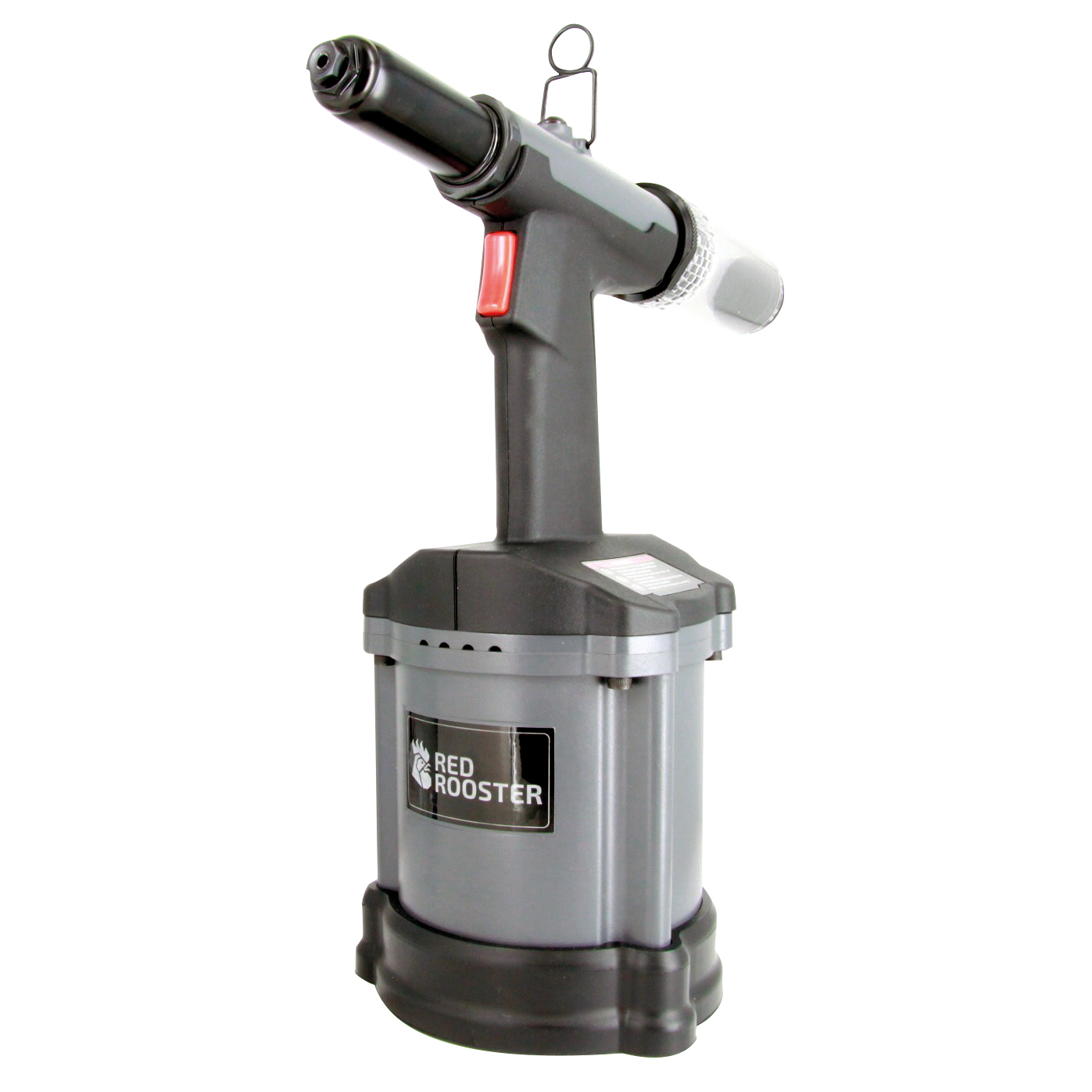

RED ROOSTER Industrial pneumatic-hydraulic blind riveter with collector. Very fast and powerful, with low air consumption per blind rivet. Lightweight and ergonomically designed for optimum ease of use. Comes with multiple nose pieces for various blind riveting capabilities. Blind rivet capacity: 6.4mm, valid for all common materials: Steel, Aluminum, Stainless steel.

Features:
• fast and powerful
• low air consumption
• ergonomic and lightweight
• nose pieces for 4.8 and 6.4 mm
• with vacuum for vertical work
• including keys, oiler, and rubber stand





Related accessories

CP612708

Nose Piece 6,4mm (1/4")

CP1725SK

Service kit

CP612746

Nose Piece for monobolt 4,8mm (3/16

CP612706

Nose Piece 4,8mm (3/16")

CP612748

Nose Piece for monobolt 6,4mm (1/4"



Specifications

Brand Red Rooster Industrial
Weight (kg) 2,5
Max. rivet capacity (mm) 6,4
Sound level (dB(A)) 82
Airconnection PT 1/4"
Airconsumption (liter per cut) 1,6

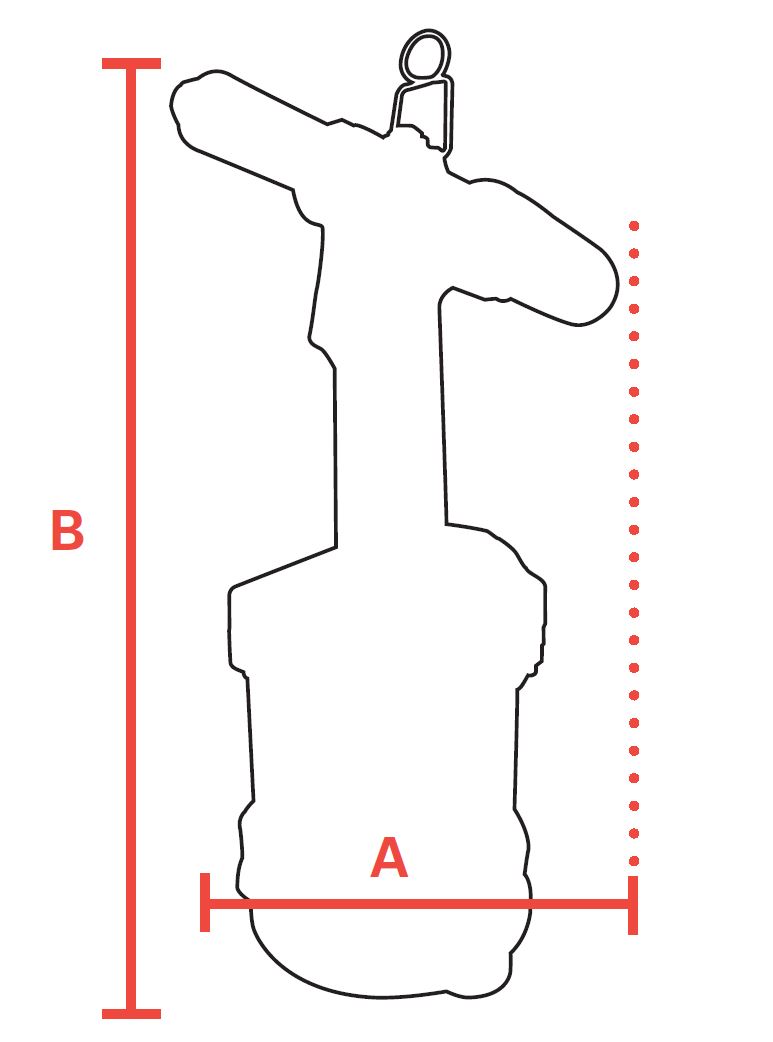

mm A 329
mm B 350
Stroke (mm) 25
Hosediameter (mm) 9.5
Vibration level (m/s²) 1,0
Pulling force (N) 17000
Maximum Airpressure (Bar) 6,3
Safety standard EN ISO 11148-1
EAN 8717981364718
