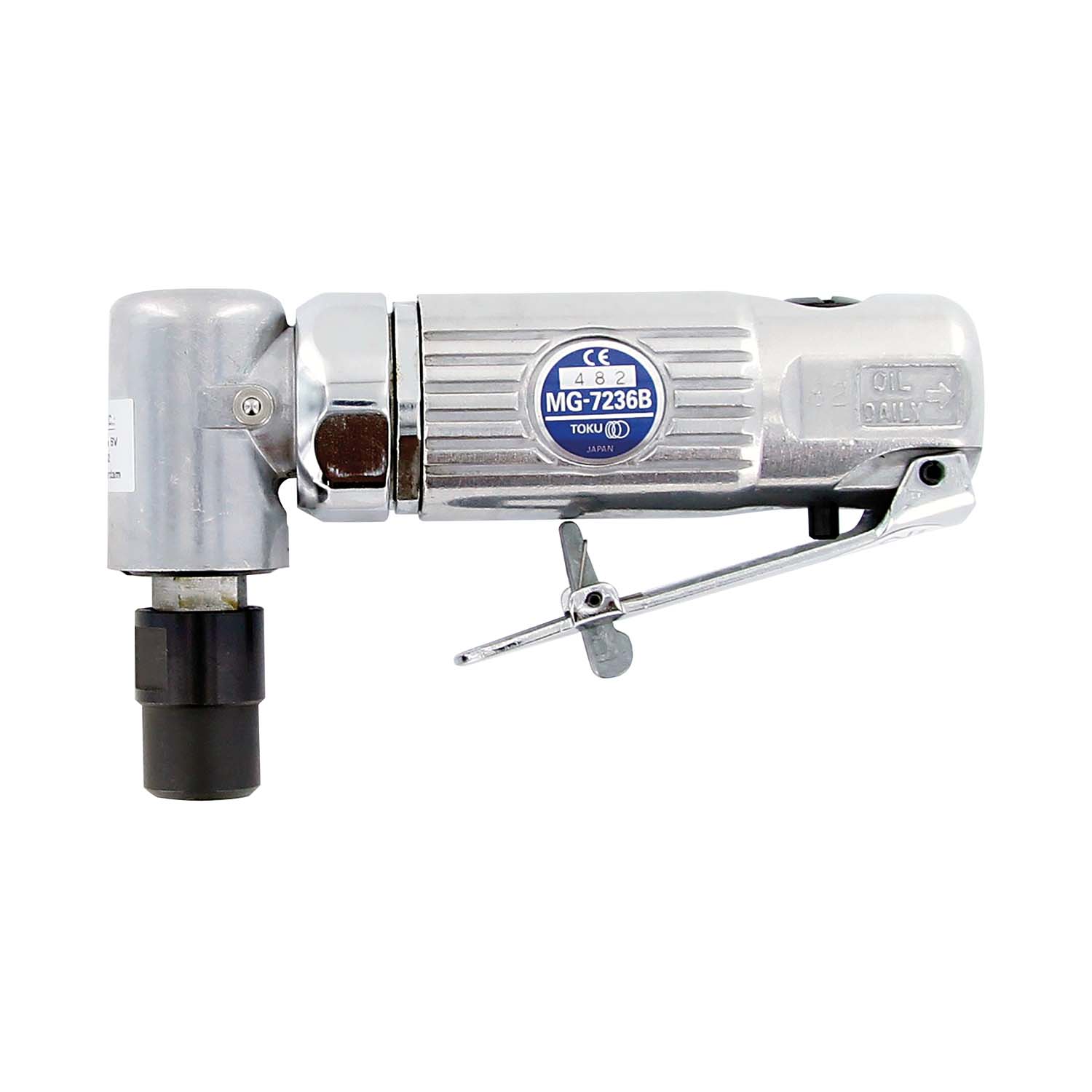

This angled die-grinder by Toku is used with grinding wheels and burrs with 6mm collet chuck. Application area: Light dressing and fettling on fabrications and die setting sets.
Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* low vibrationlevel
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
1001-0659-00-01
Adaptor 3mm for 6mm Chuck
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Toku |
| RPM | 20000 |
| Airconsumption (l/s) | 5,0 |
| Weight (kg) | 0,45 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

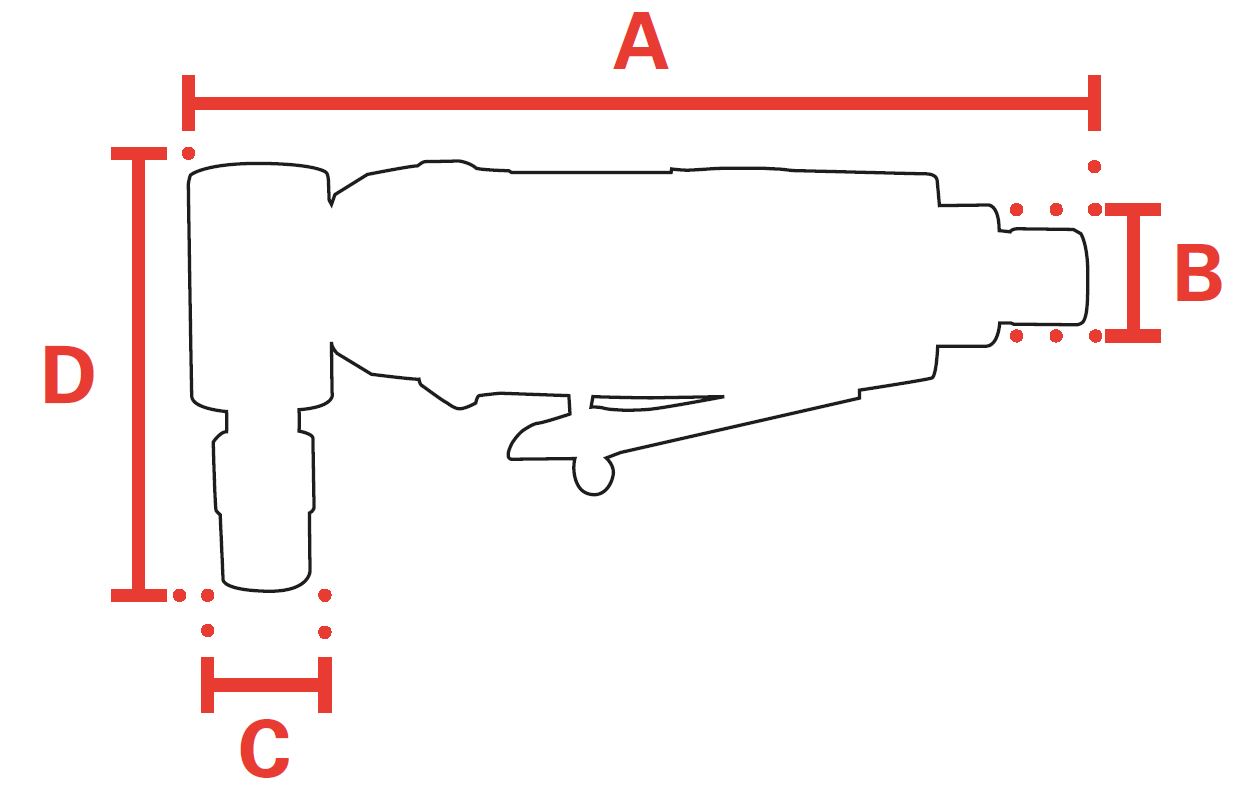

| mm A | 125 |
| mm B | 35 |
| mm C | 17 |
| mm D | 75 |
| Hosediameter (mm) | 6,5 |
| Collet chuck (mm) | 6 |
| Power (kW) | 0,20 |
| Wheel size (mm) | 40 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-12 |
| Vibration value (m/s²) | 2,3 |
| Vibration uncertainty (m/s²) | 0,41 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 94 |
| Sound power (dB(A)) | 105 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981012442 |
Manuals
| MG-7236B-EL.pdf | Download |
| MG-7236B-FI.pdf | Download |
| MG-7236B-EN.pdf | Download |
| MG-7236B-SK.pdf | Download |
| MG-7236B-IT.pdf | Download |
| MG-7236B-ES.pdf | Download |
| MG-7236B-NO.pdf | Download |
| MG-7236B-DA.pdf | Download |
| MG-7236B-DE.pdf | Download |
| MG-7236B-SV.pdf | Download |
| MG-7236B-PL.pdf | Download |
| MG-7236B-FR.pdf | Download |
| MG-7236B-NL.pdf | Download |
| MG-7236B - QR Card.pdf | Download |
