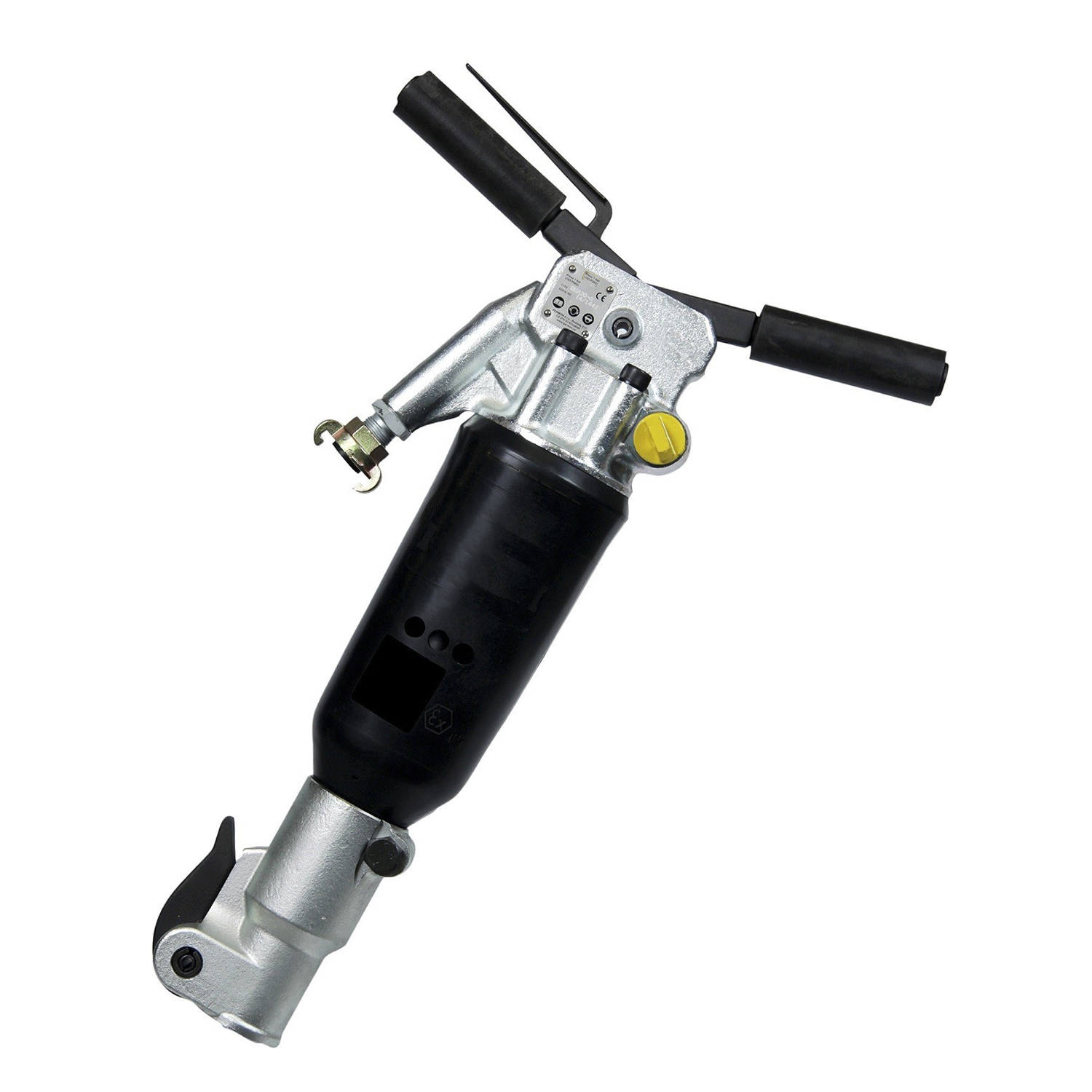

This RED ROOSTER INDUSTRIAL pavement breaker has a chisel retainer with latch. Suitable for endured usage. High energy level each blow. For applications in construction and renovations.
Characteristics:
• Ergonomic design, well balanced
• Compact quality tool
• Integrated noise muffler
• Vibration reduced handle bars


Related products

NC3

Flat Chisel TL=490 W=25

MP3

Moil Point TL=500

AC3

Asphalt Cutter TL=400 W=125

MP3-450

Moil Point TL= 600

NC3-450

Flat Chisel TL=600 W=25

NC3-1500

Flat Chisel TL=1600 W=25

DC3

Digger steel TL=500 W=75

CB3

Wide Chisel TL=465 W=75





Specifications

Brand Red Rooster Industrial
Airconsumption (l/s) 23
Weight (kg) 22
Shank size (mm) H^25 x 108
Airconnection PT 3/4"
Airpress max. (MPa) 0,63
mm A 660
mm B 441
Stroke (mm) 136
Strokes per minute 1200
Energy (J/Stroke) 60
Hosediameter (mm) 19
Piston (mm) 40
Safety standard EN ISO 11148-4
Vibration standard EN ISO 28927-10
Vibration value (m/s²) 3,4
Vibration uncertainty (m/s²) 1,9
Sound standard 2000/14/EC
Sound pressure (dB(A)) 87
Sound power (dB(A)) 102
Sound uncertainty (dB(A)) 1,9
EAN 8717981427697
