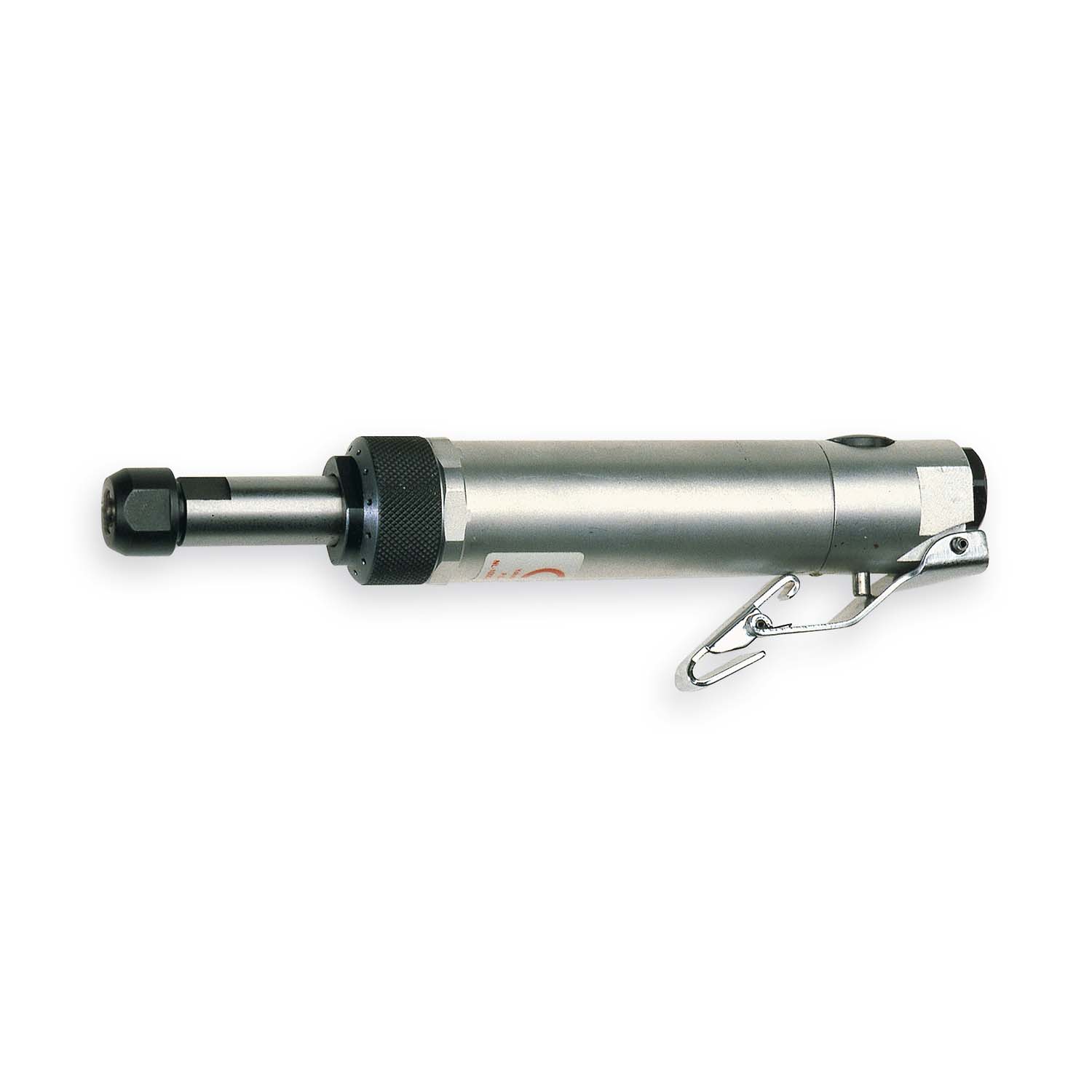

This die-grinder by Yokota is used with grinding wheels and burrs with 6mm collet chuck. Application area: Light dressing and fettling on fabrications and die setting sets.
Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* Low vibrationlevel
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
1011-0661-00-00
Collet chuck 6mm MG-OC
1001-0659-00-01
Adaptor 3mm for 6mm Chuck
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| RPM | 33000 |
| Airconsumption (l/s) | 3,0 |
| Weight (kg) | 0,39 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

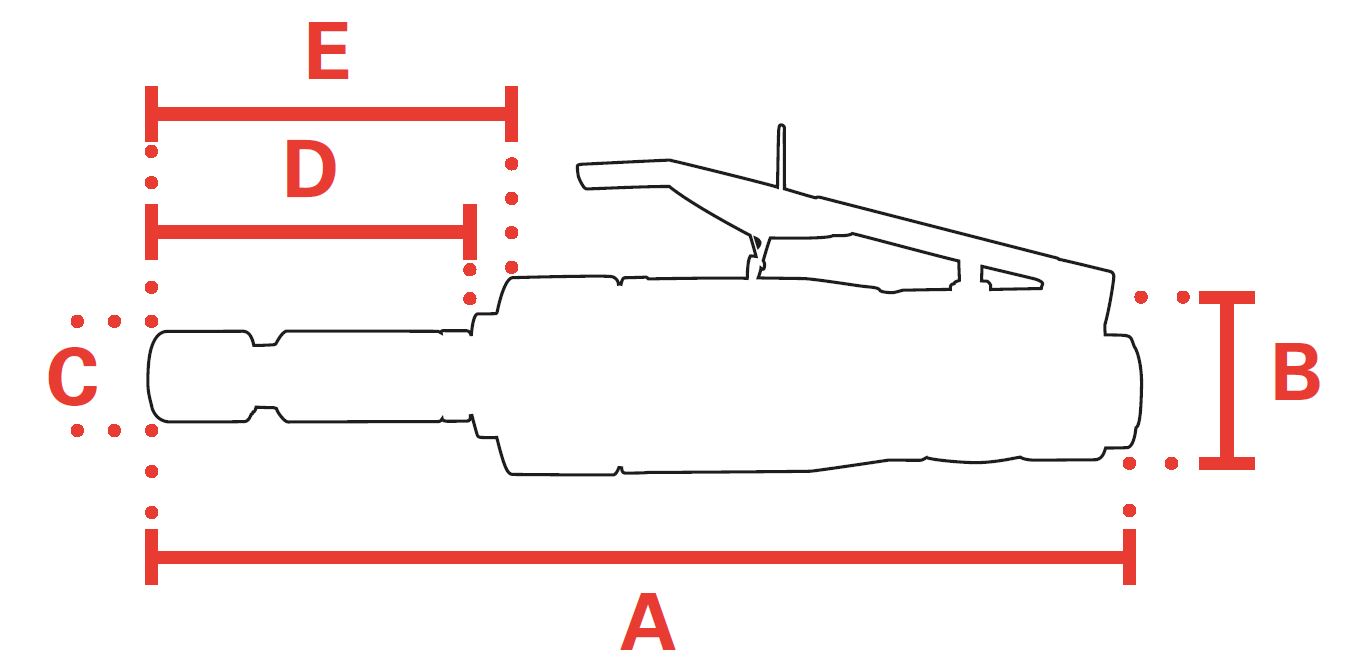

| mm A | 197 |
| mm B | 33 |
| mm C | 20 |
| mm D | 50 |
| mm E | 56 |
| Hosediameter (mm) | 6,5 |
| Collet chuck (mm) | 6 |
| Power (kW) | 0,13 |
| Wheel size (mm) | 25 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-4 |
| Vibration value (m/s²) | < 2,5 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 78 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981064724 |
