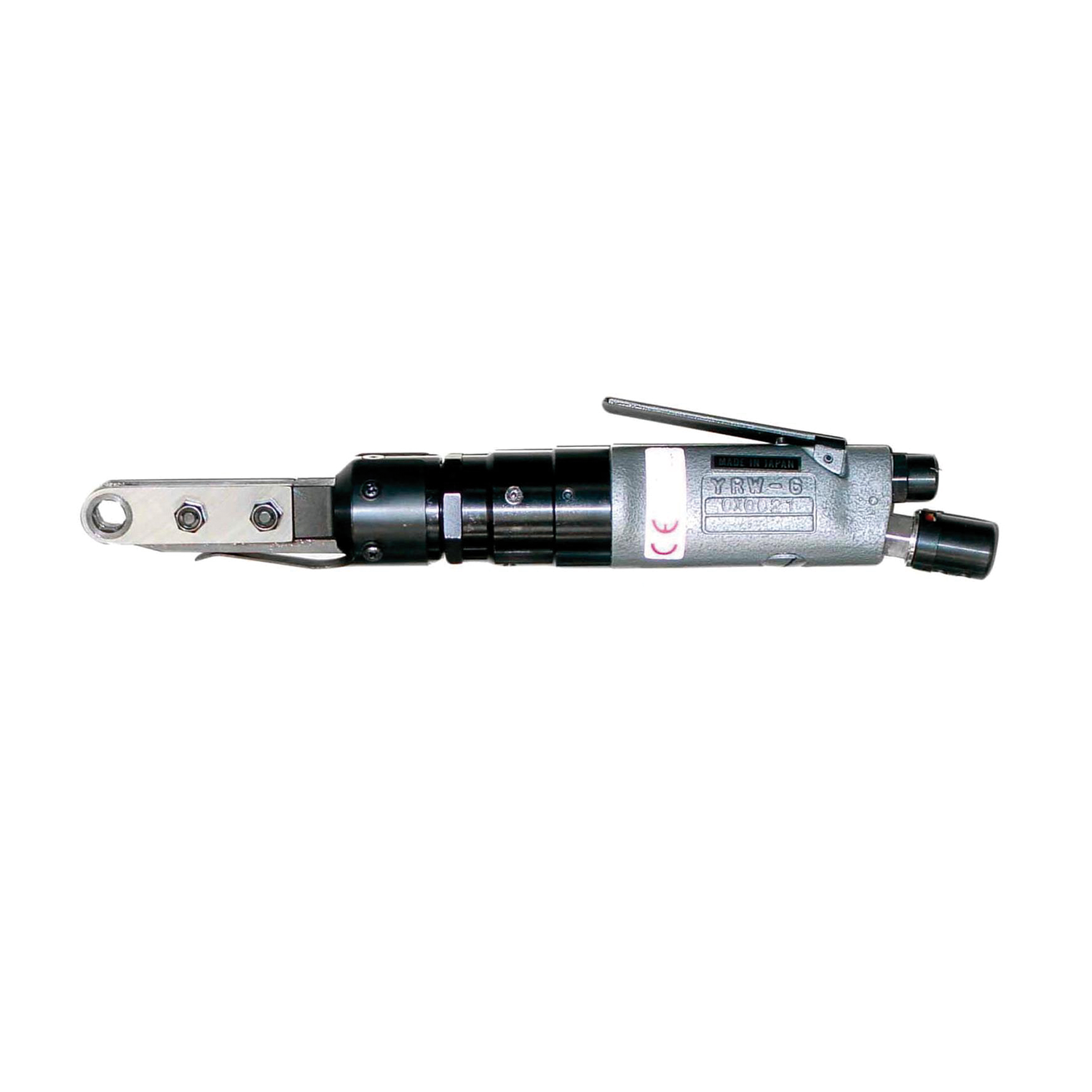

This air-ratchet wrench of Yokota is devellopped for use in the assembly-industry. Use for limited accessibility, where angle nutrunners can not be used due to the height of the angle-head. By rotating the complete tool 180 degrees, they can also be used to untighten the joint.
Characteristics:
* Compact and lightweight
* The tool can be delivered with 8, 9 or 10mm socket, please indicate in your order.
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Bolt capacity (mm) | 6 |
| RPM | 200 |
| Torque (Nm) | 13 |
| Airconsumption (l/s) | 4,6 |
| Weight (kg) | 1,15 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 320 |
| mm B | 13 |
| mm C | 13 |
| mm D | 88 |
| mm E | 20 |
| mm F | 10 |
| Hosediameter (mm) | 6,5 |
| A/F (mm) | 8, 9, 10 mm* |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | < 2,5 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 80 |
| Sound power (dB(A)) | 91 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981127139 |
