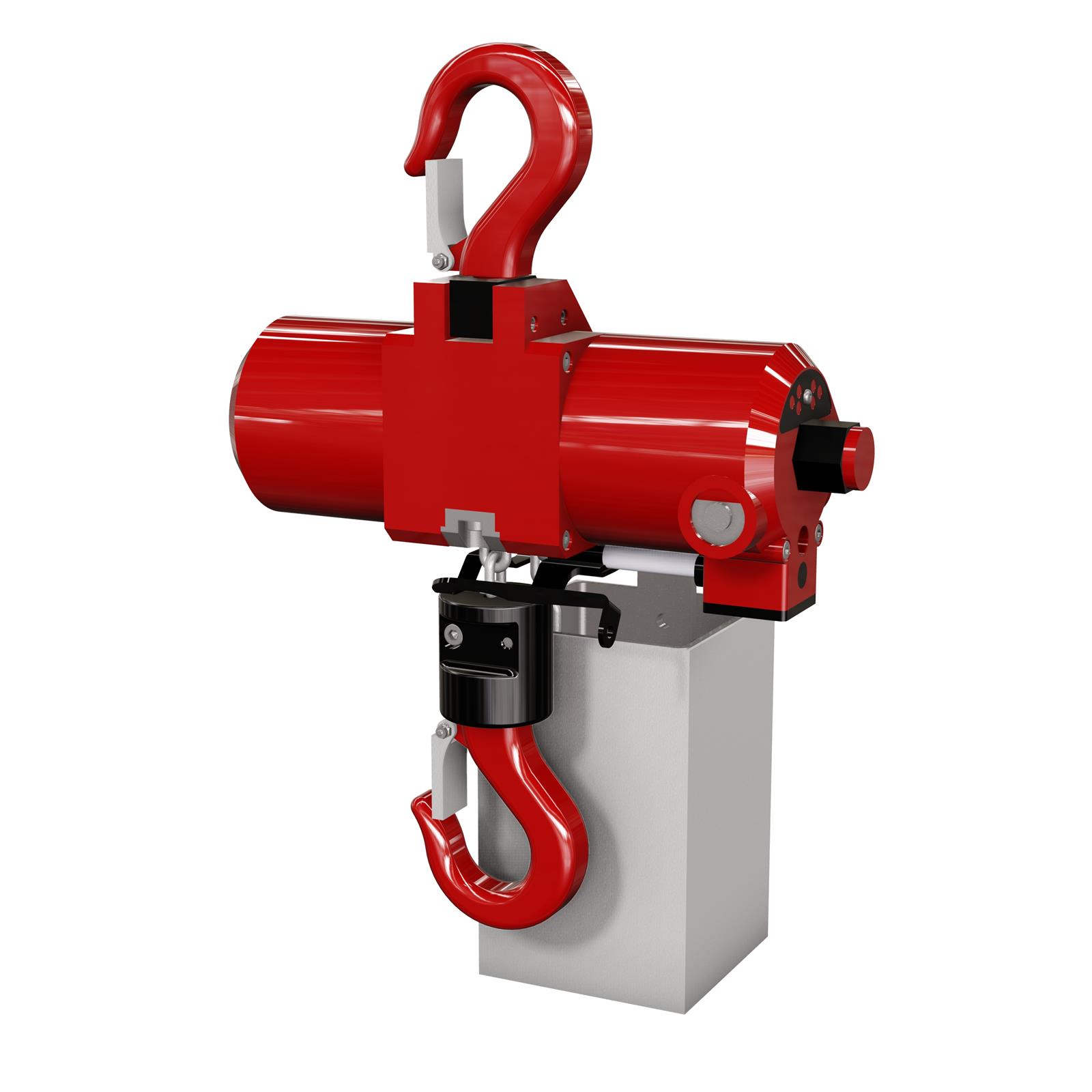

The RED ROOSTER Mini Air Chain Hoists are besides industrial use also very suitable for "Material Handling". Due to the low weight, these hoists are very suitable for service applications.
Characteristics:
* Low weight and therefore very mobile, easy mounting
* TCR-250 only 7 kg, 3 meter lift included
* Precise variable speed control (cord - and pendant control)
* Very compact design
* Robust aluminium housing
* Air motor is cooled by the exhaust air (internal)
* Cord control or pendant control
* Quiet, low noise level, silenced

Related products

4X12RTS

Chain RTS EN 818-7

AC30-F03DM-8-B

Modular FRL Unit

4X12RS60

Chain RS60 Stainless Steel EN818-7





Specifications

Brand Red Rooster
Number of chain falls 1
Lowering speed full load (m/min) 17
Lowering speed 0-load (m/min) 13
Weight incl. 3m lift (kg) 7
Lifting speed full load (m/min) 9,5
Lifting speed 0-load (m/min) 19
Chain weight (kg/m) 0,35
Chain (mm) 4,0 x 12,0 RTS
Chainbag/Chainbucket +
Loadlimiter -
Airconnection 3/8 BSPT
Airpress max. (MPa) 0,63
Airconsumption fullload (l/s) 13,3

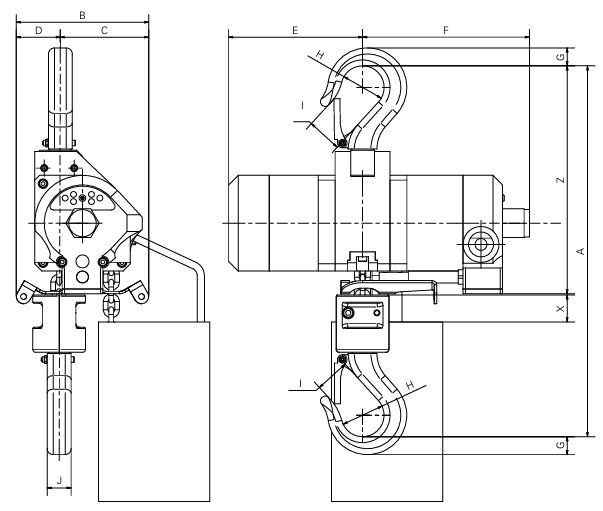

mm A 310
mm B 111
mm C 74
mm D 37
mm E 112
mm F 140
mm G 15
mm H 35
mm I 22
mm J 20
mm X 40
mm Z 170
Hosediameter (mm) 13
SMC Airtreatment unit AC30-F03DM-8-B
Capacity (kg) 250
EAN 8717981146352
