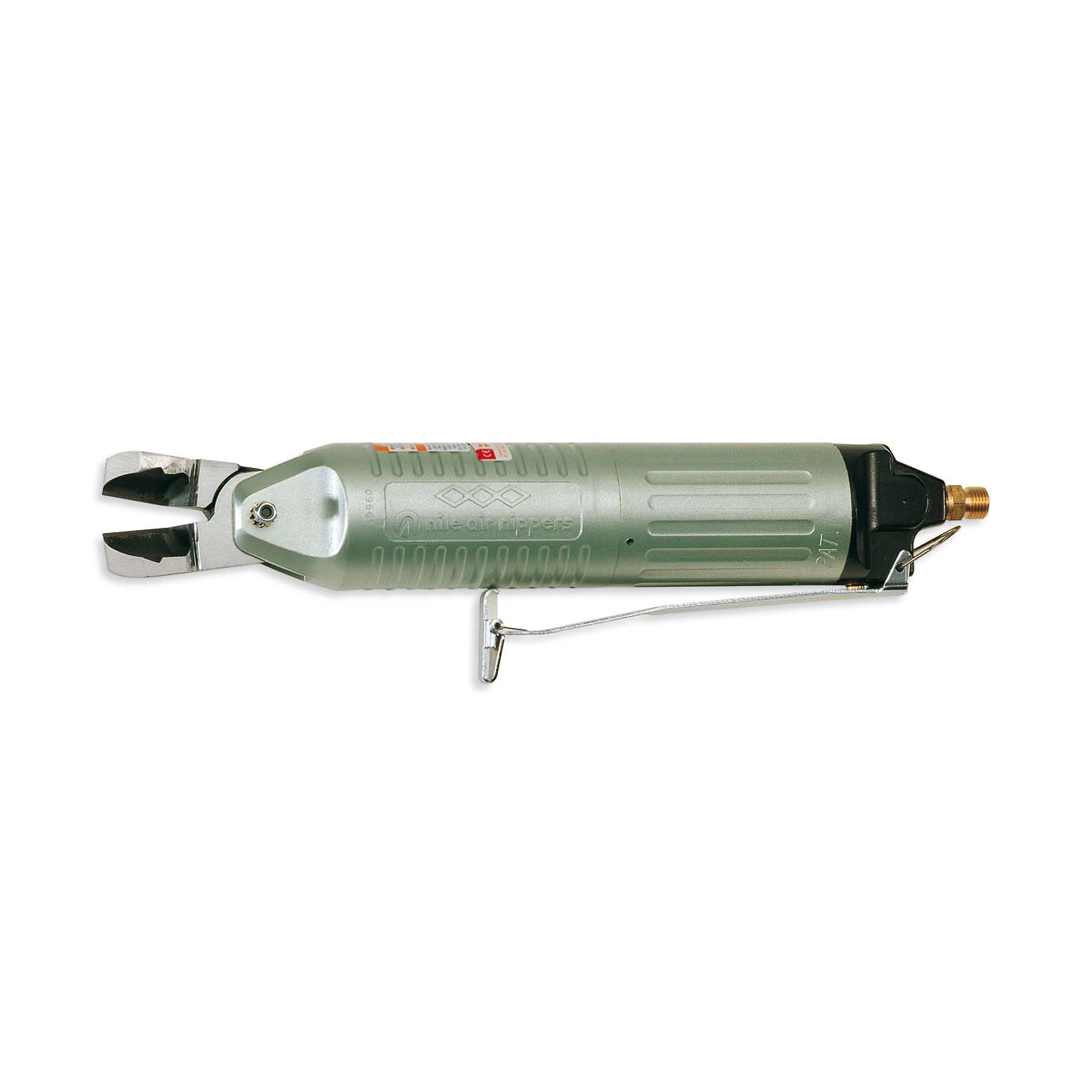

Power cutters have simplified cutting and pressing in mass production. Versatile applications of the power cutter by selection of suitable blades, make it possible to increase production.
The working pressure is 4 - 5 bar.
Blades for power cutters are delivered separately.
Related products
FD-9P
Blade for Power Cutter RRI-8011 und RRI-8031
Z-8P
Blade for Power Cutter RRI-8011 and RRI-8031
ZCR-8P
Blade For Power Cutter RRI-8011 and RRI-8031
EP-10P
Blade For Power Cutter for RRI-8011 and RRI-8031
F-9P
Blade for Power Cutter RRI-8011 and RRI-8031
CR-8P
Blade for Power Cutter RRI-8011 and RRI-8031
Specifications
| Brand | Red Rooster Industrial |
| Weight (kg) | 0,83 |
| Capacity copper (mm) | 4,8 |
| Capacity crimping (mm) | 5,5 |
| Capacity plastics (mm) | 13,0 |
| Capacity steel (mm) | 4,0 |
| Sound level (dB(A)) | 75 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,5 |
| Airconsumption (liter per cut) | 0,956 |

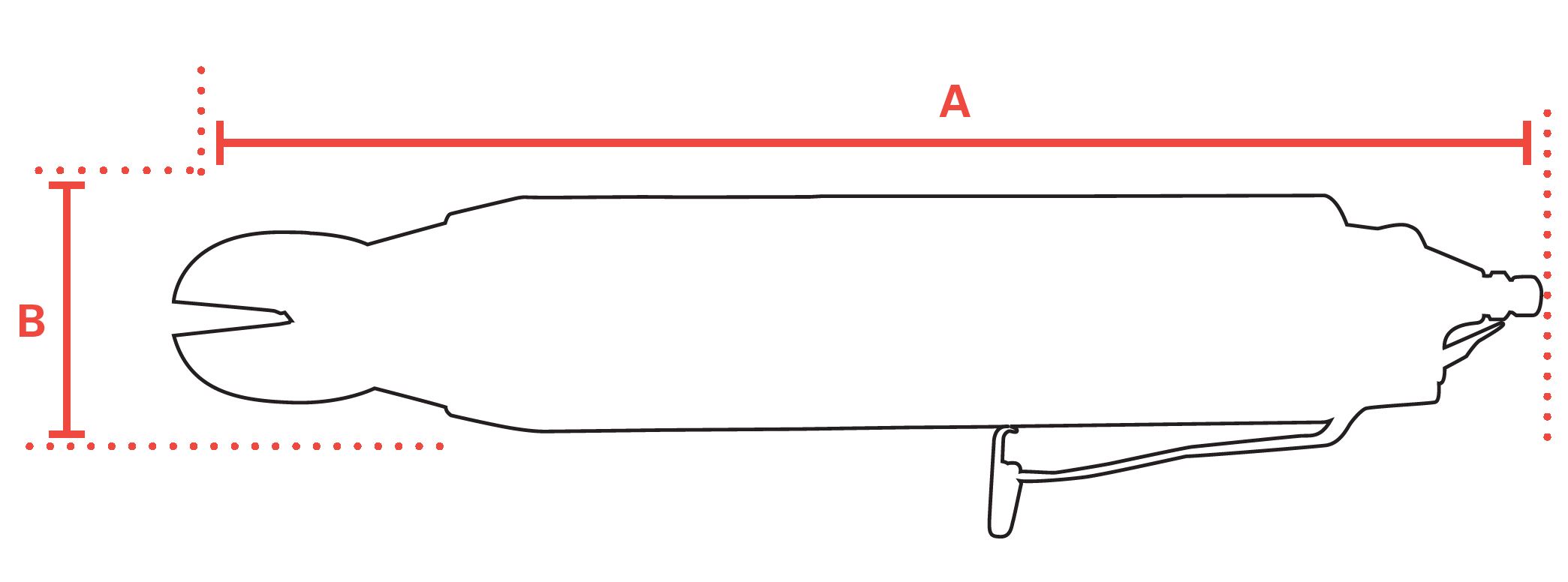

| mm A | 280 |
| mm B | 56 |
| Power midway on blade (kg) | 450 |
| Hosediameter (mm) | 6,5 |
| Vibration level (m/s²) | 1,0 |
| Safety standard | EN ISO 11148-2 |
| EAN | 8717981153145 |
Manuals
| RRI-8031-NL.pdf | Download |
| RRI-8031-DE.pdf | Download |
| RRI-8031-FR.pdf | Download |
| RRI-8031-EN.pdf | Download |
| RRI-8031 - QR Card.pdf | Download |
