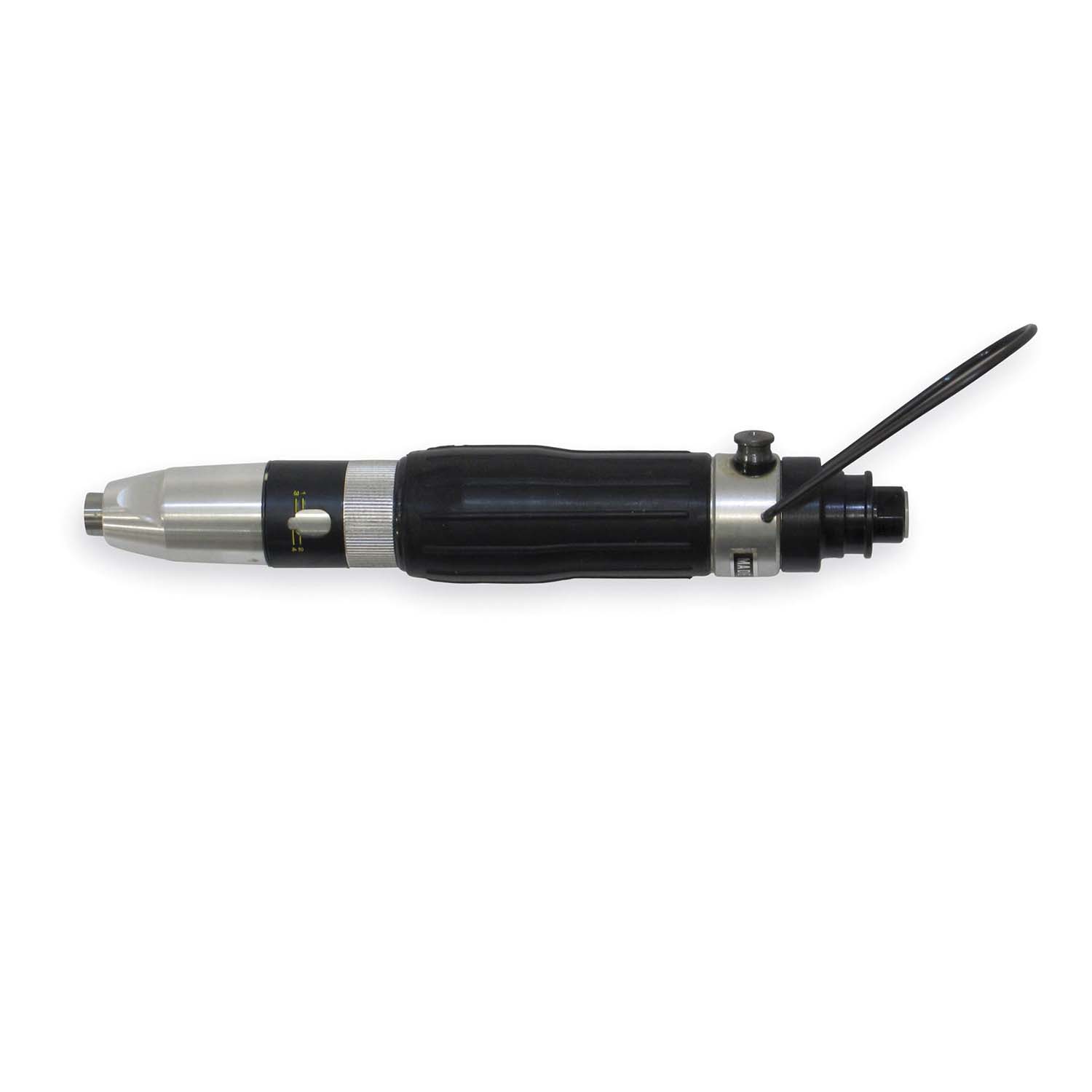

This Yokota screwdriver is developed for the assembly-industry. It has an adjustable clutch for powerfull operation. Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* Exhaust through isolated grip, with silencer
Related products
AC30A-F03E-B
Modular FRL Unit
HTB-0
Spring Balancer Hosereel
Related accessories
2201-0243-00-00
Control Handle
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Bolt capacity (mm) | 4 |
| RPM | 1700 |
| Torque (Nm) | 1,0 - 3,2 |
| Airconsumption (l/s) | 2,5 |
| Weight (kg) | 0,56 |
| Hexagon | 1/4" |
| Airconnection | PT 1/8" |
| Airpress max. (MPa) | 0,63 |

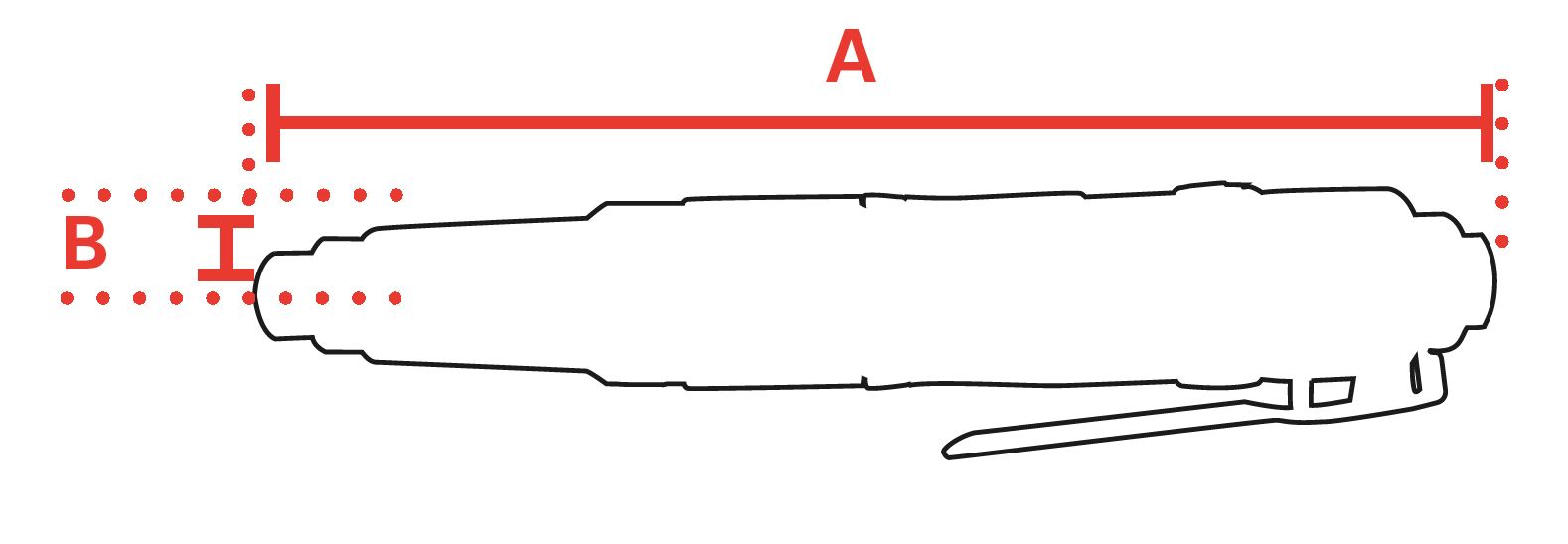

| mm A | 209 |
| mm B | 16,5 |
| Hosediameter (mm) | 6,5 |
| Execution | Recht |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 9,3 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 84 |
| Sound power (dB(A)) | 95 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981000647 |
Manuals
| YD-400SCA-DA.pdf | Download |
| YD-400SCA-EL.pdf | Download |
| YD-400SCA-DE.pdf | Download |
| YD-400SCA-NL.pdf | Download |
| YD-400SCA-FI.pdf | Download |
| YD-400SCA-EN.pdf | Download |
| YD-400SCA-SK.pdf | Download |
| YD-400SCA-NO.pdf | Download |
| YD-400SCA-SV.pdf | Download |
| YD-400SCA-IT.pdf | Download |
| YD-400SCA-PL.pdf | Download |
| YD-400SCA-ES.pdf | Download |
| YD-400SCA-FR.pdf | Download |
| YD-400SCA - QR Card.pdf | Download |
