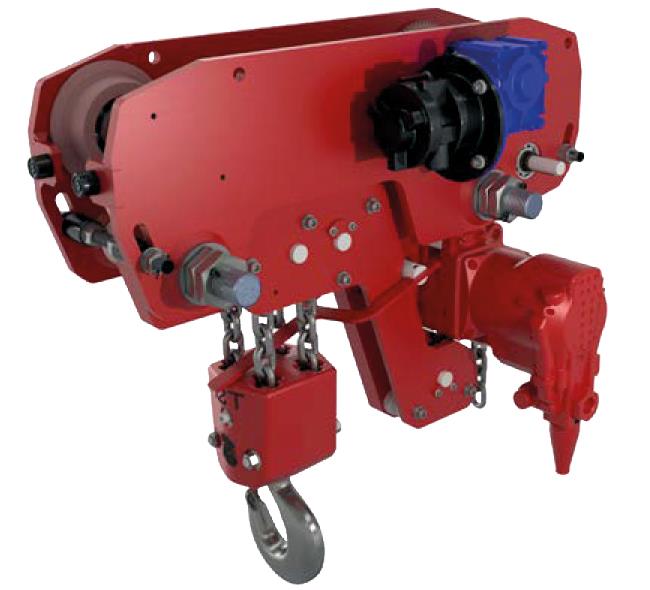

Heavy duty hoist built into low headroom trolley frame with high efficiency motor gearbox
STANDARD FEATURES:
• TOKU rotary vane motor
• Failsafe automatic internal disc brake
• Trolley travel self braking
• Choice of pendant controls or control stations
• Upper & lower limit switches
• Forged alloy steel safety swivel hooks with safety catch
• Anti-tilt & anti-drop plates
• Wheel profile to suit parallel or tapered flanges
AVAILABLE OPTIONS:
• Marine specification paint systems
• ATEX Category 2 (zone 1/21) specification
• Chain collectors ( PVC, galvanised or stainless steel)
• Travel limits
• Beam brake
• Articulated trolley for small beam radius
Related products
42-02-35-VRD
4-Button Pendant Valve Assy TCR/TMH
13X36RTS
Chain RTS EN 818-7
SO-112392-AC825-14
Filter/Regulator/Lubricator 1-1/2"
13X36
Chain EN 818-7
Specifications
| Brand | Red Rooster |
| Number of chain falls | 4 |
| Lowering speed full load (m/min) | 2,55 |
| Flange width with integrated hoist (mm) | 110 - 300 |
| Weight incl. 3m lift (kg) | 400 |
| Lifting speed full load (m/min) | 1,35 |
| Lifting speed 0-load (m/min) | 2,7 |
| Chain weight (kg/m) | 3,8 |
| Chain (mm) | 13x36 |
| Airconnection | PT 1" |
| Workingpressure (MPa) | 0,4 - 0,63 |
| Capacity (kg) | 12000 |
| Air consumption lifting (l/s) | 56 |
| Standard travel speed (m/min) | 6 |
| Air consumption traveling (l/s) | 40 |
| EAN | 8717981380329 |
