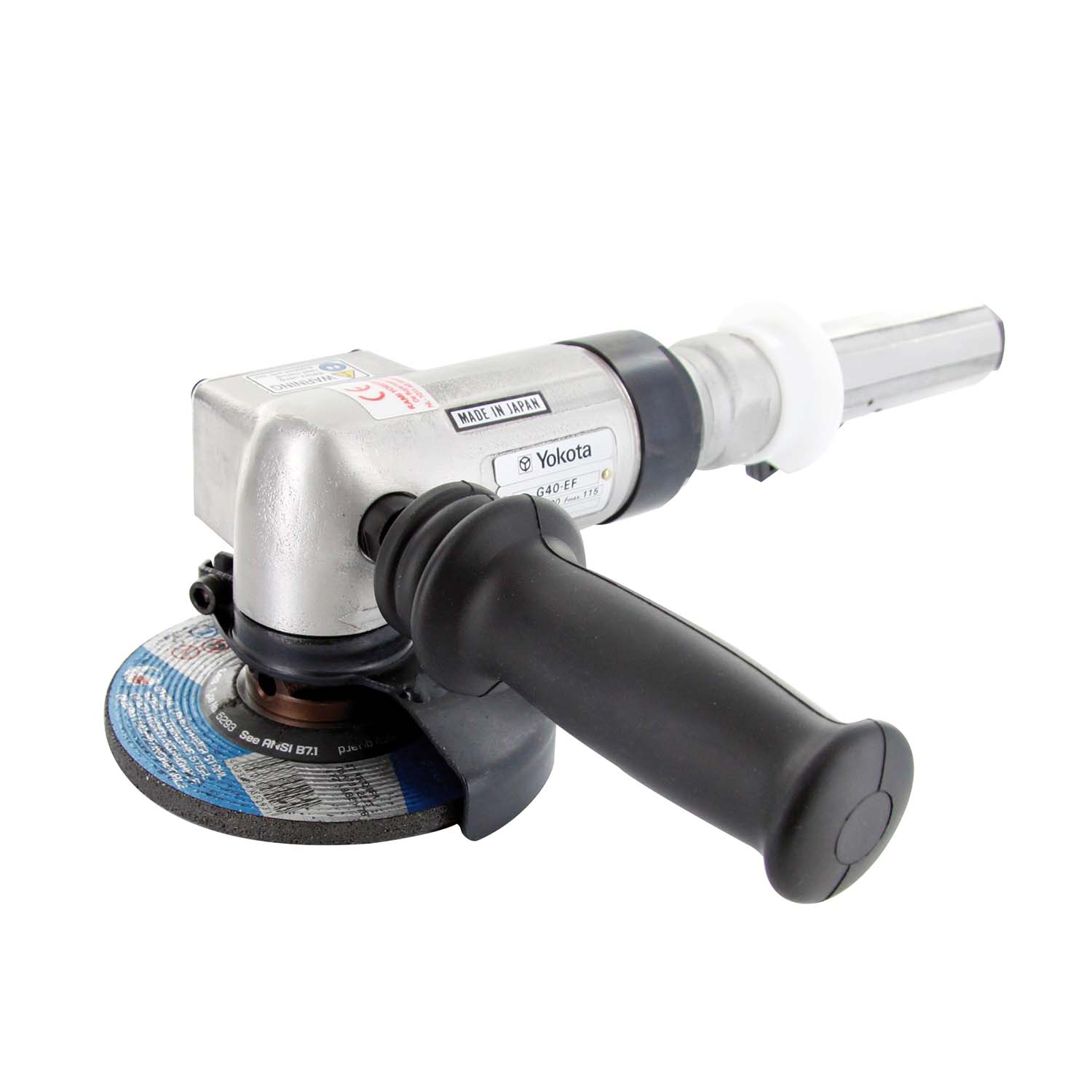

This angled grinder by Yokota is used for grinding and cutting. Very high quality level. The grinder has an integrated speed-setting regulator for maximum safety and optimal speed for best material removal.
Characteristics:
* Ergonomic design, well balanced
* Compact and lightweight
* For cutting and grinding purposes
* Exhaust silenced
* Vibrationreduced deadhandle
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
1203-0013-00-11
Dead Handle Vibration Red.
9310-3003-00-99
Standard Flanges and outer wheel sc
1120-0655-00-01
Outer Wheel Screw
8100-2001-00-00
Forked Wrench G-40/G-50
1117-0654-00-01
Outer Flange 16 Mm
8100-1003-00-00
Bar Wrench G-40/G-50
1117-0654-00-02
Outer Flange 22 Mm
1126-0655-00-00
Outer Wheel Screw
1120-0658-00-01
Pad Flange
1117-0653-00-01
Inner Flange 16 Mm
9310-3003-00-00
Rubber pad G-40
ATLUB
Air Tool Oil, 1 litre
8100-3001-00-00
L-Wrench G-40/G-50
Specifications
| Brand | Yokota |
| RPM | 13000 |
| Airconsumption (l/s) | 10,8 |
| Weight (kg) | 1,4 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

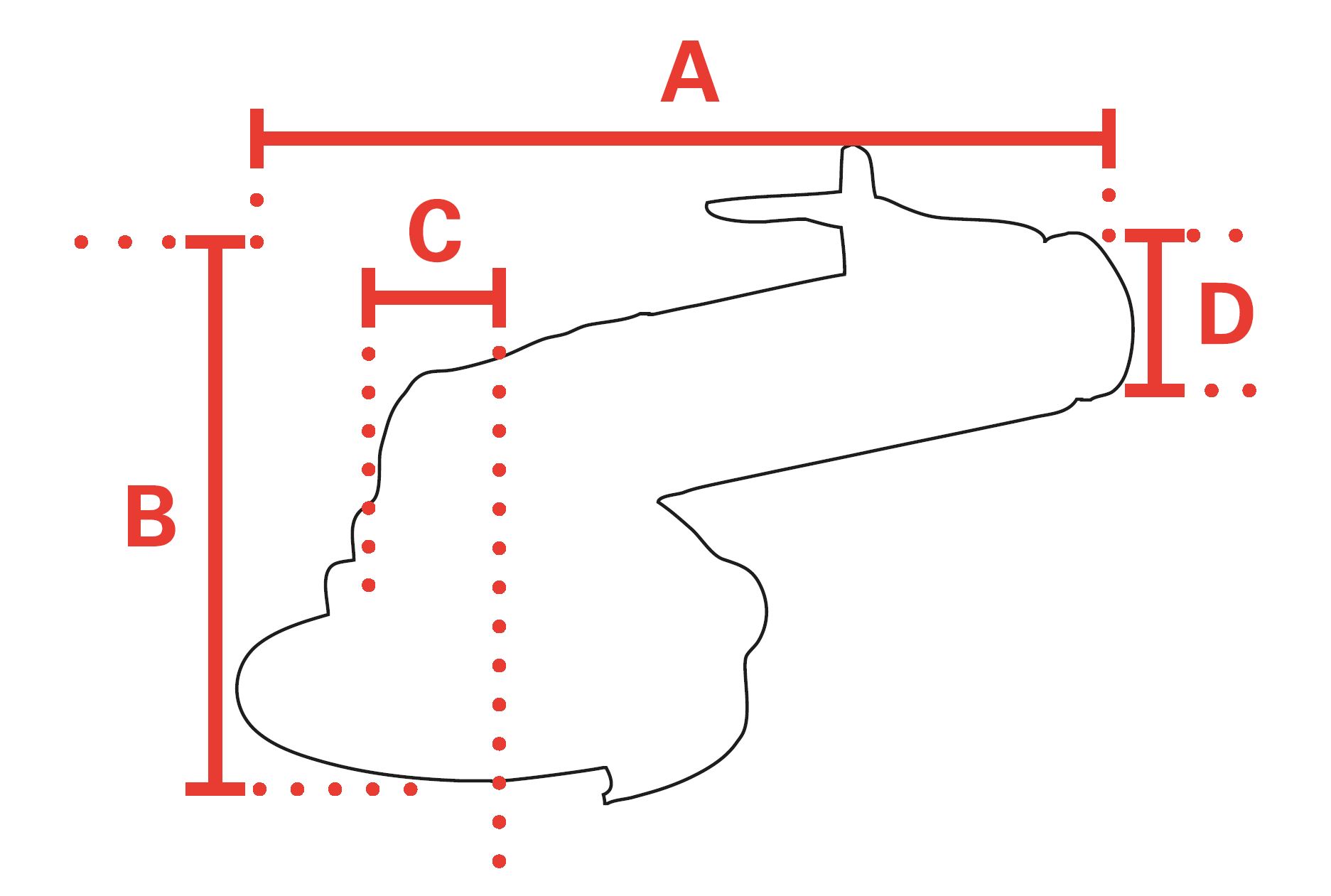

| mm A | 299 |
| mm B | 88 |
| mm C | 29 |
| mm D | 50 |
| Hosediameter (mm) | 13 |
| Spindle | 7/16" |
| Power (kW) | 0,60 |
| Wheel size (mm) | 115 x (0,8 - 7) x 22,2 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-1 |
| Vibration value (m/s²) | 3,3 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 84 |
| Sound power (dB(A)) | 95 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981000074 |
