Specifications
|
Brand
|
Toku
|
|
RPM
|
250
|
|
Airconsumption (l/s)
|
26
|
|
Weight (kg)
|
17,4
|
|
Shank size (mm)
|
H^22 x 82
|
|
Airconnection
|
PT 3/4"
|
|
Airpress max. (MPa)
|
0,63
|
|

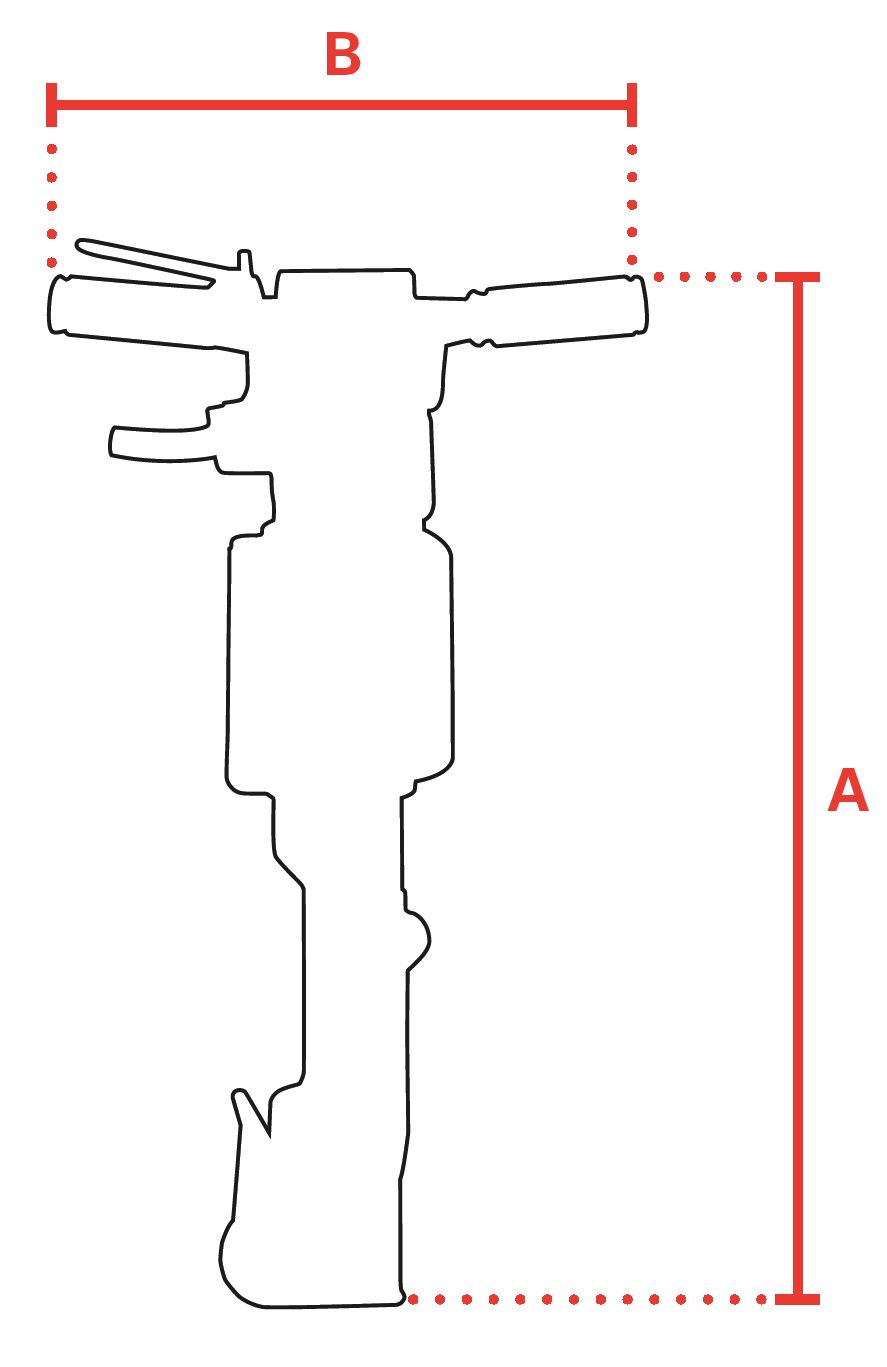

mm A
|
468
|
|
mm B
|
340
|
|
Stroke (mm)
|
45
|
|
Strokes per minute
|
2450
|
|
Energy (J/Stroke)
|
44,7
|
|
Hosediameter (mm)
|
19
|
|
Piston (mm)
|
54
|
|
Safety standard
|
EN ISO 11148-5
|
|
Vibration standard
|
EN ISO 28927-10
|
|
Vibration value (m/s²)
|
33,0
|
|
Vibration uncertainty (m/s²)
|
3,80
|
|
Sound standard
|
ISO 15744
|
|
Sound pressure (dB(A))
|
111
|
|
Sound power (dB(A))
|
122
|
|
Sound uncertainty (dB(A))
|
3
|
|
EAN
|
8717981021970
|
