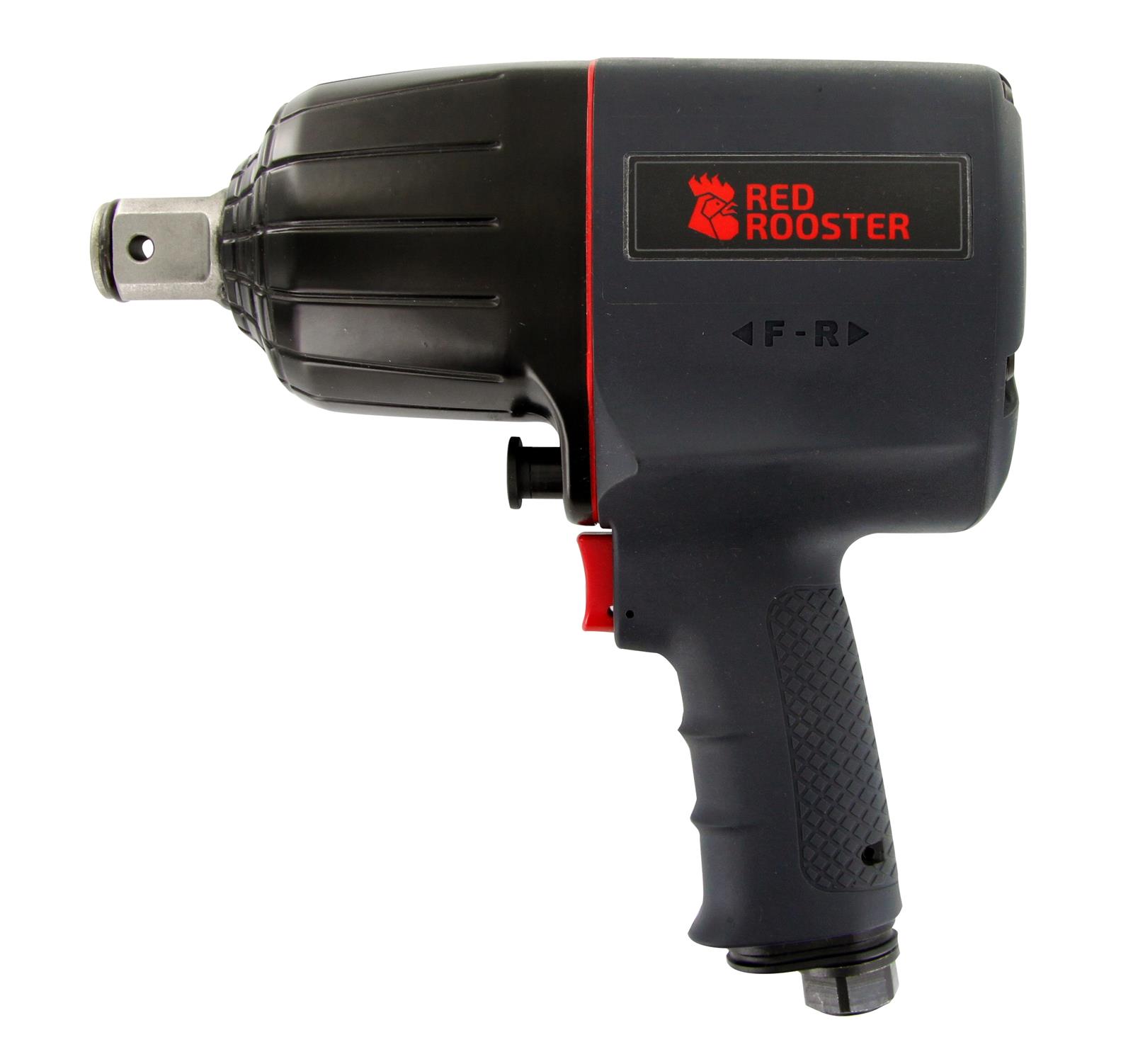

This composite impact wrench by RED ROOSTER has an excellent weight/power ratio. The RR-24N 1 is developed for assembly- and disassembly applications. The Twin Hammer impact mechanism gives high energy levels per impact en thus suitable for heavy duty applications. The energy is directly transmmitted to the anvil for maximum power and low maintenance. The tool is suitable for industrial use.
Characteristics:
• Ergonomic design, well balanced
• Compact and lightweight
• Impact mechanism Twin Hammer
• Power adjustable, 3 positions
• Exhaust silenced, through grip
Related products
DO0100-1-007
Socketset Long 1" 7-Parts
Related accessories
DOESR-3
Ret Ring
Specifications
| Brand | Red Rooster |
| Square Drive | 1" |
| Version | R+H |
| Bolt capacity (mm) | 24 |
| Impact mechanism | Twin-Hammer |
| RPM | 5500 |
| Torque (Nm) | 1900 |
| Force adjustment | R 3 Standen |
| Airconsumption (l/s) | 16 |
| Weight (kg) | 3,7 |
| Airconnection | PT 3/8" |
| Airpress max. (MPa) | 0,63 |

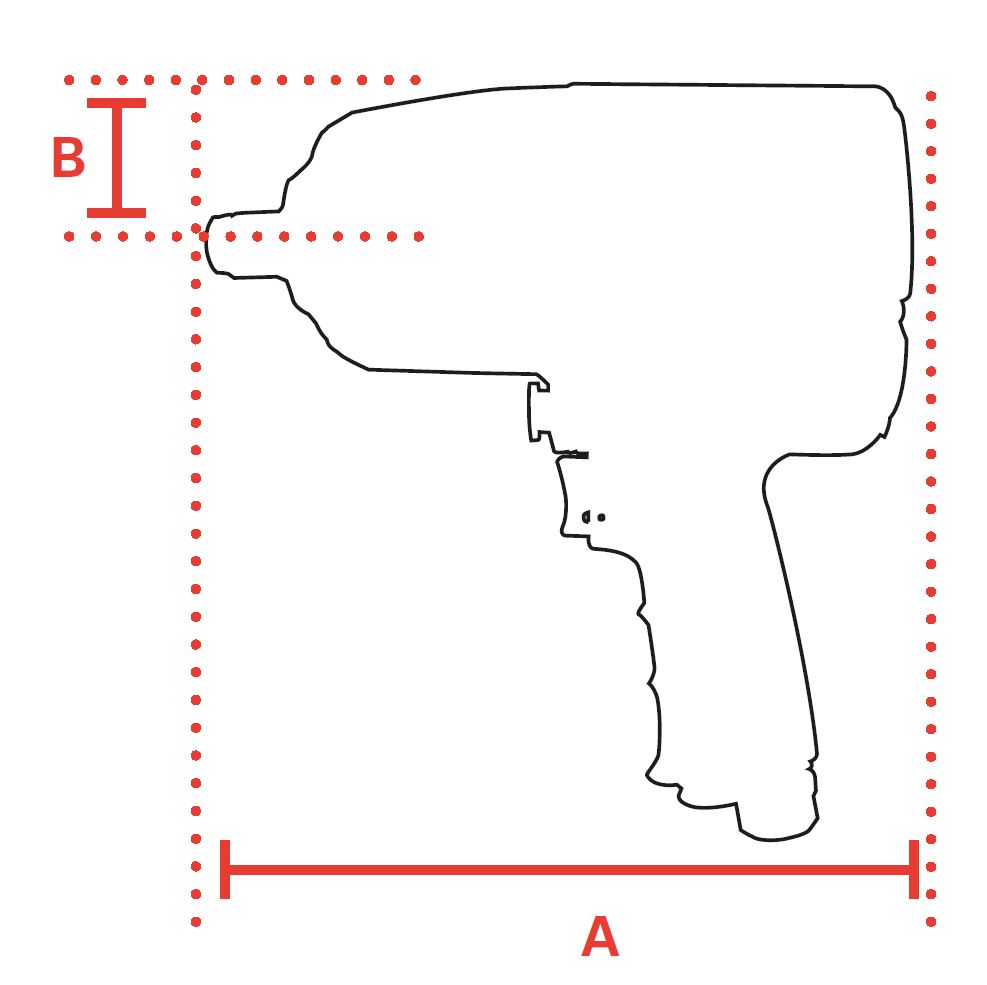

| mm A | 210 |
| mm B | 50 |
| Hosediameter (mm) | 10 |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 10,2 |
| Vibration uncertainty (m/s²) | 4,08 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 99,78 |
| Sound power (dB(A)) | 110,78 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981332526 |
