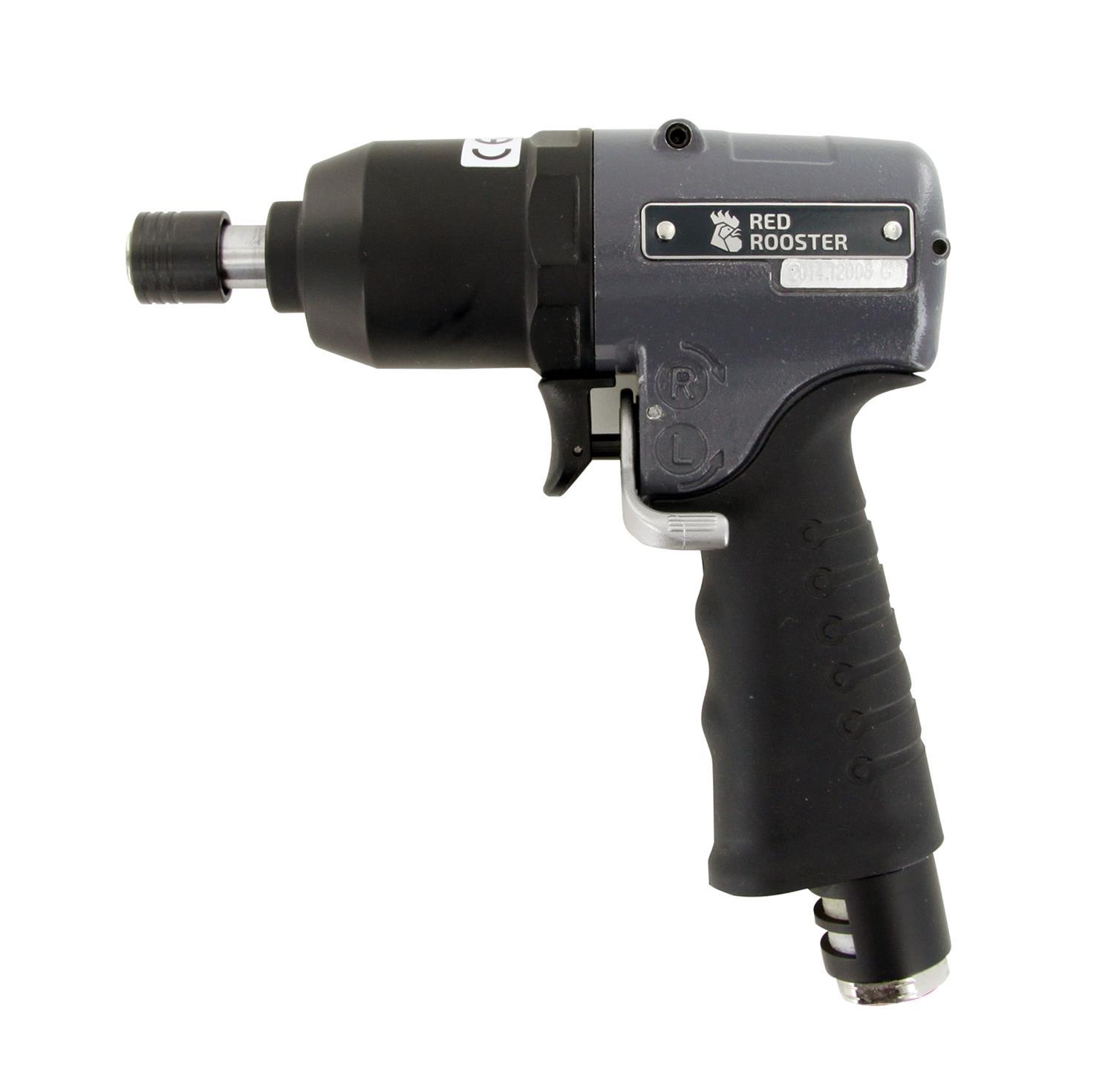

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Pistol model
Related products
RRI-9001/1
Spring balancer 0,5 -1,5 kg
AC30A-F03E-B
Modular FRL Unit
Related accessories
01-0505YO
standard accessories kit
61022-TH002
Tool Holder, diameter 47mm
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 8 |
| RPM | 7200 |
| Torque (Nm) | 16 - 26 |
| Airconsumption (l/s) | 5,3 |
| Weight (kg) | 0,90 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 147 |
| mm B | 168 |
| Hosediameter (mm) | 6,5 |
| Square Drive / Hexagon | 1/4" |
| Safety standard | EN ISO 11148-6 |
| Formal Capacity | 16 - 26 |
| Formal Serie From | 2014.05001C |
| Vibration standard | EN ISO 28927-2 |
| Vibration uncertainty (m/s²) | 0,91 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 80,8 |
| Sound power (dB(A)) | 91,8 |
| Sound uncertainty (dB(A)) | 3 |
| Product Group | Impulse Wrenches |
| Sales Group | 018 |
| UNSPSC number | 27131501 |
| Eclass number | 21061206 |
| EAN | 8717981326556 |
