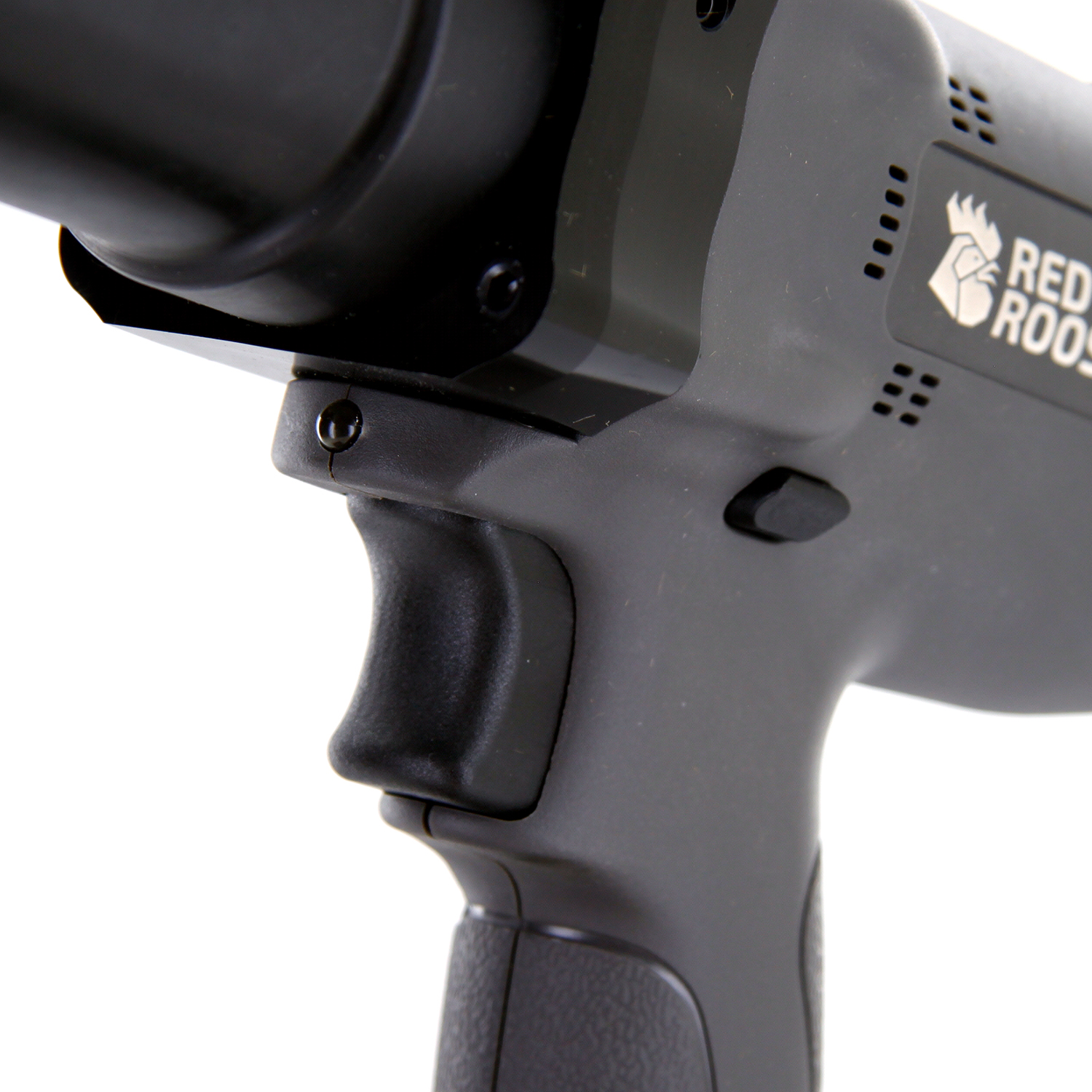

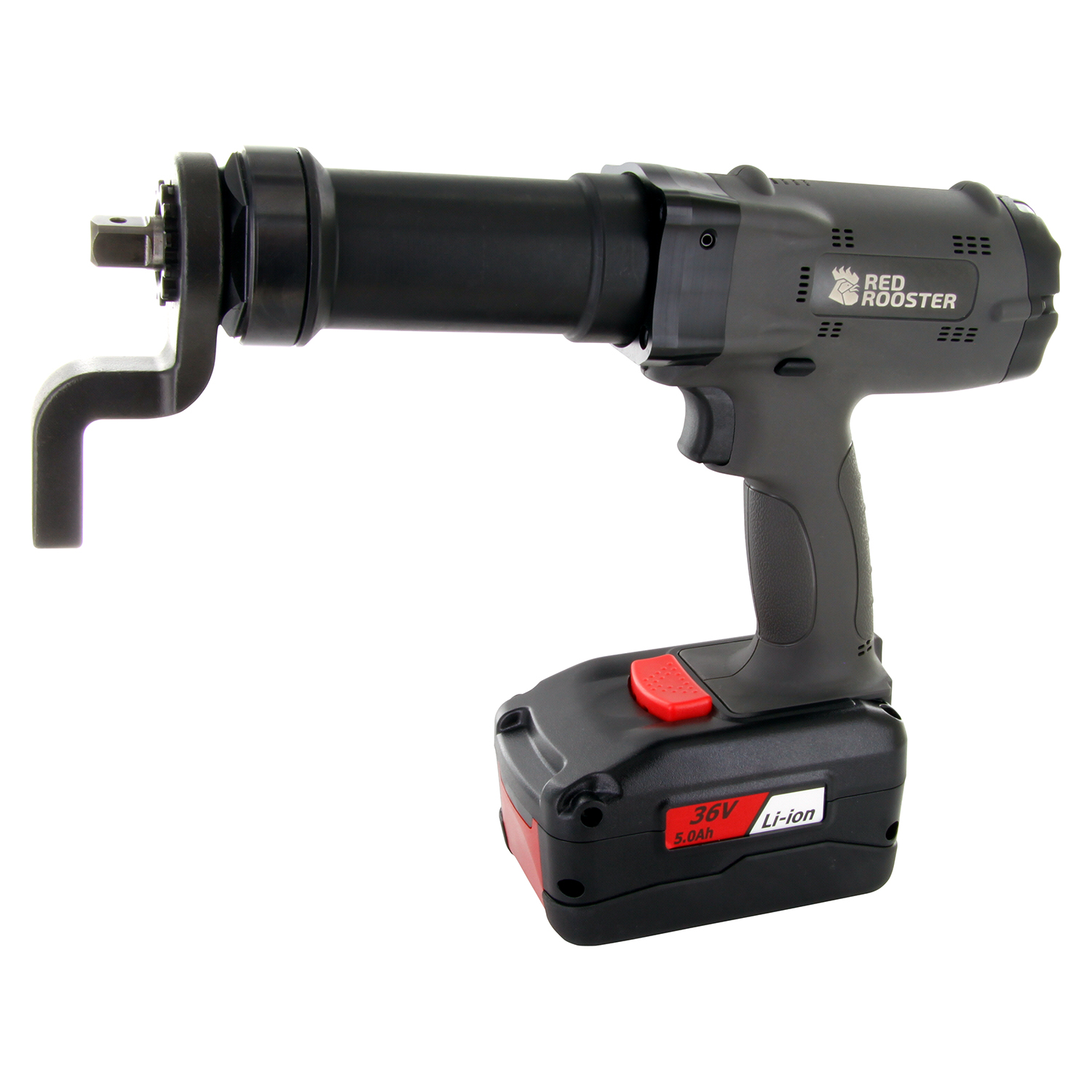

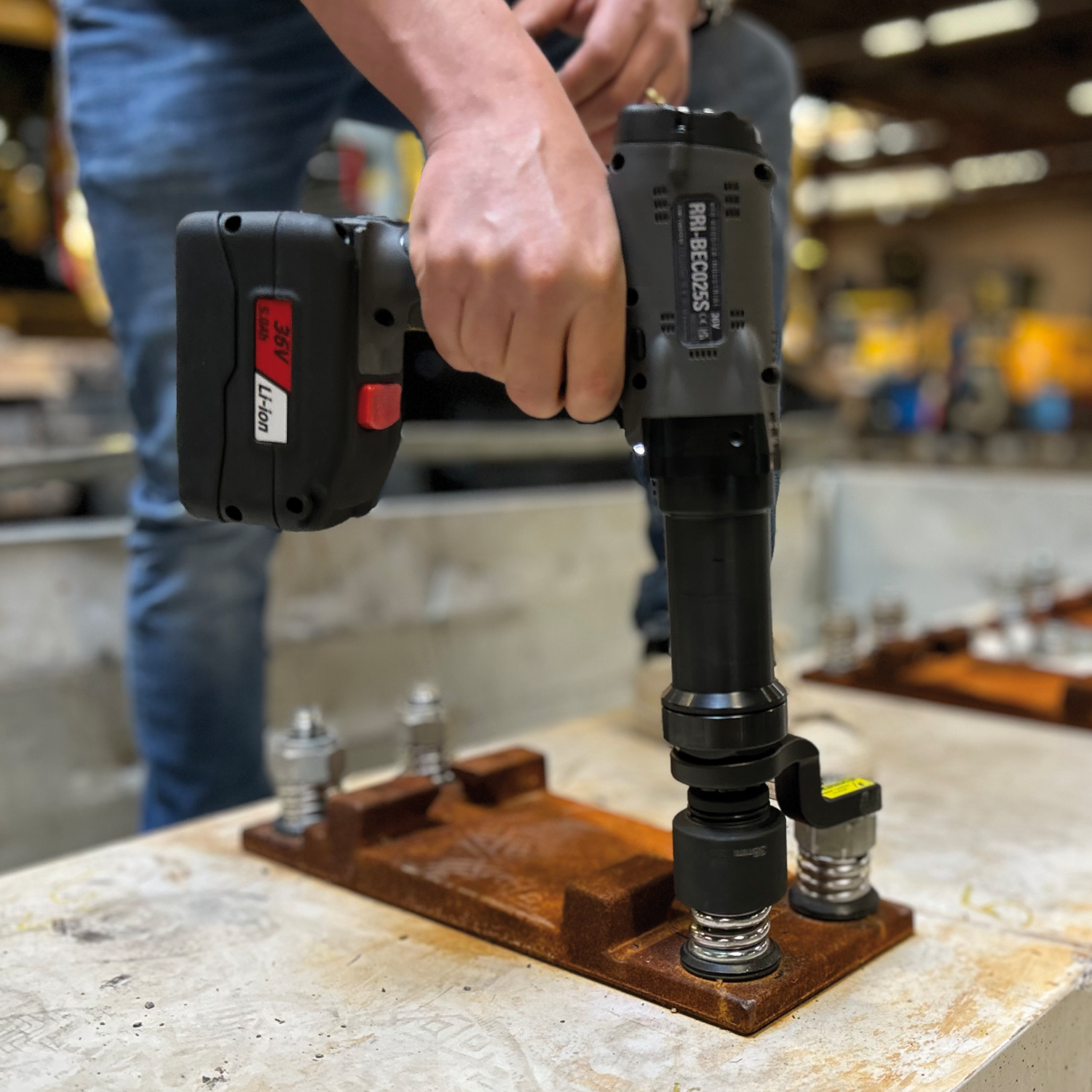

RED ROOSTER Cordless high torque geared wrench. Very well suited for assembly applications with a need of good torque accuracy. Especially in areas where cables and hoses impede handling flexibility. Contactless trigger and forward / reverse switch for a long lifetime. Version with two-hand safety control.
Characteristics:
• Brushless motor
• 36 Volt Lithium-Ion battery
• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Adjustable torque in 50 steps
• Display shows torque and setting
• automatic reaction arm release
• Tightening data retrievable via USB interface
Standard reaction arm is included. Batteries, charger and other accessories must be ordered separately.
Related accessories
31022-GW016
Reaction Welding Ring RRI-BEC025
SW40-283-0102
Hanger
31084-360F
36V Charger
31022-GW001
Reaction Bar RRI-BEC025-250
31022-GW010
Reaction Bar RRI-BEC025-250
33257-RRI-BEC025
Standard Reaction Bar RRI-BEC025
31022-GW009
Reaction Bar RRI-BEC025-250
31022-GW014
Sliding Reaction Plate RRI-BEC025
BW104
Back Up Wrench 12-Pt AF 30 mm, max 3254 Nm
Koffer RRI-BEC025
Case RRI-BEC025
31022-GW011
Reaction Bar Adapter RRI-BEC025
BB360F-350
36V 5.0Ah Li-ion Battery
Specifications
| Brand | Red Rooster Industrial |
| Square Drive | 1/2" |
| Bolt capacity (mm) | 12 ~ 18 |
| RPM | 700 / 75 |
| Torque (Nm) | 50 ~ 250 |
| Weight w/o battery (kg) | 2,9 |
| Sound level (dB(A)) | < 80 |
| mm A | 90 |
| mm B | 55 |
| mm C | 291 |
| mm D | 228 |
| mm E | 258 |
| mm F | Ø 58 |
| mm L | 36 |
| Battery voltage (Volt) | 36 |
| Battery type Li-ion….(Ah) | 5,0 |
| EAN | 8717981454433 |
