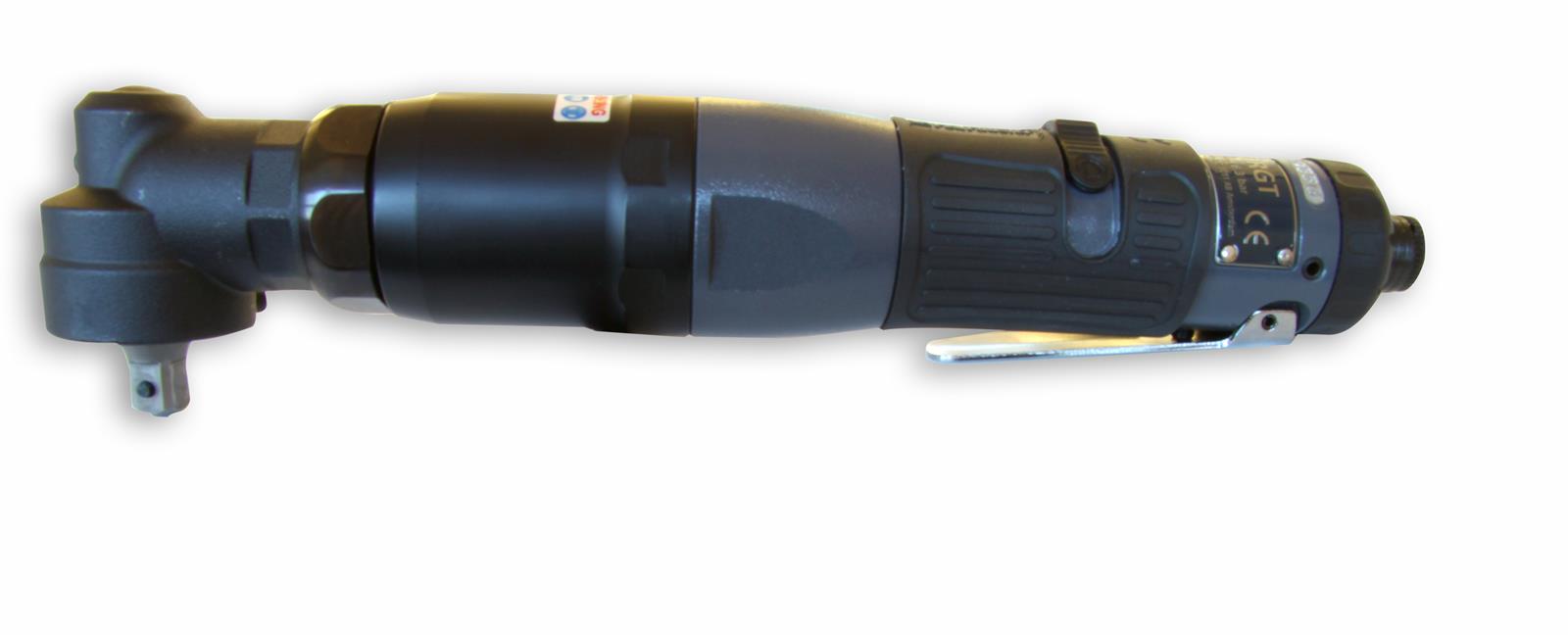

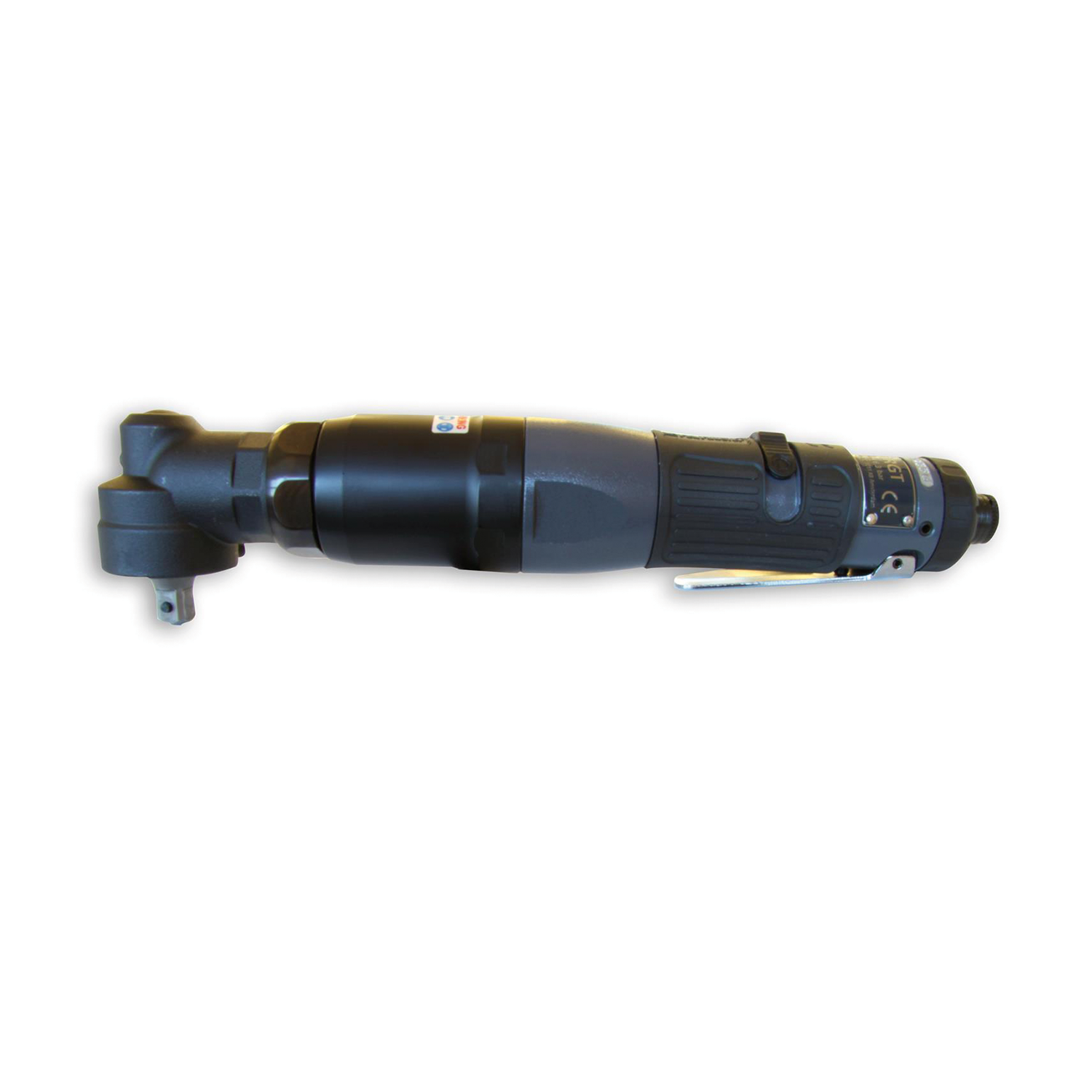

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Angled model
• Auto shut off function
Related accessories
01-0501YO
standard accessories kit
70RH-RT-008
Key Wrench for 70RG, 70RH, 80RH
YouTubeSpecifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 10 |
| RPM | 2000 |
| Torque (Nm) | 32 - 45 |
| Airconsumption (l/s) | 6,2 |
| Weight (kg) | 1,60 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

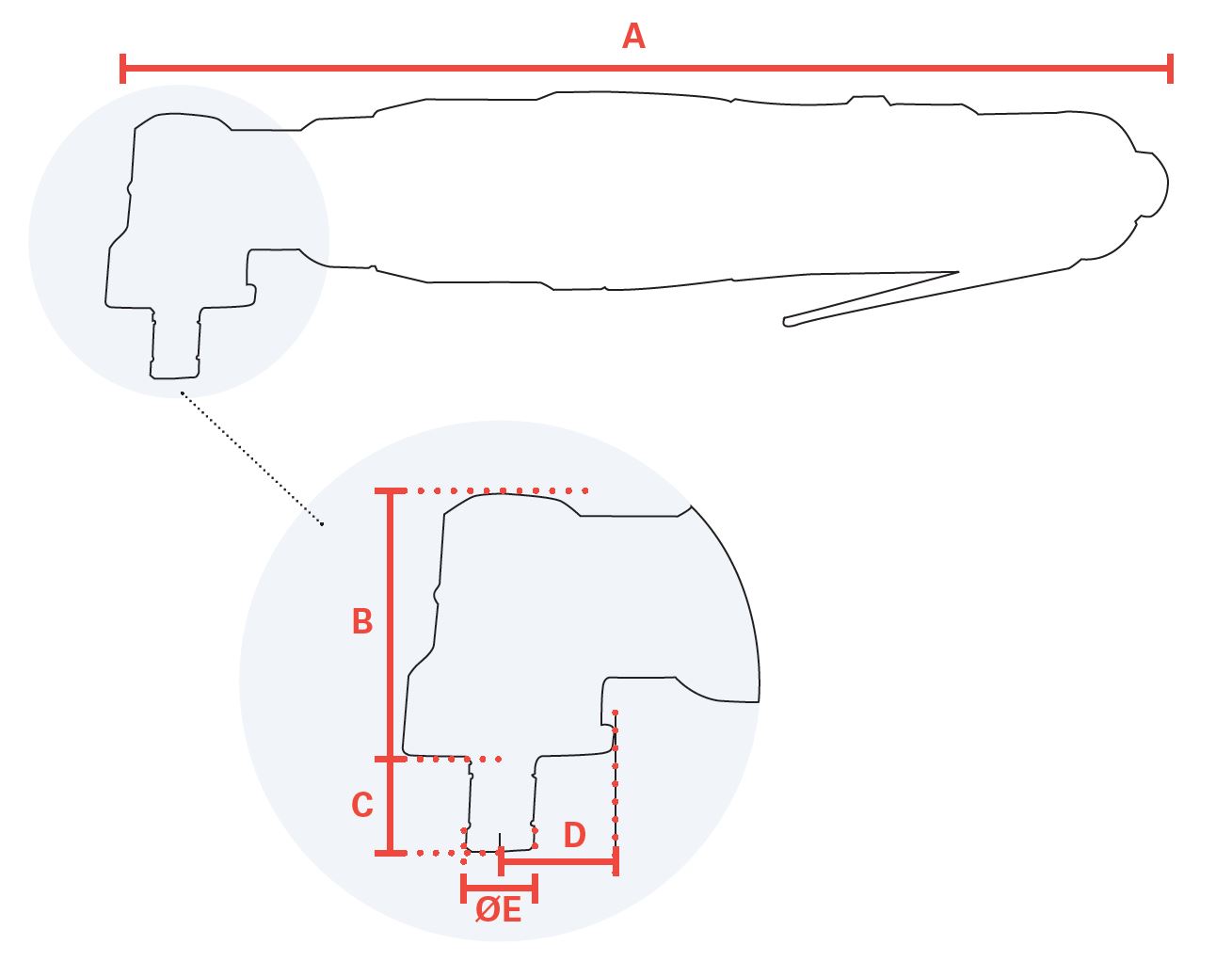

| mm A | 281 |
| mm B | 47 |
| Hosediameter (mm) | 8 |
| Square Drive / Hexagon | 3/8" |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 10,1 |
| Vibration uncertainty (m/s²) | 1,5 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 75,8 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981203710 |
Manuals
| RRI-70RGT-FR.pdf | Download |
| RRI-70RGT-NL.pdf | Download |
| RRI-70RGT-DE.pdf | Download |
| RRI-70RGT-EN.pdf | Download |
| RRI-70RGT - QR Card.pdf | Download |
