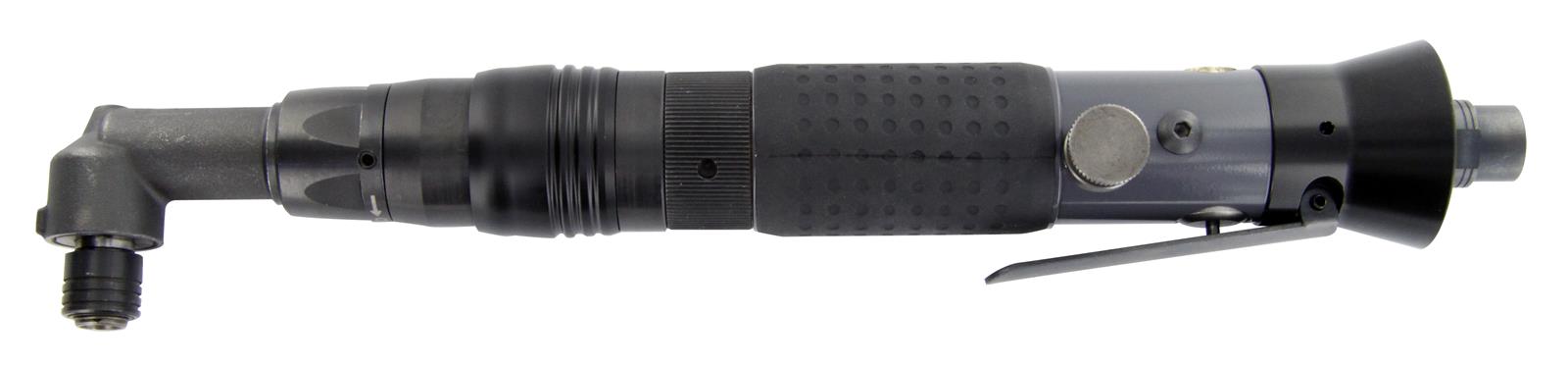

The RED ROOSTER Shut-Off screwdrivers have a large torque-range, are highly accurate and have a low vibration level. Very ergonomic design and low noise level. The special design of the clutch combines low reaction forces with a high repeatability of the torque. This air tool is designed for the assembly industry, where threaded fasteners are used.
Characteristics:
* New angled body-design with soft grip
* Reversible
* Rear-exhaust, silenced
* ergonomic grip, lever start
* easily adjustable
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
YouTubeSpecifications
| Brand | Red Rooster Industrial |
| Square Drive | 3/8" |
| Bolt capacity (mm) | 5 |
| RPM | 1100 |
| Torque (Nm) | 5,0 - 6,5 |
| Airconsumption (l/s) | 12 |
| Weight (kg) | 1,36 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

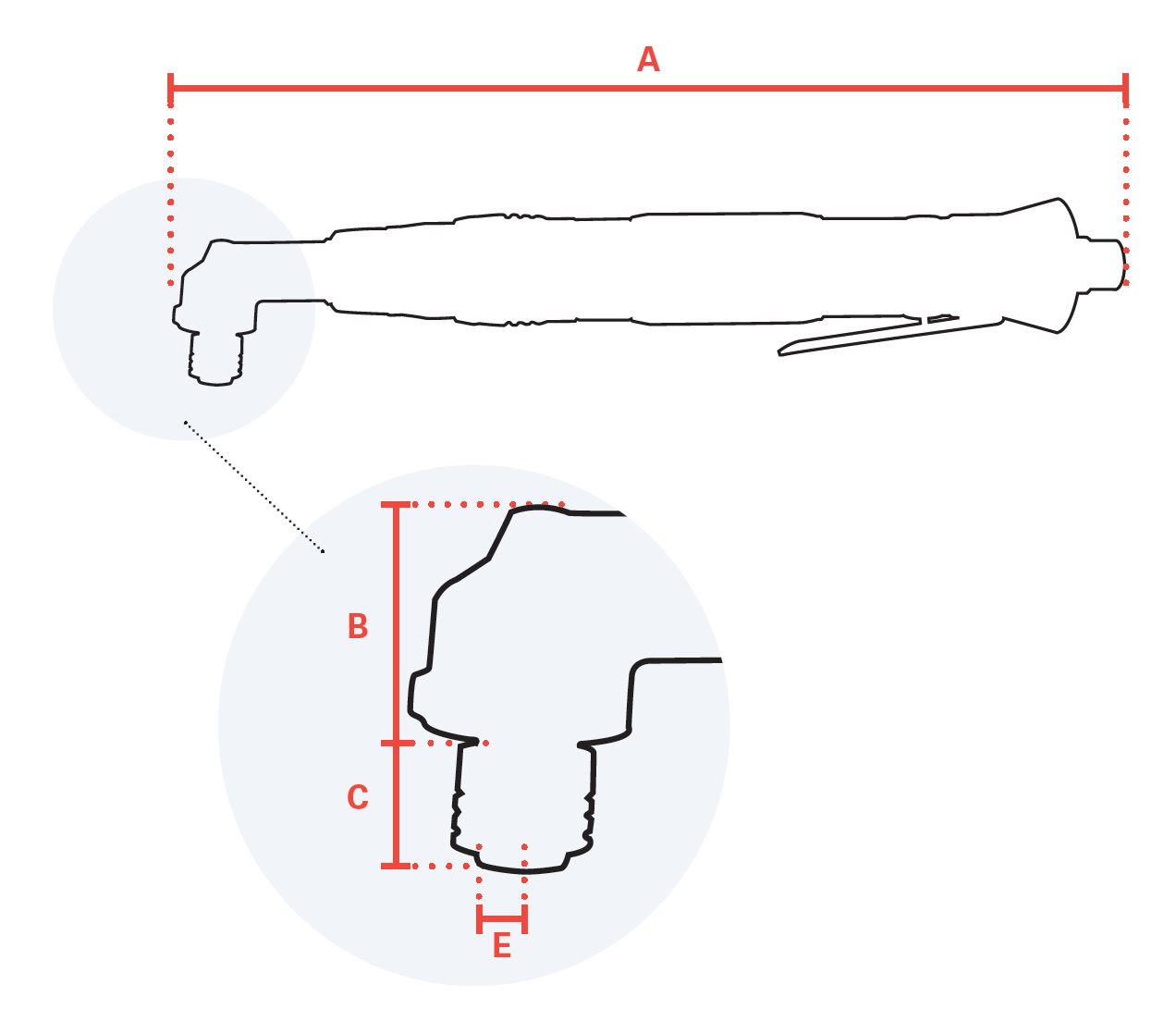

| mm A | 350 |
| mm B | 30,5 |
| mm C | 15,8 |
| mm D | . |
| mm E | 13,5 |
| Hosediameter (mm) | 6,5 |
| Execution | Angle |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 0,7 |
| Vibration uncertainty (m/s²) | 0,56 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 72,4 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981295111 |
Manuals
| RRI-SA31108W-SK.pdf | Download |
| RRI-SA31108W-EN.pdf | Download |
| RRI-SA31108W-NO.pdf | Download |
| RRI-SA31108W-DA.pdf | Download |
| RRI-SA31108W-FR.pdf | Download |
| RRI-SA31108W-NL.pdf | Download |
| RRI-SA31108W-DE.pdf | Download |
| RRI-SA31108W-FI.pdf | Download |
| RRI-SA31108W-ES.pdf | Download |
| RRI-SA31108W-EL.pdf | Download |
| RRI-SA31108W-PL.pdf | Download |
| RRI-SA31108W-IT.pdf | Download |
| RRI-SA31108W-SV.pdf | Download |
| RRI-SA31108W - QR Card.pdf | Download |
