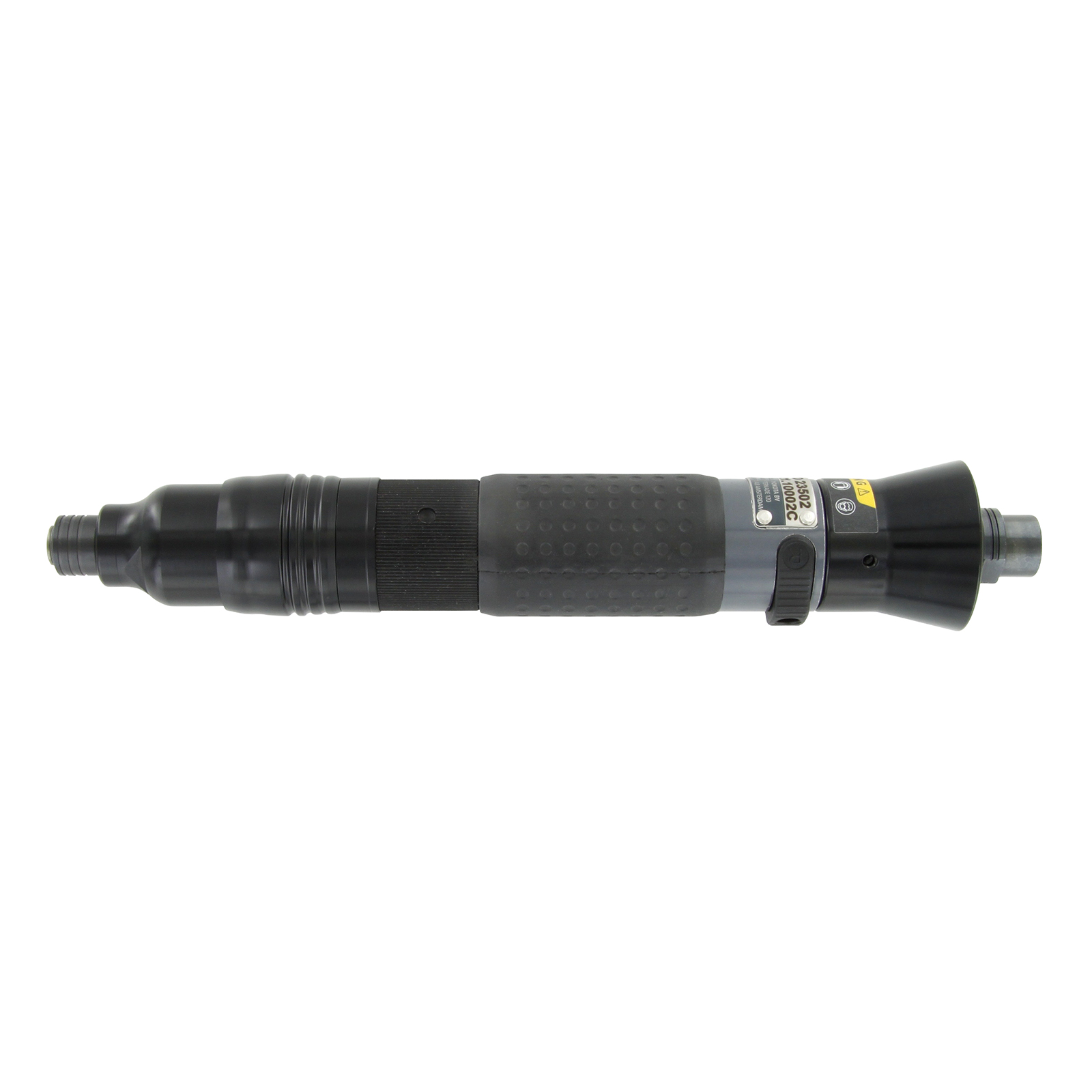

The RED ROOSTER Shut-Off screwdrivers have a large torque-range, are highly accurate and have a low vibration level. Very ergonomic design and low noise level. The special design of the clutch combines low reaction forces with a high repeatability of the torque. This air tool is designed for the assembly industry, where threaded fasteners are used.
Characteristics:
• New straight body-design with soft grip
• Reversible
• Rear-exhaust, silenced
• ergonomic grip, push-to-start
• easily adjustable
Related products
AC30A-F03E-B
Modular FRL Unit
HTB-0
Spring Balancer Hosereel
Related accessories
Specifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 4 |
| RPM | 2000 |
| Torque (Nm) | 0,8 - 4,5 |
| Airconsumption (l/s) | 11 |
| Weight (kg) | 0,87 |
| Hexagon | 1/4" |
| Sound level (dB(A)) | 73 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

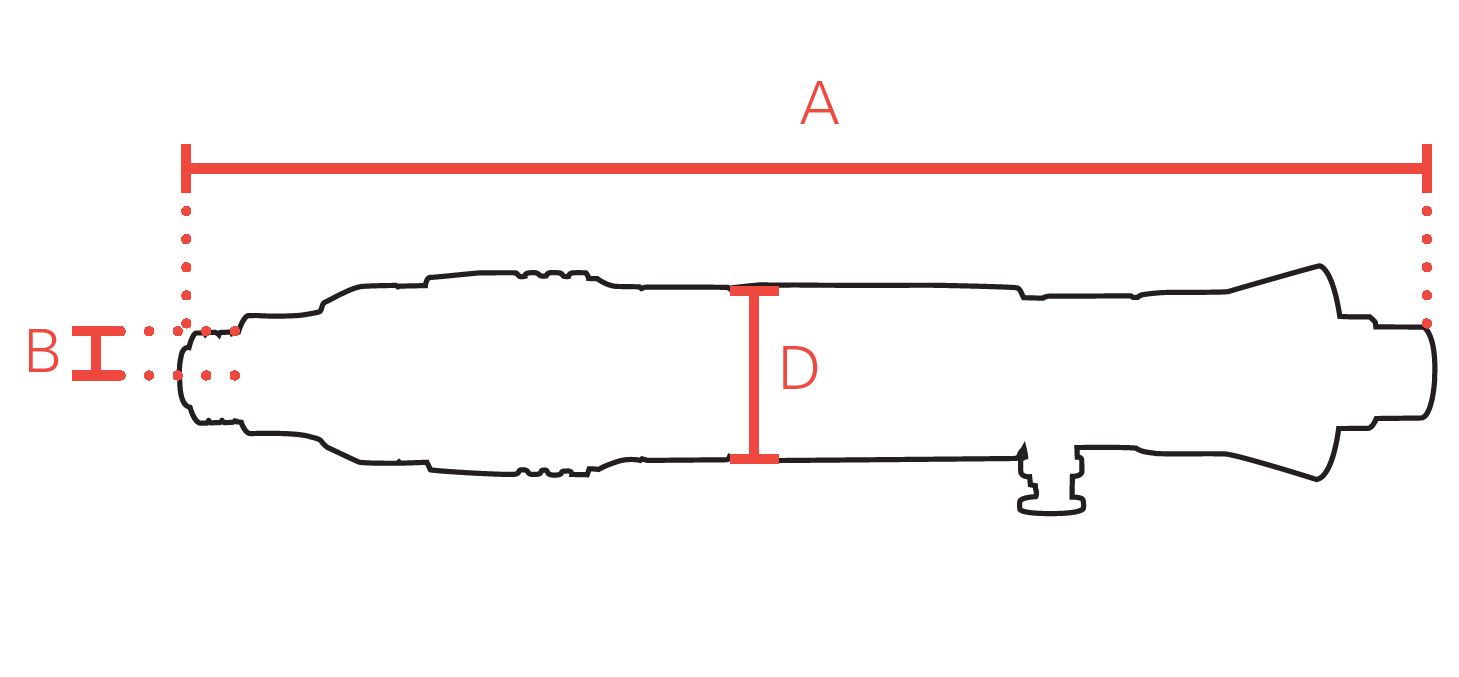

| mm A | 269 |
| mm B | 39 |
| mm C | 16 |
| mm D | 15 |
| Hosediameter (mm) | 6,5 |
| Execution | Straight - push start |
| Vibration level (m/s²) | < 2,5 |
| Safety standard | EN ISO 11148-6 |
| EAN | 8717981414581 |
Manuals
| RRI-SD22004-FI.pdf | Download |
| RRI-SD22004-ES.pdf | Download |
| RRI-SD22004-EL.pdf | Download |
| RRI-SD22004-NL.pdf | Download |
| RRI-SD22004-NO.pdf | Download |
| RRI-SD22004-SV.pdf | Download |
| RRI-SD22004-FR.pdf | Download |
| RRI-SD22004-DA.pdf | Download |
| RRI-SD22004-EN.pdf | Download |
| RRI-SD22004-DE.pdf | Download |
| RRI-SD22004-PL.pdf | Download |
| RRI-SD22004-IT.pdf | Download |
| RRI-SD22004-PT.pdf | Download |
| RRI-SD22004-SK.pdf | Download |
| RRI-SD22004 - QR Card.pdf | Download |
