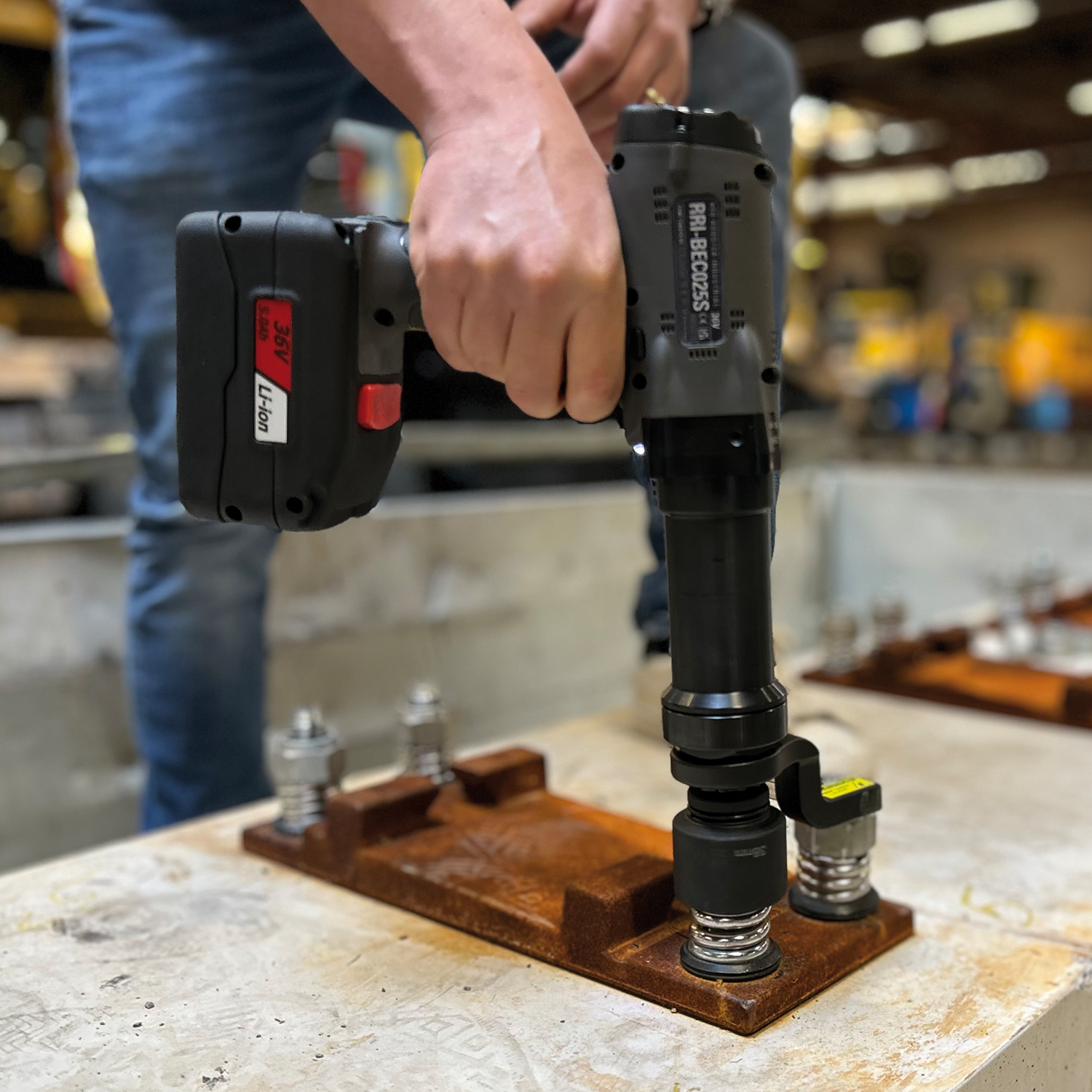

RED ROOSTER Cordless high torque geared wrench. Very well suited for assembly applications with a need of good torque accuracy. Especially in areas where cables and hoses impede handling flexibility. Contactless trigger and forward / reverse switch for a long lifetime. Version with two-hand safety control.
Characteristics:
• Brushless motor
• 36 Volt Lithium-Ion battery
• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Adjustable torque in 50 steps
• Display shows torque and setting
• automatic reaction arm release
• Tightening data retrievable via USB interface
Standard reaction arm is included. Batteries, charger and other accessories must be ordered separately.
Related accessories
SW40-283-0102
Hanger
31084-360F
36V Charger
31022-GW001
Reaction Bar RRI-BEC025-250
31022-GW017
Reaction Welding Ring RRI-BEC055
31022-GW010
Reaction Bar RRI-BEC025-250
31022-GW012
Reaction Bar Adapter RRI-BEC055
31022-GW009
Reaction Bar RRI-BEC025-250
33257-RRI-BEC055
Standard Reaction Bar RRI-BEC055
31022-GW015
Sliding Reaction Plate RRI-BEC055
Koffer RRI-BEC055
Case RRI-BEC055
DOESR-1
Ret Ring
BB360F-350
36V 5.0Ah Li-ion Battery
Specifications
| Brand | Red Rooster Industrial |
| Square Drive | 3/4" |
| Bolt capacity (mm) | 14 ~ 24 |
| RPM | 170 / 33 |
| Torque (Nm) | 110 ~ 550 |
| Weight w/o battery (kg) | 3,5 |
| Sound level (dB(A)) | <80 |
| mm A | 130 |
| mm B | 70 |
| mm C | 314 |
| mm D | 228 |
| mm E | 260 |
| mm F | Ø 60 |
| mm L | 50 |
| Battery voltage (Volt) | 36 |
| Battery type Li-ion….(Ah) | 5,0 |
| EAN | 8717981454440 |
