RED ROOSTER cordless angle wrench with automatic shut-off. Very well suited for assembly applications with a need of good torque accuracy. Especially in areas where cables and hoses impede handling flexibility, such as interiors of cars, coaches and trains.
Characteristics:
• Brushless motor
• 18 Volt Lithium-Ion battery
• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Adjustable torque (5-11 Nm)
• Speed 620 RPM
• in-line closed geared offset head with 12 mm Hexagon drive
• Compact and light weight
Battery and charger to be ordered separately
Related products
BB200D-325
20V 2.5Ah Battery, Li-ion
B74SC180B
Programmer
BB200D-350
20V 5.0Ah Battery, Li-ion
B84192B
18-20V Charger
E86B-VD
Power Cord (EU)
Related accessories
33116-B200D-01
Protection Cover
33116-B200D-02
Protection Cover
00-4507
Torque Adjust Key RRI screwdriver

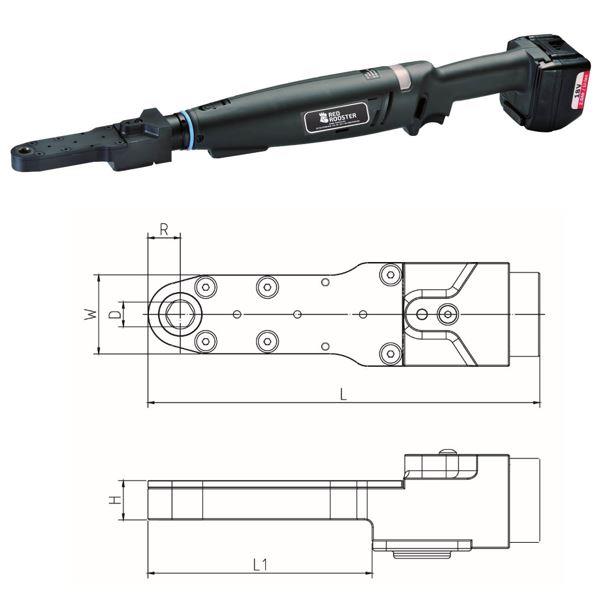

Specifications
| Brand | Red Rooster Industrial |
| RPM | 620 |
| Torque (Nm) | 5 - 11 |
| Weight (kg) | 2,2 |
| mm A | 480 |
| mm B | 87 |
| mm D | 12 |
| mm H | 16 |
| mm L | 159 |
| mm R | 13,1 |
| mm W | 32 |
| A/F (mm) | 12 |
| L1 mm | 91 |
| Battery voltage (Volt) | 20 |
| Battery type Li-ion….(Ah) | 2,5 / 5,0 |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 12,5 |
| Vibration uncertainty (m/s²) | 1,5 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 73,3 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981357215 |
