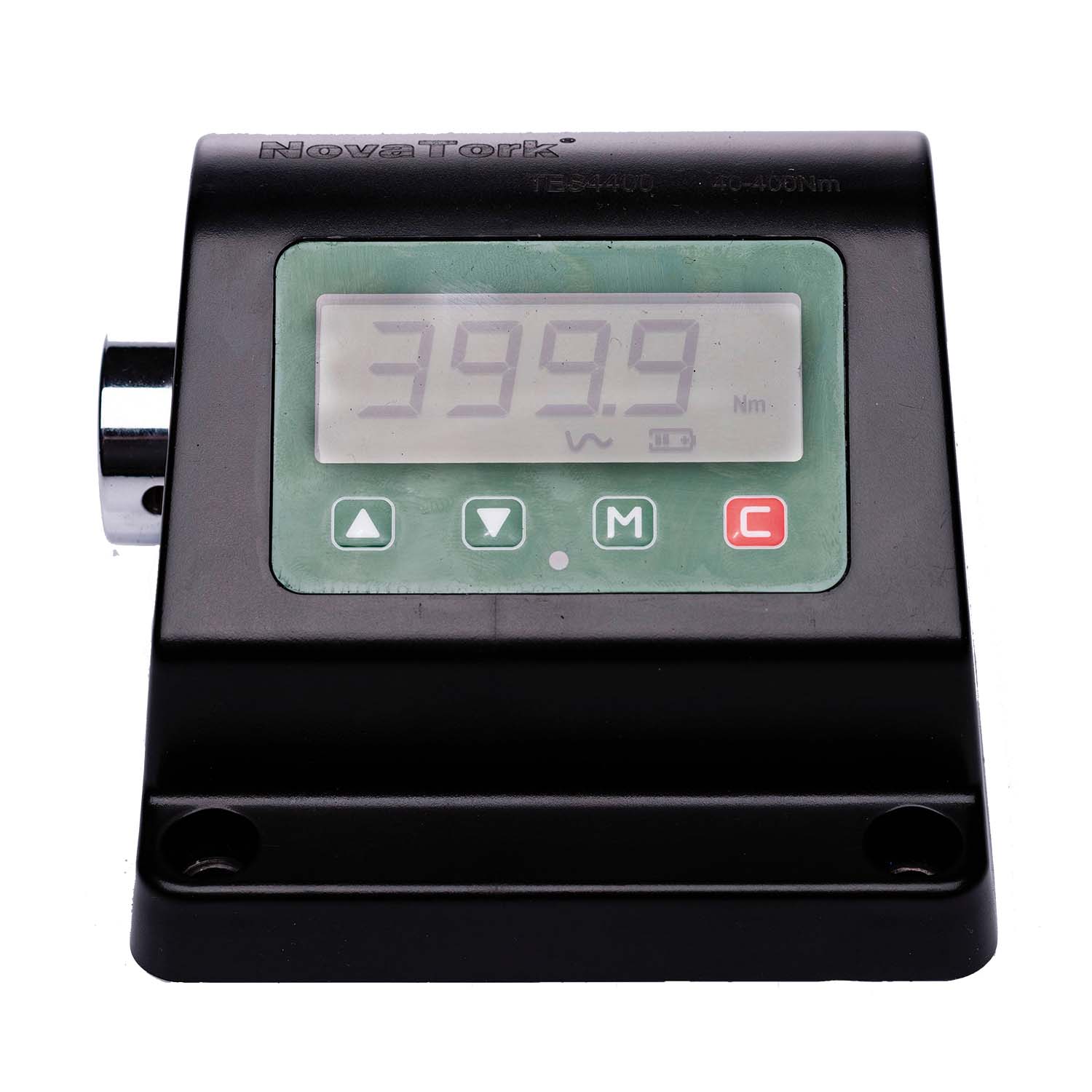

Designed for calibration or inspection of torque wrenches at the production site.

• Accuracy: ±1% from 10% to 100% of capacity.
• 4 Units: Nm, Kgcm, Lbft, Lbin.
• Three test mode: First Peak, Peak and Track.
• Peak value hold function for First Peak and Peak mode.
• Three-color light and buzzer will alarm when the torque reaches the set value.
• Torque error percentage display function, saves the operator from tedious calculations.
• Backlight optional, good for low light conditions.
• Memory function: Store 1500 sets of data as required, each set include time, unit, and value.
• Battery capacity display.
• Micro-USB port for charging and uploading data to computer.
• Built-in rechargeable lithium battery, easy to charge by connecting the power adapter.
• Four bolts are designed at the bottom for fixing the tester on a workbench or other floor.
• Automatic shutdown after 10 minutes of non-use.






Specifications

Brand NovaTork
Square Drive 3/4"
Torque (Nm) 110 ~ 1100
Weight (kg) 3,4

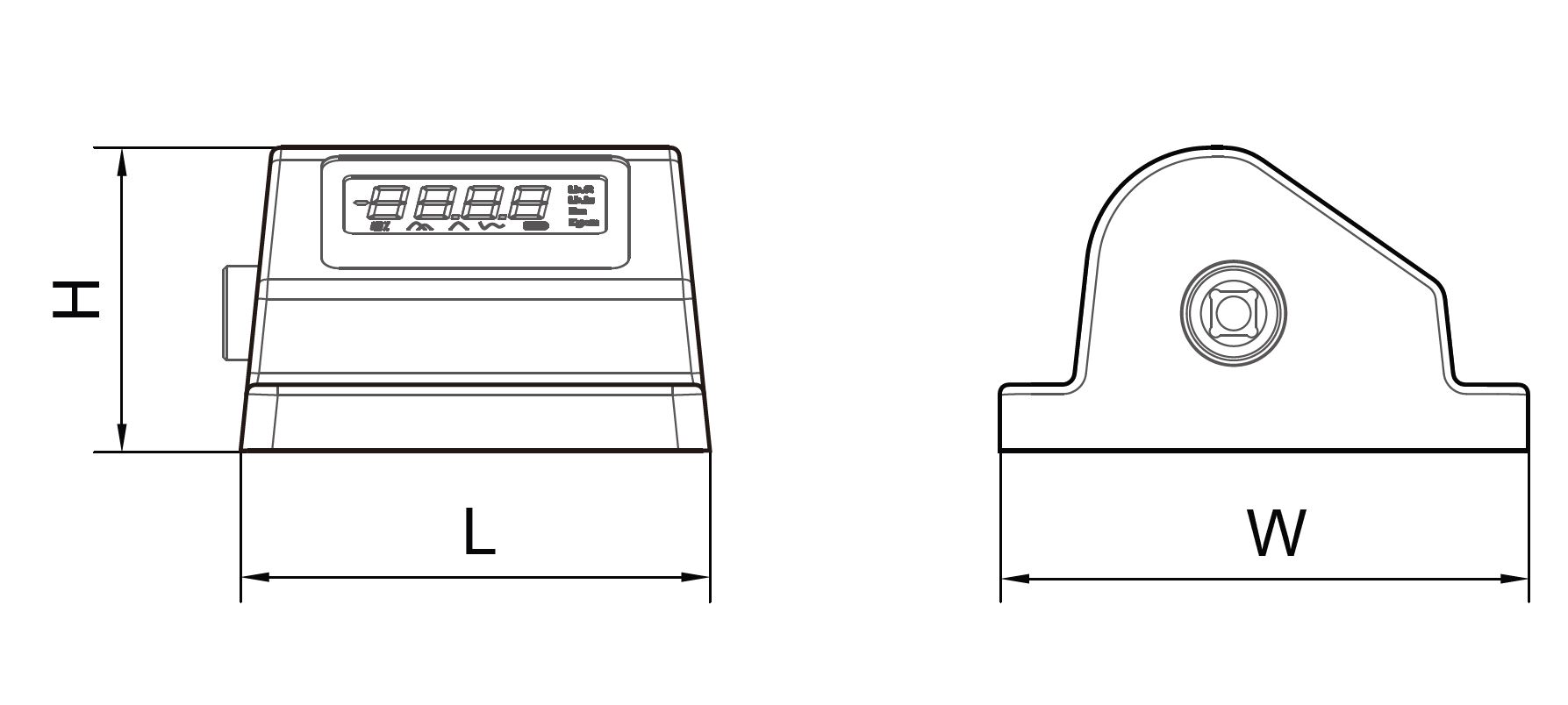

mm H 85
mm W 136
L mm 135
EAN 8717981425426



Manuals

TES41100-EN.pdf Download
TES41100 - QR Card.pdf Download
