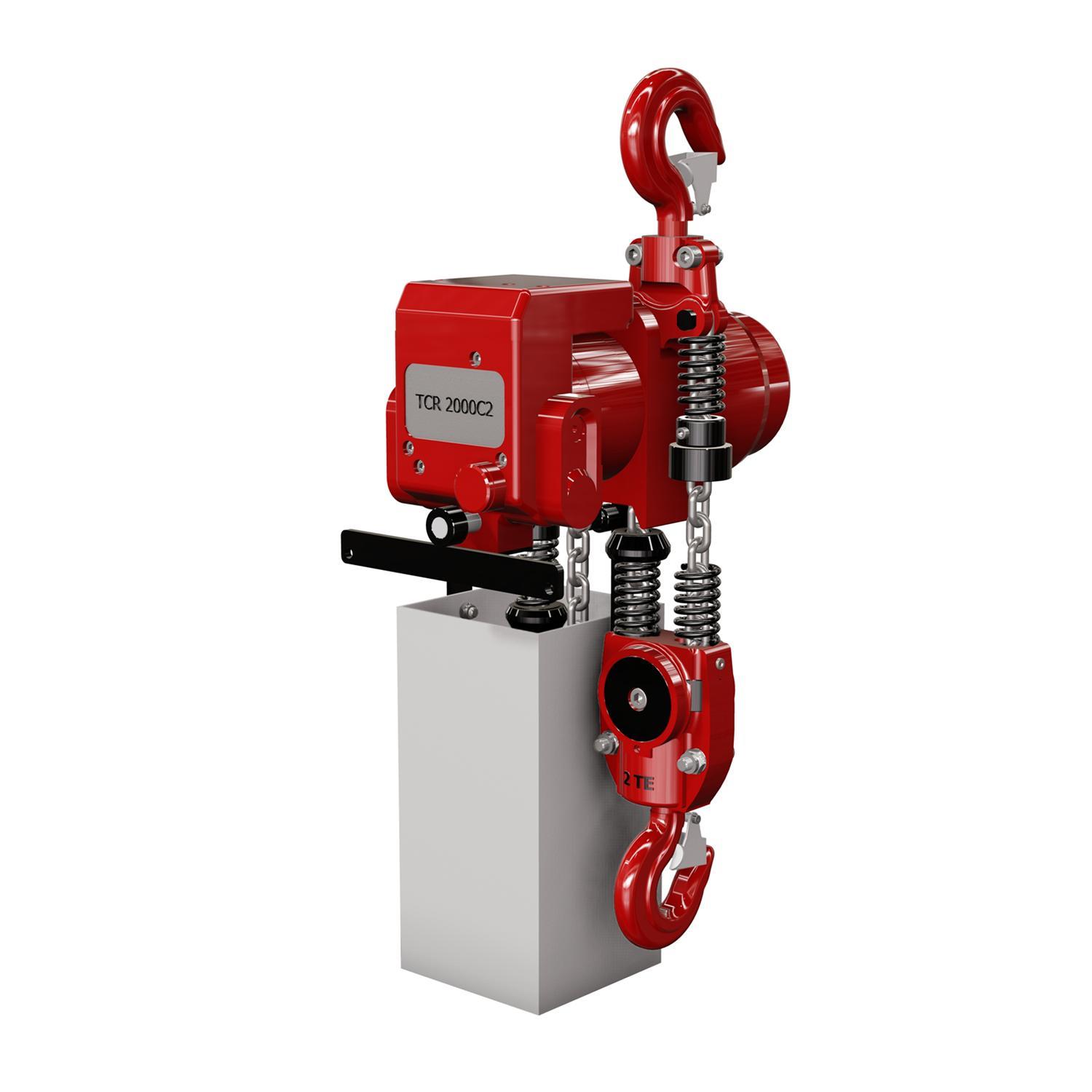

These RED ROOSTER Air Chain Hoists are especially developed for heavy industrial use.
Robust cast steel body. Valveblock same for all models, less spare parts. Standard with load limiter.
Characteristics:
o Precise variable speed control
o Optimum control of the load, very precise positioning
o Compact design
o Endstop system
o Load limiter built-in without loss of headroom
o Push button control
o Quiet, low noise level, silenced
o Air pressure 0,4 - 0,63 MPa (4 - 6,3 Bar)

The price includes three meter of lift and two meter of control length, excluding the chain bucket.





Specifications

Brand Red Rooster
Number of chain falls 2
Lowering speed full load (m/min) 4,7
Lowering speed 0-load (m/min) 3,3
Weight incl. 3m lift (kg) 40
Lifting speed full load (m/min) 2,9
Lifting speed 0-load (m/min) 5,3
Chain weight (kg/m) 2,2
Chain (mm) 7,1 x 21
Chainbag/Chainbucket +
Loadlimiter +
Airconnection 1/2" BSPT
Airpress max. (MPa) 0,63
Airconsumption fullload (l/s) 23,3

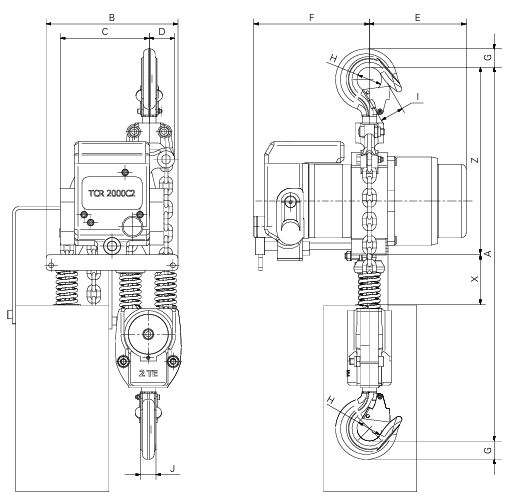

mm A 595
mm B 212
mm C 166
mm D 46
mm E 156
mm F 186
mm G 37
mm H 45
mm I 29
mm J 30
mm X 100
mm Z 280
Hosediameter (mm) 13
SMC Airtreatment unit AC40-F04DM-8-B
Capacity (kg) 2000
EAN 8717981391806
