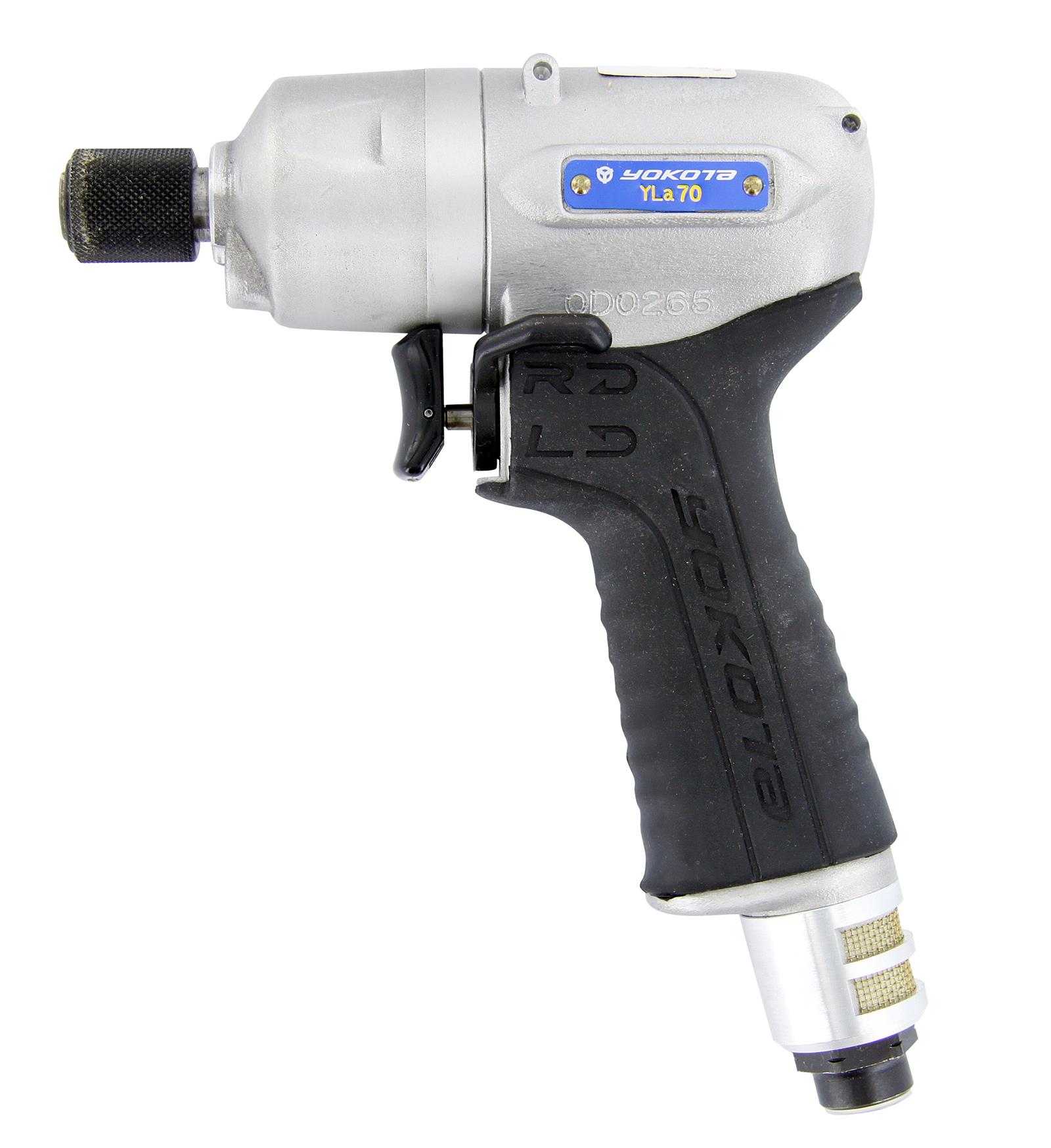

Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. Pistol model with double chamber airmotor. Extremely low weight and adapted for use with non-lubricated air.
Related products
TW-3
Spring balancer 1,0-3,0 kg
Related accessories
0189-0029-00-00
Rubber protection cover YLA60 /70
61022-TH002
Tool Holder, diameter 47mm
YouTubeSpecifications
| Brand | Yokota |
| Bolt capacity (mm) | 6 |
| RPM | 4000 |
| Torque (Nm) | 9 - 20 |
| Weight (kg) | 0,78 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| Airconsumption fullload (l/s) | 5,0 |

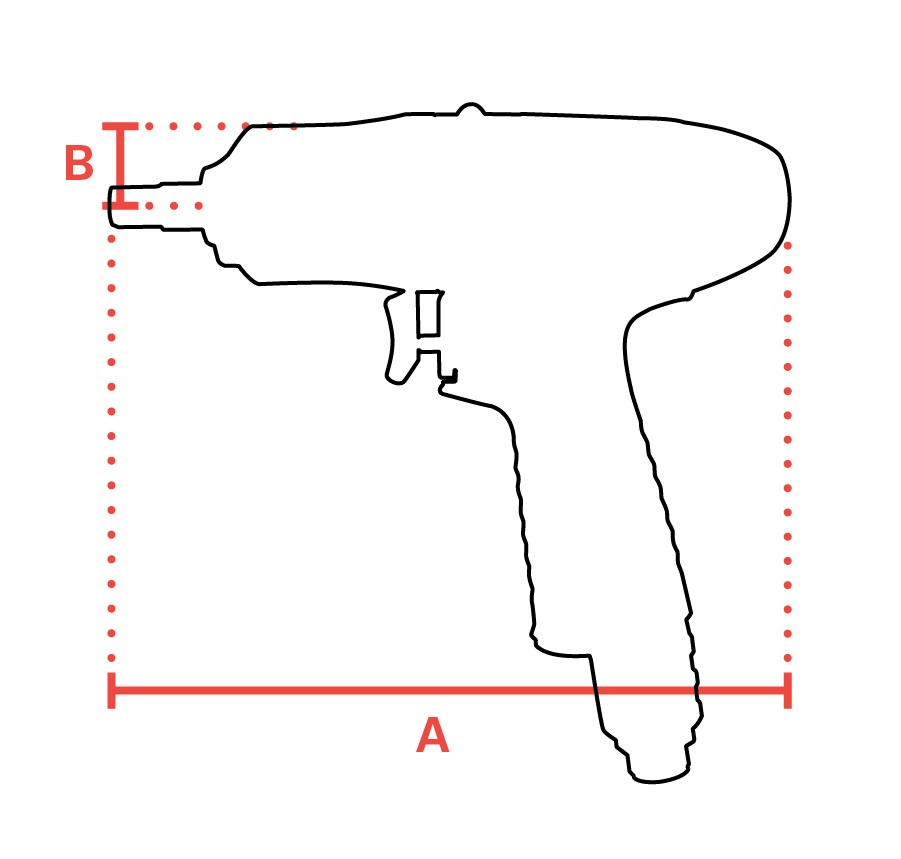

| mm A | 130 |
| mm B | 22 |
| Hosediameter (mm) | 6,5 |
| Square Drive / Hexagon | 1/4" |
| Safety standard | EN ISO 11148-6 |
| Air consumption no load (l/s) | 5,5 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | < 2,5 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 71 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981265145 |
Manuals
| YLA60A-FR.pdf | Download |
| YLA60A-DE.pdf | Download |
| YLA60A-NL.pdf | Download |
| YLA60A-EN.pdf | Download |
| YLA60A - QR Card.pdf | Download |
