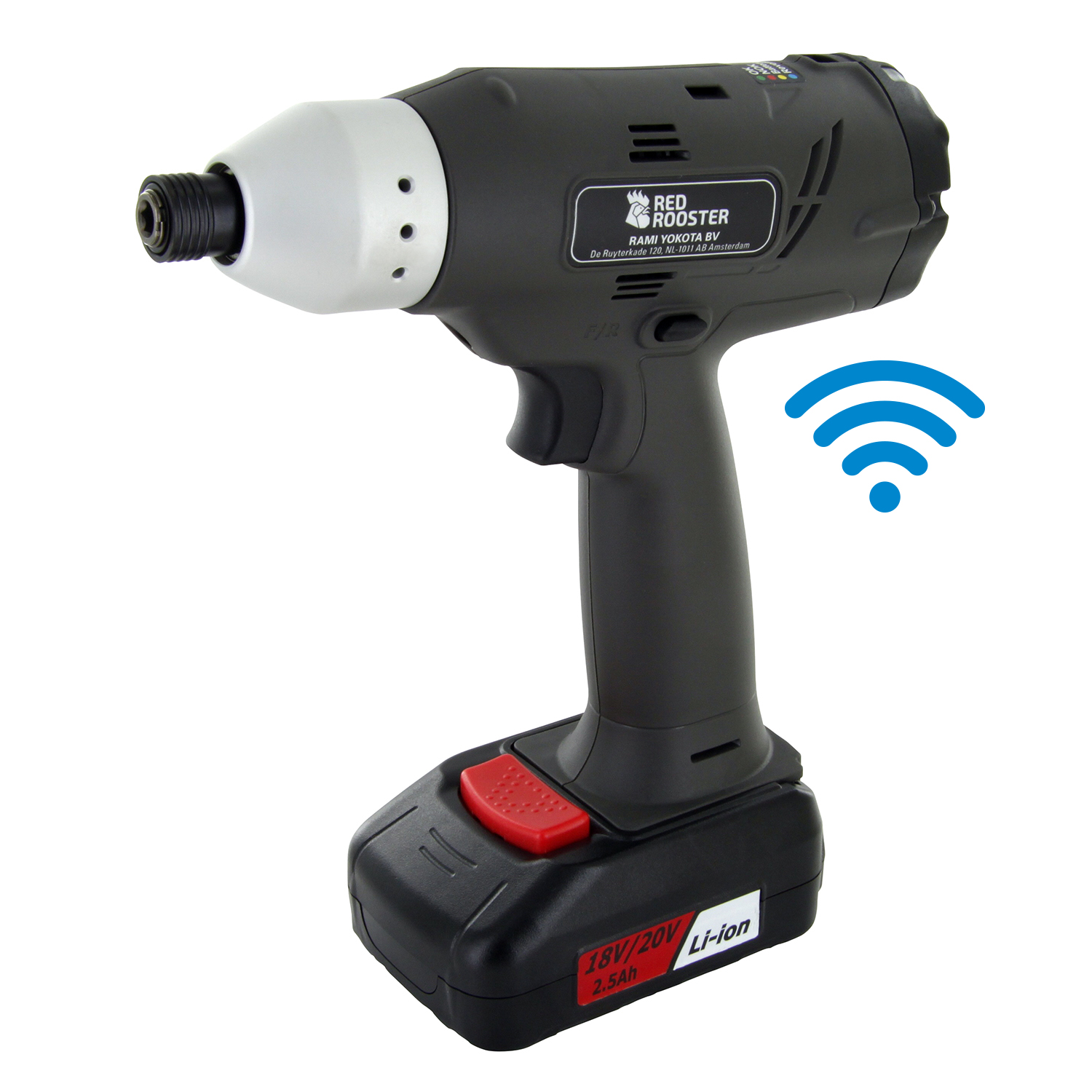

RED ROOSTER Cordless transducerized screwdriver. Very well suited for assembly applications where good torque accuracy is required. 8 programs can be set for both torque and angular displacement. The programs can be easily selected or programmed in a fixed sequence. Contactless trigger and forward / reverse switch for a long lifetime. Repeatability Cm/Cmk > 2 at +/- 7%.
Characteristics:
• Brushless motor
• 20 Volt Lithium-Ion battery
• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Tightening mode setting – Torque or Angle
• Programmable torque
• Programmable angle limits
• Programmable speed
• Group check / counting
• 8 programs including sequence
• Compact and light weight
• Tightening Data collection by WLAN
• Battery (2,5 Ah: BB200D-325; 5,0 Ah: BB200D-350) and charger (B84192B) to be ordered separately
Related products
DWL-B
2.4G/5.8G WLAN receiver
BB200D-325
20V 2.5Ah Battery, Li-ion
BB200D-350
20V 5.0Ah Battery, Li-ion
B84192B
18-20V Charger
Related accessories
D39SC180B-1
Suspension Bail
33116-B200D-01
Protection Cover
61022-TH005
Tool Holder
32088-NPA-01
Cable
33116-B200D-02
Protection Cover
61022-TH003
Tool Holder, diameter 58mm
33116-NPA-01
Protection Cover RRI-BCP
Specifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 6 |
| RPM | 100 - 500 |
| Torque (Nm) | 5 - 16 |
| Weight w/o battery (kg) | 1,01 |
| Hexagon | 1/4" |

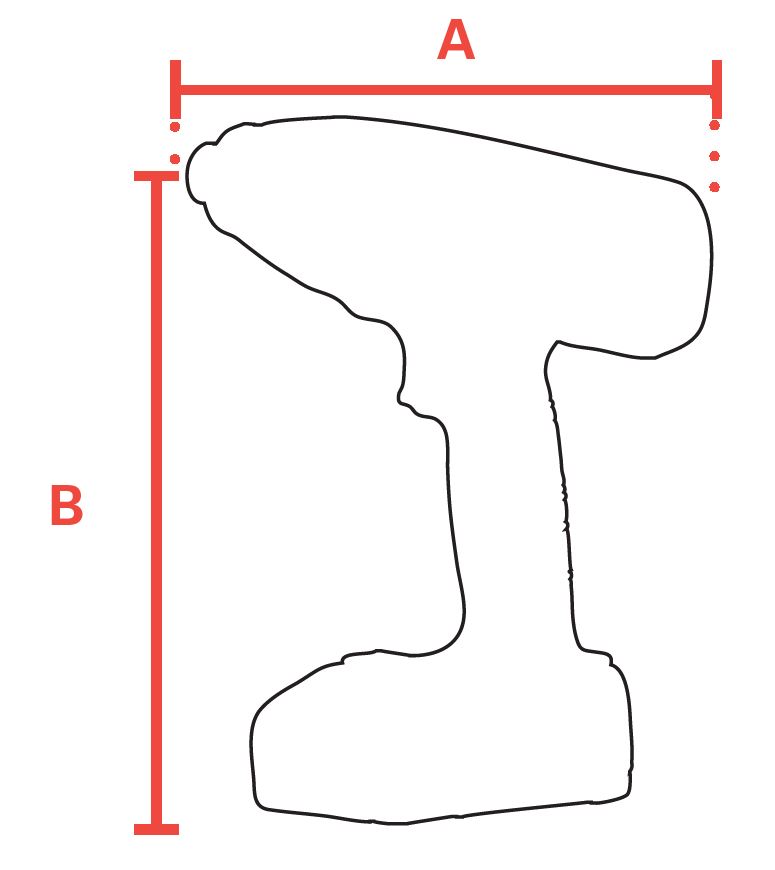

| mm A | 202,5 |
| mm B | 240,5 |
| Battery voltage (Volt) | 20 |
| Battery type Li-ion….(Ah) | 2,5 / 5,0 |
| Safety standard | EN ISO 11148-6 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | < 75 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981440375 |
