Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. Pistol model with double chamber airmotor.
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
61022-TH004
Tool Holder, diameter 73mm
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Bolt capacity (mm) | 16 |
| RPM | 3300 |
| Torque (Nm) | 160 - 270 |
| Weight (kg) | 3,20 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| Airconsumption fullload (l/s) | 13,1 |

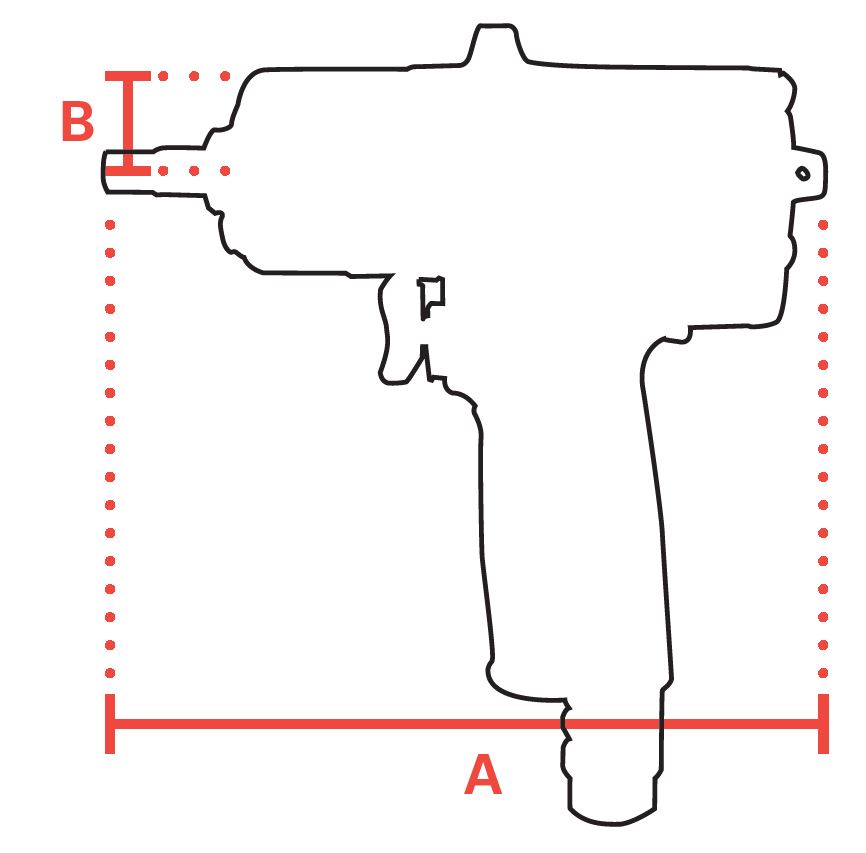

| mm A | 226 |
| mm B | 36 |
| Hosediameter (mm) | 12,7 |
| Square Drive / Hexagon | 3/4" |
| Safety standard | EN ISO 11148-6 |
| Air consumption no load (l/s) | 18,4 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 7,7 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 82 |
| Sound power (dB(A)) | 93 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981012640 |
Manuals
| Y-140-FR.pdf | Download |
| Y-140-EL.pdf | Download |
| Y-140-PL.pdf | Download |
| Y-140-DE.pdf | Download |
| Y-140-SV.pdf | Download |
| Y-140-DA.pdf | Download |
| Y-140-SK.pdf | Download |
| Y-140-IT.pdf | Download |
| Y-140-NL.pdf | Download |
| Y-140-PT.pdf | Download |
| Y-140-NO.pdf | Download |
| Y-140-FI.pdf | Download |
| Y-140-ES.pdf | Download |
| Y-140-EN.pdf | Download |
| Y-140 - QR Card.pdf | Download |
