Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. Product liability is essential to carmakers. All tightened joints have to be correct. For this reason all bolted joints must be counted, documented and, of course, tightened with the right clamping force. In order to do this, you need an impulse wrench (with a built-in transducer) connected to a controller. If the controller establishes that the tightened joints do not meet the specifications, it can give a line-stop signal and the joints have to be checked manually.
Characteristics:
* Very low weight / torque ratio
* High speed fastening
* No-lube airmotor
* No Kickback
* Acoustic status-signals on back-cover

Related products

TW-3

Spring balancer 1,0-3,0 kg

SKK

Tool Holder



Related accessories

0341-0018-00-00

Hanger Ring Heavy Duty

0186-0029-00-00

Rubber protection cover TKA60/70



Specifications

Brand Yokota
Bolt capacity (mm) 6
RPM 6000
Torque (Nm) 11 - 16
Airconsumption (l/s) 4,5
Weight (kg) 1,3
Airconnection PT 1/4"
Airpress max. (MPa) 0,63

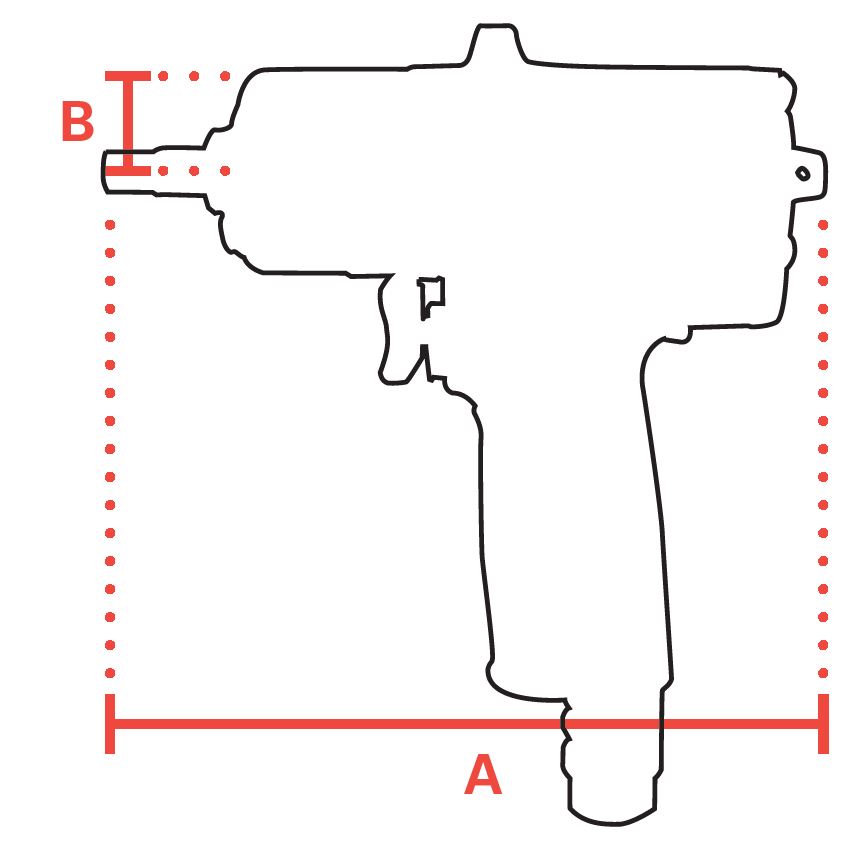

mm A 179
mm B 22
Hosediameter (mm) 6,5
Square Drive / Hexagon 1/4" Hex
Safety standard EN ISO 11148-6
Air consumption no load (l/s) 5,1
Vibration standard EN ISO 28927-2
Vibration value (m/s²) < 2,5
Vibration uncertainty (m/s²) 1
Sound standard ISO 15744
Sound pressure (dB(A)) 71
Sound uncertainty (dB(A)) 3
EAN 8717981263837
