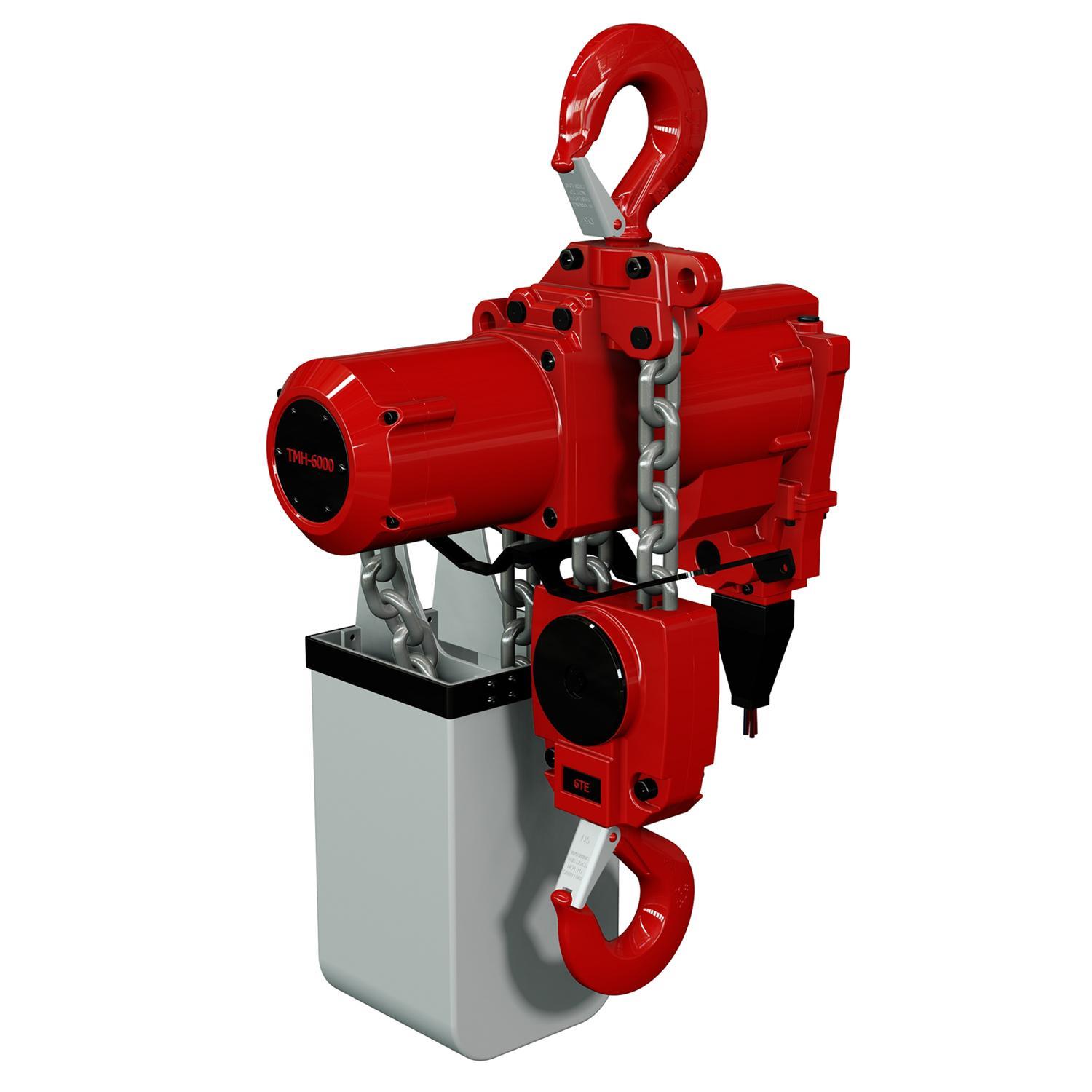

The RED ROOSTER TMH series air chain hoists has the highest lifting speed with the lowest headroom on the hoist market. With M4 classification of mechanism this hoist is extremely reliable. This hoist will guarantee the continuity of your process. The TMH hoists are designed with a full load supporting eye for installation.
Standard features:
o Precise variable speed control (cord control)
o Optimum control of the load, very precise positioning
o Main air shut off valve
o Mechanical end stop system
o Load limiter built-in without loss of headroom
o Low noise level
o Working air pressure 0,4 - 0,63 MPa (4-6,3 bar)
o Piped away exhaust air
o Cord control
The price includes three meter of lift and two meter of control length, excluding the chain bucket.
Related products
AC60-F10DM-8-B
Modular FRL Unit
Specifications
| Brand | Red Rooster |
| Number of chain falls | 2 |
| Lowering speed full load (m/min) | 5,1 |
| Lowering speed 0-load (m/min) | 3,6 |
| Weight incl. 3m lift (kg) | 103 |
| Lifting speed full load (m/min) | 2,8 |
| Lifting speed 0-load (m/min) | 5,4 |
| Chain weight (kg/m) | 7,6 |
| Chain (mm) | 13 x 36 |
| Chainbag/Chainbucket | + |
| Loadlimiter | + |
| Airconnection | 1" BSPT |
| Airpress max. (MPa) | 0,63 |
| Airconsumption fullload (l/s) | 58,3 |
| mm A | 737 |
| mm B | 245 |
| mm C | 130 |
| mm D | 265 |
| mm E | 315 |
| mm F | 65 |
| mm G | 42 |
| mm H | 42 |
| mm I | 49 |
| mm J | 170 |
| Hosediameter (mm) | 19 |
| SMC Airtreatment unit | AC60-F10DM-8-B |
| Capacity (kg) | 6000 |
| Airconnection exhaust | 1" |
| EAN | 8717981391837 |
