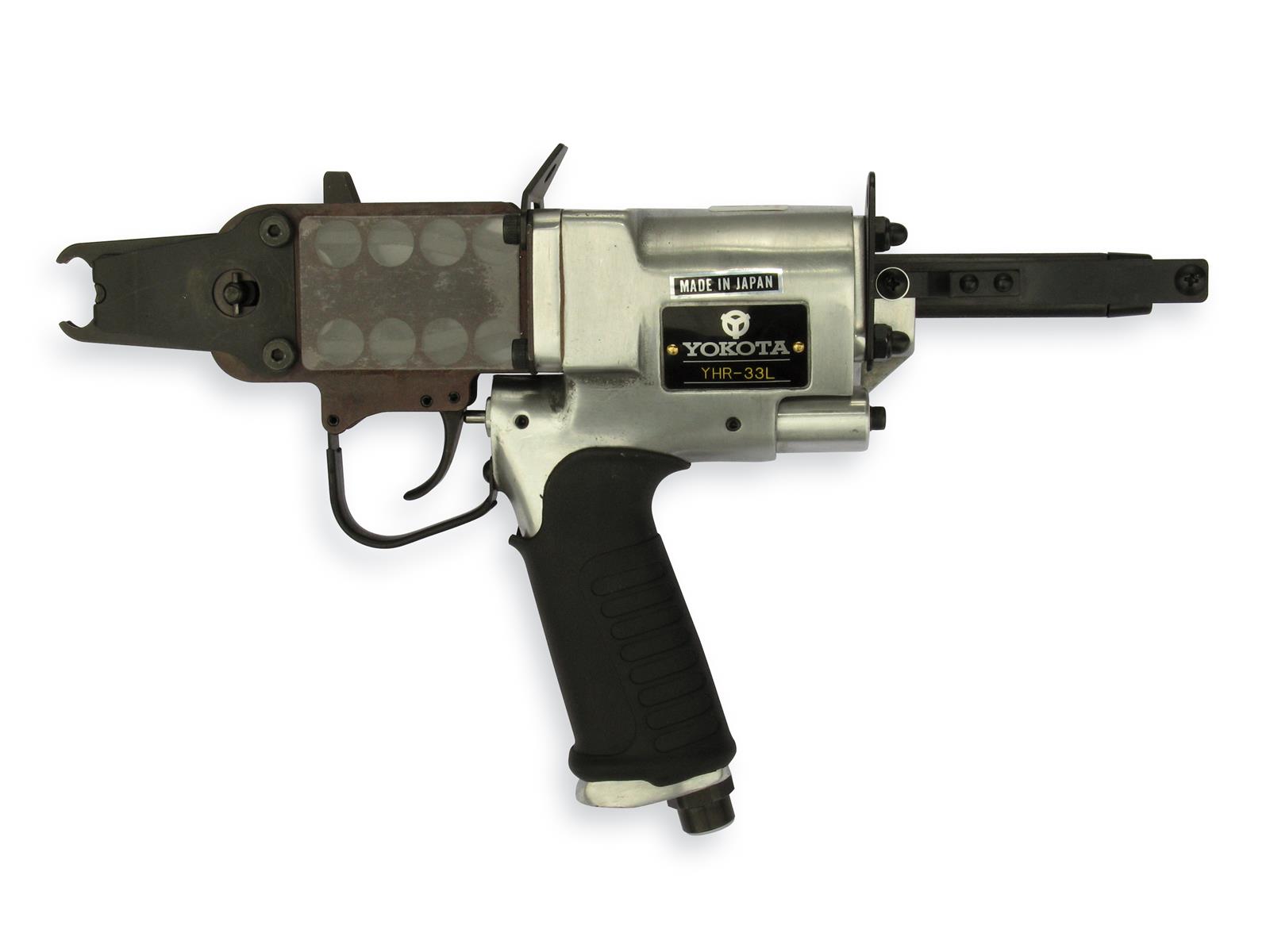

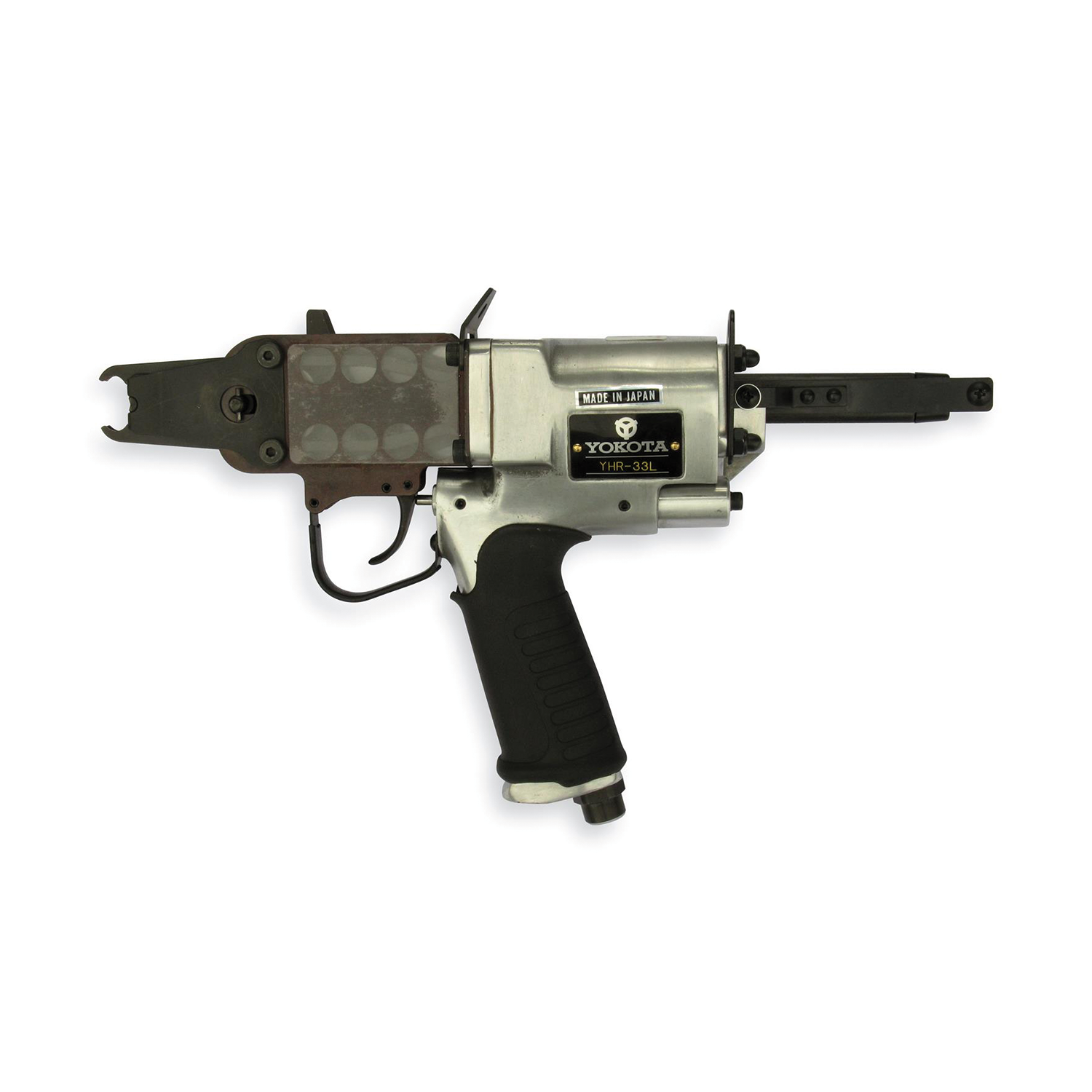

The Yokota hog ringers are used for the assembly of car-seats, chairs, beds, fencing, etc. This tool is used to fix the cushion material or the leather material on the seat-frame with hog rings.
Specifications
| Brand | Yokota |
| Airconsumption (l/s) | 0,8 |
| Weight (kg) | 1,5 |
| Sound level (dB(A)) | 79 |
| Ring size (mm) | 8,0 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| Max. number of rings | 120 |

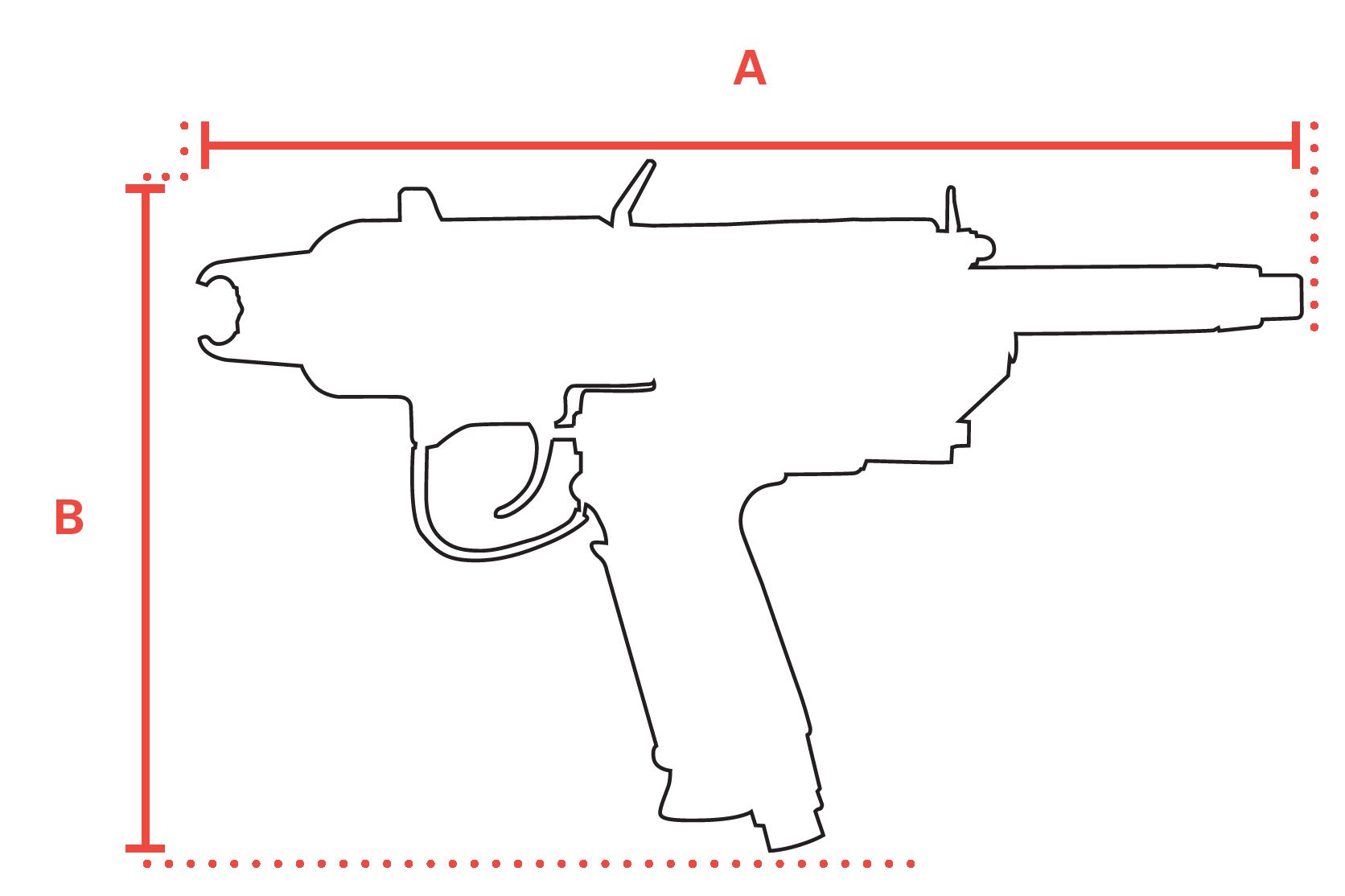

| mm A | 346 |
| mm B | 188 |
| T mm | 7 |
| Hosediameter (mm) | 6,5 |
| Trigger force | 0,6 |
| Vibration level (m/s²) | 1,66 |
| Safety standard | EN ISO 11148-2 |
| EAN | 8717981034529 |
Manuals
| YHR-33-IT.pdf | Download |
| YHR-33-SK.pdf | Download |
| YHR-33-DE.pdf | Download |
| YHR-33-PT.pdf | Download |
| YHR-33-SV.pdf | Download |
| YHR-33-EL.pdf | Download |
| YHR-33-FI.pdf | Download |
| YHR-33-DA.pdf | Download |
| YHR-33-FR.pdf | Download |
| YHR-33-EN.pdf | Download |
| YHR-33-PL.pdf | Download |
| YHR-33-NL.pdf | Download |
| YHR-33-ES.pdf | Download |
| YHR-33-NO.pdf | Download |
| YHR-33 - QR Card.pdf | Download |
