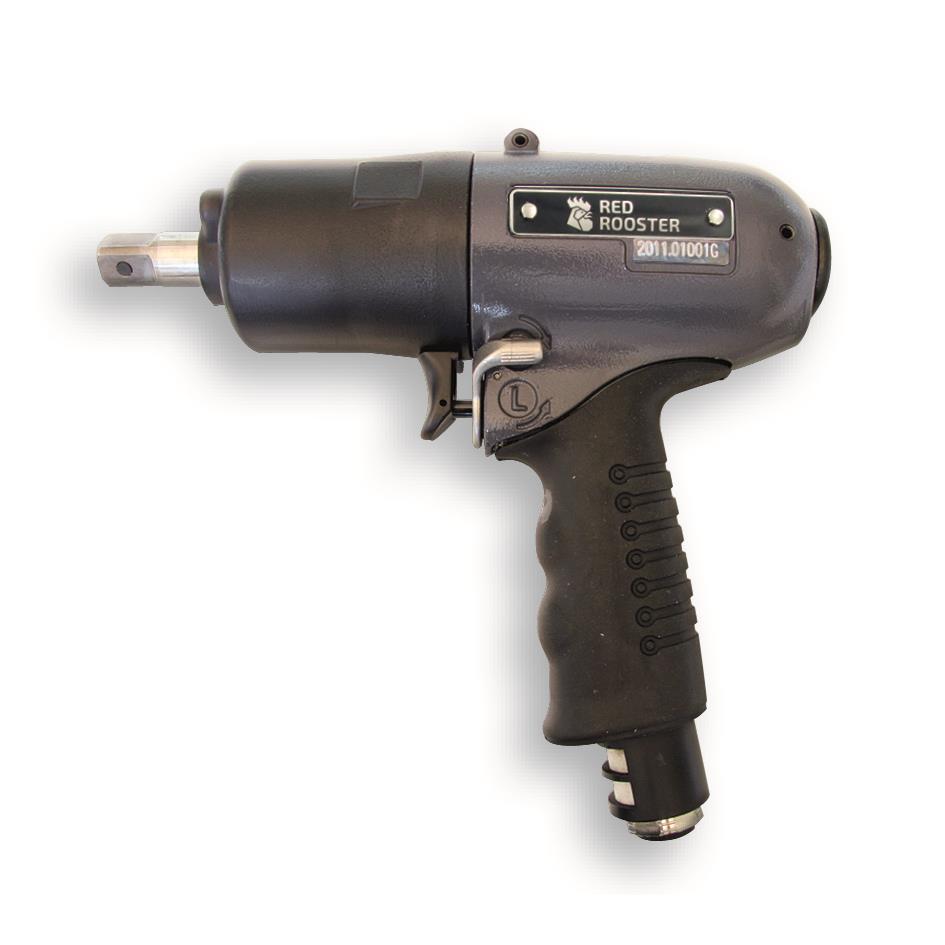

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Pistol model
• Auto shut off function
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
61022-TH003
Tool Holder, diameter 58mm
ATLUB
Air Tool Oil, 1 litre
YouTubeSpecifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 10 - 12 |
| RPM | 5100 |
| Torque (Nm) | 40 - 68 |
| Airconsumption (l/s) | 9,3 |
| Weight (kg) | 1,21 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 194 |
| mm B | 170 |
| mm C | 53,5 |
| mm D | 25 |
| mm E | 12 |
| Hosediameter (mm) | 8 |
| Square Drive / Hexagon | 3/8" |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration uncertainty (m/s²) | 1,02 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 81,2 |
| Sound power (dB(A)) | 92,2 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981280629 |
