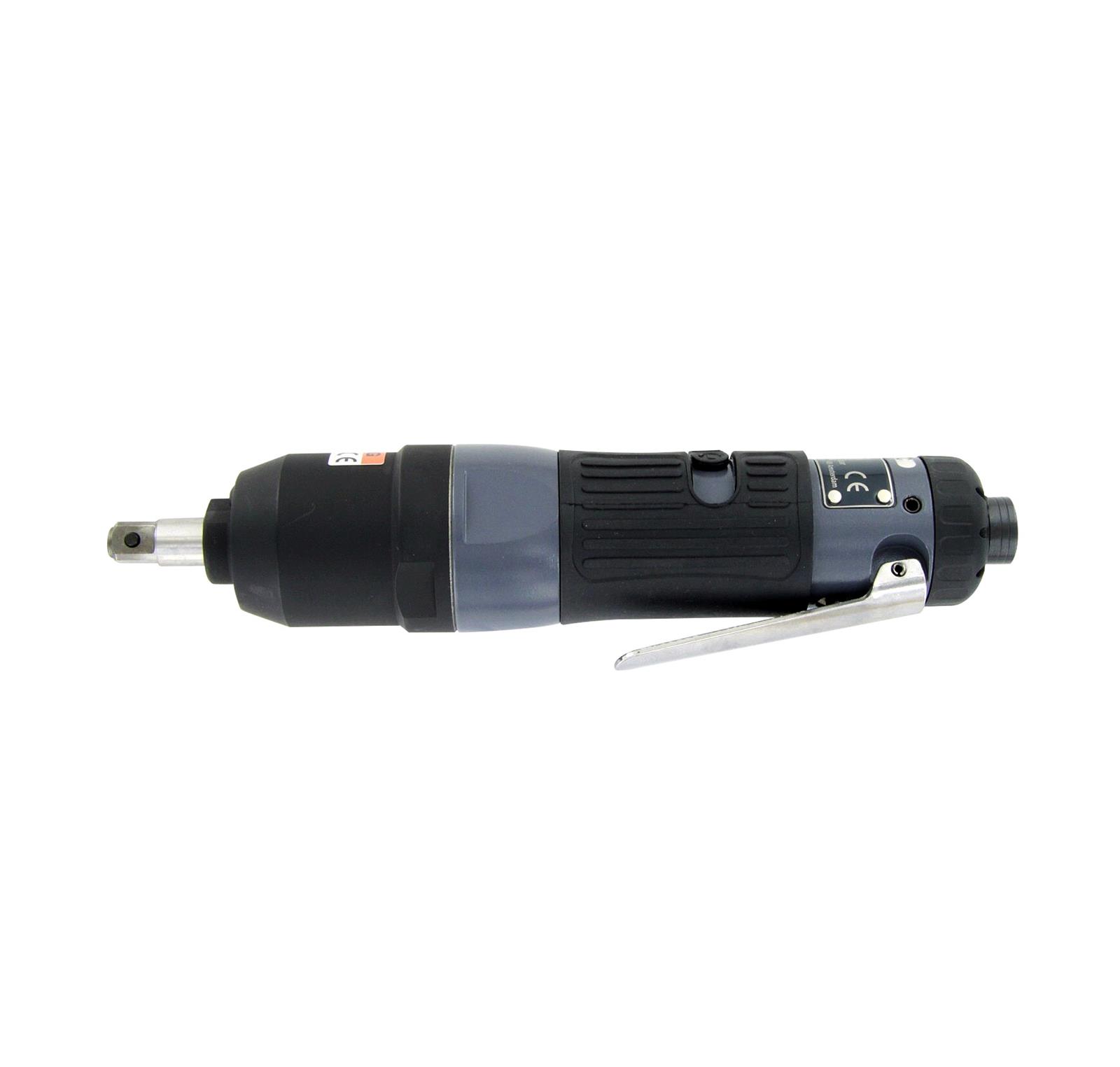

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Straight model
Related products
AC30A-F03E-B
Modular FRL Unit
HTB-0
Spring Balancer Hosereel
Related accessories
Specifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 8 - 10 |
| RPM | 6000 |
| Torque (Nm) | 22 - 35 |
| Airconsumption (l/s) | 6,2 |
| Weight (kg) | 0,86 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

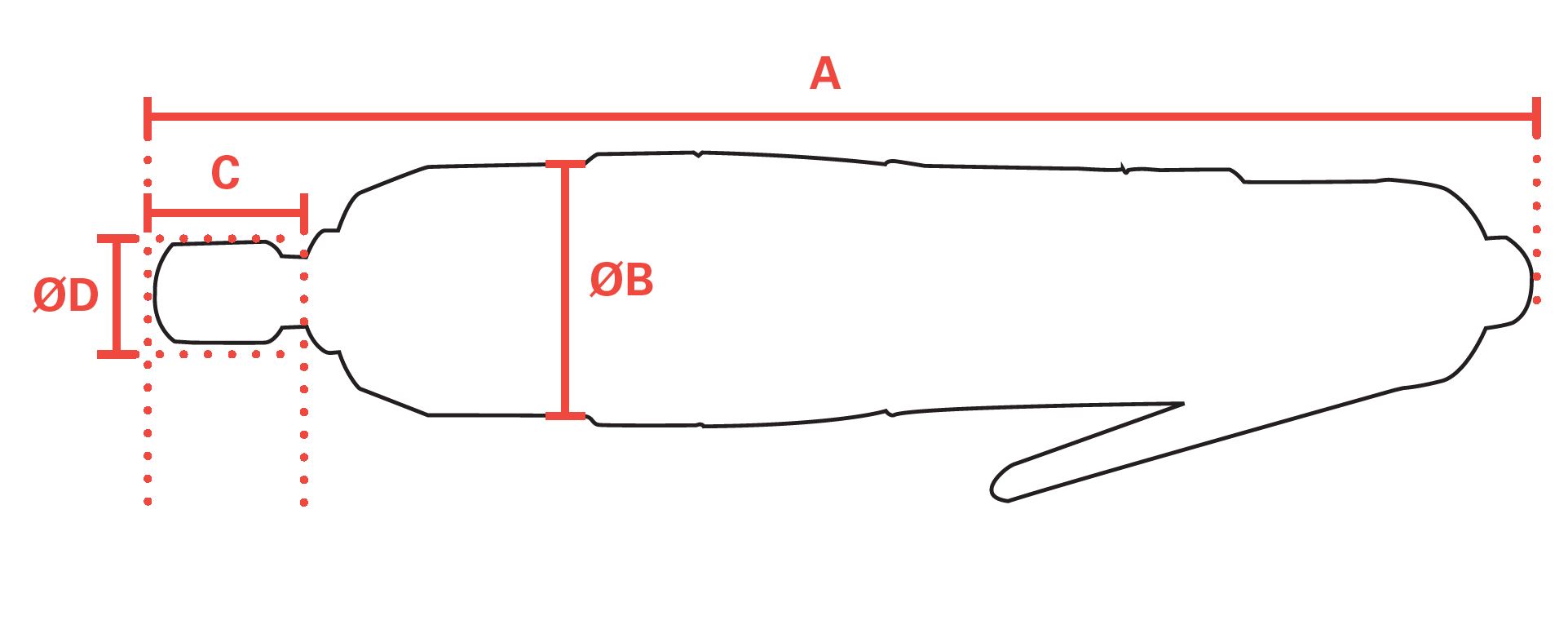

| mm A | 231 |
| mm B | 46 |
| mm C | 24 |
| mm D | 12 |
| Hosediameter (mm) | 8 |
| Square Drive / Hexagon | 3/8" |
| Safety standard | EN ISO 11148-6 |
| Formal Capacity | 22 - 35 |
| Formal Serie From | 2014.05005GB |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 4,5 |
| Vibration uncertainty (m/s²) | 0,94 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 77,9 |
| Sound uncertainty (dB(A)) | 3 |
| Product Group | Impulse Wrenches |
| Sales Group | 018 |
| UNSPSC number | 27131501 |
| Eclass number | 21061206 |
| EAN | 8717981204052 |
Manuals
| RRI-60S-FR.pdf | Download |
| RRI-60S-NL.pdf | Download |
| RRI-60S-DE.pdf | Download |
| RRI-60S-EN.pdf | Download |
| RRI-60S - QR Card.pdf | Download |
