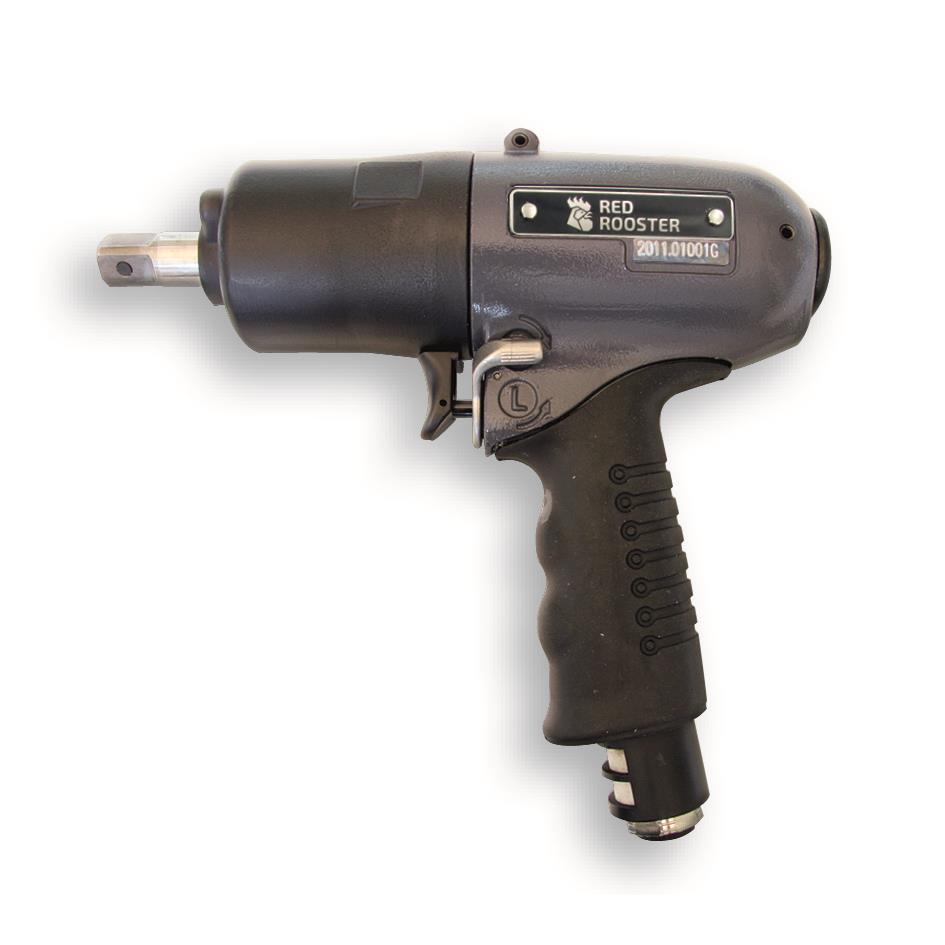

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Pistol model
Related products
TW-3
Spring balancer 1,0-3,0 kg
Related accessories
61022-TH004
Tool Holder, diameter 73mm
I130-109-A05
Protection Cover RRI-130(T)
Specifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 14 - 16 |
| RPM | 3600 |
| Torque (Nm) | 123 - 148 |
| Airconsumption (l/s) | 11,6 |
| Weight (kg) | 2,22 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

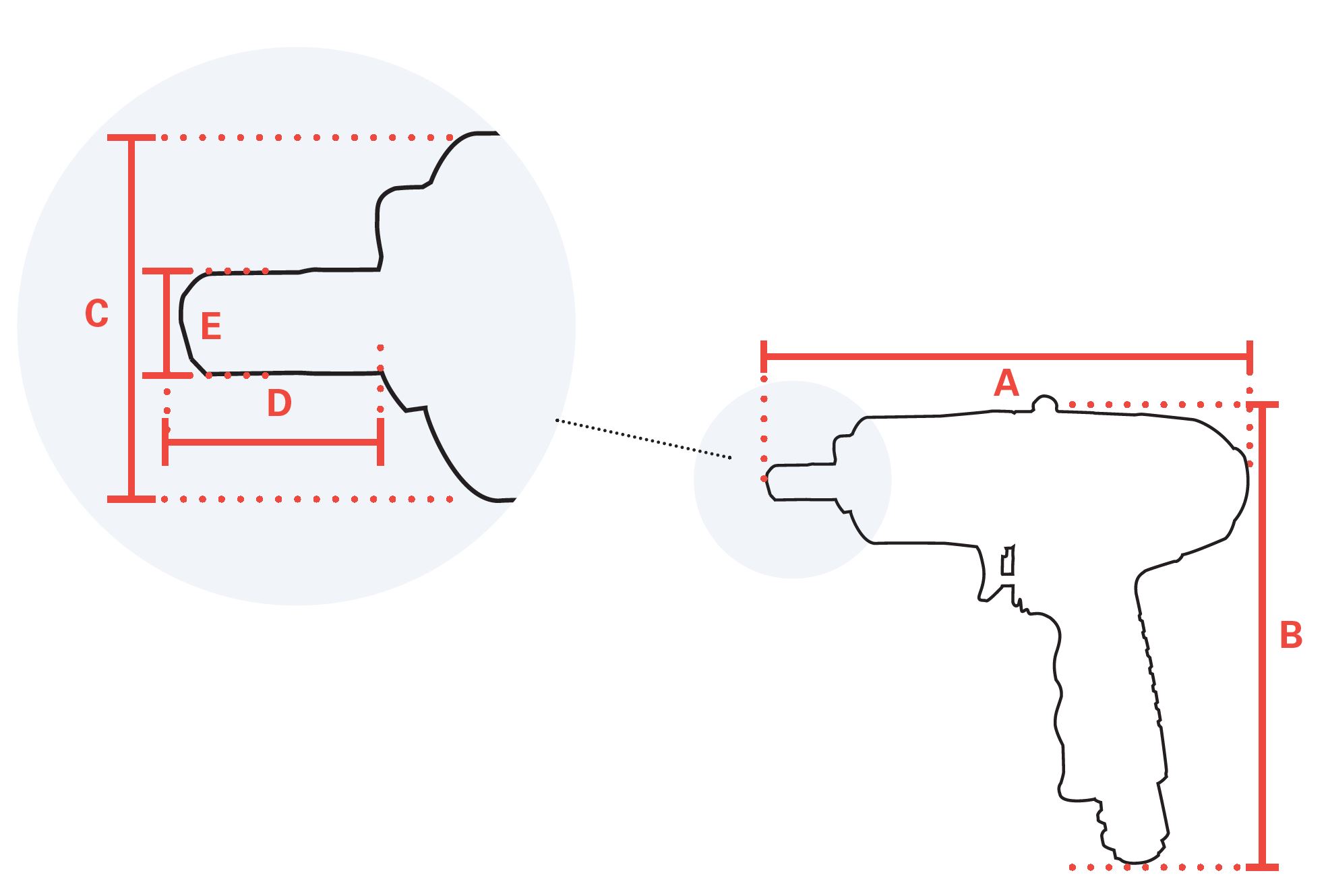

| mm A | 216 |
| mm B | 204 |
| Hosediameter (mm) | 11 |
| Square Drive / Hexagon | 1/2" |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 5,3 |
| Vibration uncertainty (m/s²) | 1,02 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 77,2 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981204014 |
Manuals
| RRI-130-DE.pdf | Download |
| RRI-130-NL.pdf | Download |
| RRI-130-FR.pdf | Download |
| RRI-130-EN.pdf | Download |
| RRI-130 - QR Card.pdf | Download |
